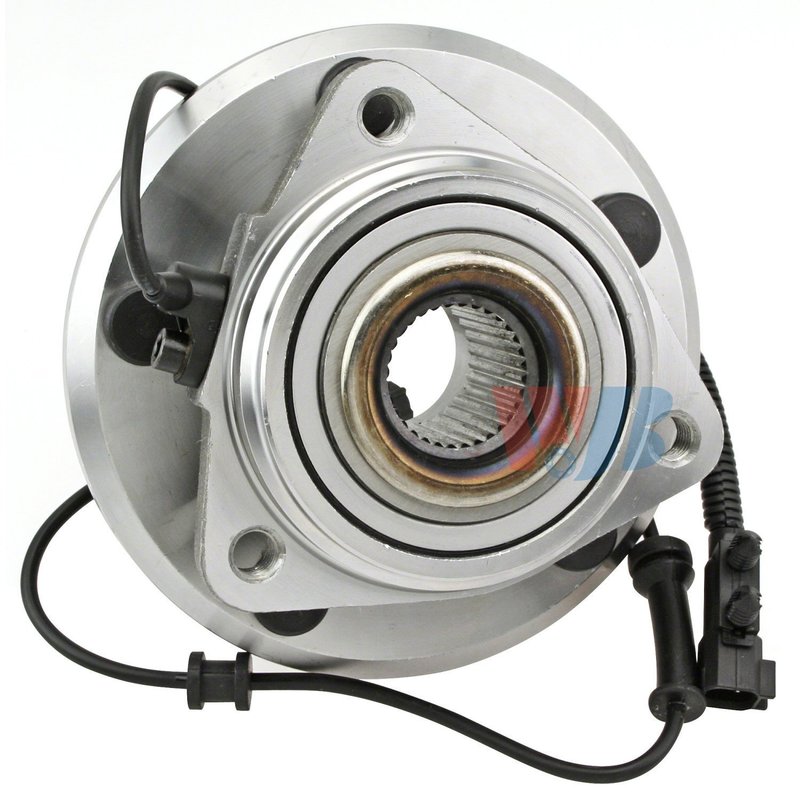

InMotion WA513272 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Wrangler

InMotion WA513272 is a front wheel bearing and hub assembly built for 2007-2010 Jeep Wrangler models. It is engineered from OE data and measurements for direct replacement fitment, with a precision-machined design that supports proper wheel mounting, braking, and sensor integration.

For Jeep Wrangler front hub replacement needs, WA513272 provides the correct hub geometry, 5-wheel-stud mounting, and integrated ABS sensor configuration for the listed applications.

Key Features

• Fits 2007-2010 Jeep Wrangler, front
• Part number: WA513272
• 32-spline hub design
• 5 wheel studs with 3 flange bolt holes
• ABS sensor included
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 71.9 mm
• Hub pilot diameter: 100.2 mm
• Bolt circle diameter: 127.0 mm (4.979 in.)
• Modified flange shape with 48.6 mm flange offset

Product Details

This InMotion wheel bearing and hub assembly is manufactured using high-precision processes and strict quality-control standards. It is designed as a direct OE-style replacement for the original front hub on the Jeep Wrangler, using the specified spline count, pilot diameters, flange dimensions, and bolt pattern to support correct wheel and brake alignment. The integrated ABS sensor helps maintain the factory-style sensor setup on the listed vehicles. Part number WA513272 is also a practical reference when ordering a front hub assembly for 2007-2010 Jeep Wrangler service work.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Part May Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light caused by a failed hub sensor assembly
• Vibration or uneven wheel mounting at the front axle
• Improper fitment from a worn or damaged original hub

Installation Notes and Tips

Verify the vehicle year, model, and front position before installation. Confirm spline count, bolt circle diameter, and pilot dimensions against the removed part to ensure correct match-up. Inspect the mating surfaces, axle interface, and brake components during service, and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support fitment, performance, and service life on the listed Jeep Wrangler applications. WA513272 is built for direct replacement use on the confirmed front fitment range.
