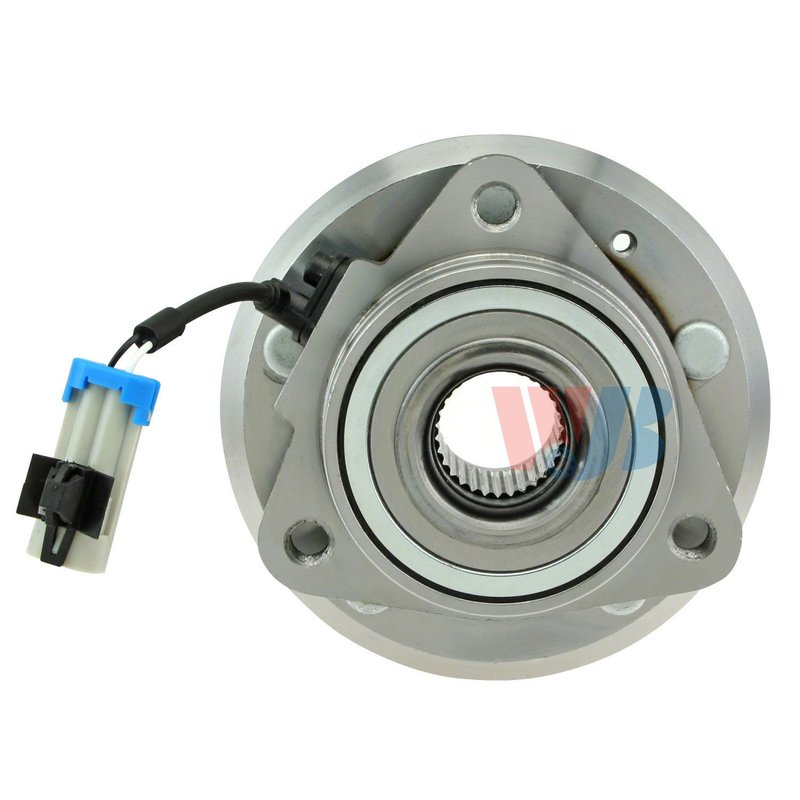

InMotion WA513276 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Select GM SUVs

InMotion WA513276 is a front wheel bearing and hub assembly built for select Chevrolet, Saturn, Pontiac, and Suzuki applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original application.

Key Features

• Front wheel bearing and hub assembly for 2007-2015 applications
• Includes anti-lock brake sensor
• 30-spline hub design
• 5 wheel studs with a 115.0 bolt circle diameter
• Modified flange shape with 3 flange bolt holes
• Hub pilot diameter: 91.3 mm
• Wheel pilot diameter: 70.1 mm
• Brake pilot diameter: 70.6 mm
• Flange offset: 42.1 mm
• Flange diameter: 151.0 mm

Detailed Description

This InMotion wheel bearing and hub assembly, part number WA513276, is manufactured for precise front-end fitment and consistent OE-style replacement performance. It is built for the front position on 2007-2009 Chevrolet Equinox, 2007-2009 Pontiac Torrent, 2007-2009 Suzuki XL-7, 2008-2010 Saturn Vue, and 2012-2015 Chevrolet Captiva Sport. The assembly uses OE-based dimensions to match the original hub geometry, stud pattern, and sensor configuration for the listed vehicles.

WA513276 is a practical choice when replacing a worn front hub on a Chevrolet Equinox, Pontiac Torrent, or Saturn Vue, especially when ABS sensor integration is required. The 30-spline hub, 5-stud layout, and 115.0 mm bolt circle support proper wheel mounting and alignment with the original brake and wheel interfaces. Part number WA513276 is also a direct search match for buyers looking for a front wheel bearing hub assembly for these specific GM platforms.

What It Helps Address

• Front wheel bearing noise or rough rotation
• Wheel play or looseness at the hub
• ABS warning light concerns tied to the hub sensor
• Uneven wheel mounting caused by worn hub components
• Restoration of proper front-end hub fitment on listed vehicles

Installation Notes

Verify the vehicle year, make, model, and front position before ordering. Confirm spline count, bolt circle diameter, and sensor configuration against the original part to ensure correct installation. Because this assembly is application-specific, compare the hub pilot, wheel pilot, and brake pilot dimensions during replacement. Professional installation is recommended for proper torque, bearing seating, and ABS system verification.

Quality Assurance

InMotion manufactures these hub assemblies with high-precision processes and strict quality-control standards. Each unit is engineered from OE data and measurements to support accurate fitment, dependable operation, and long service life in the specified applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
