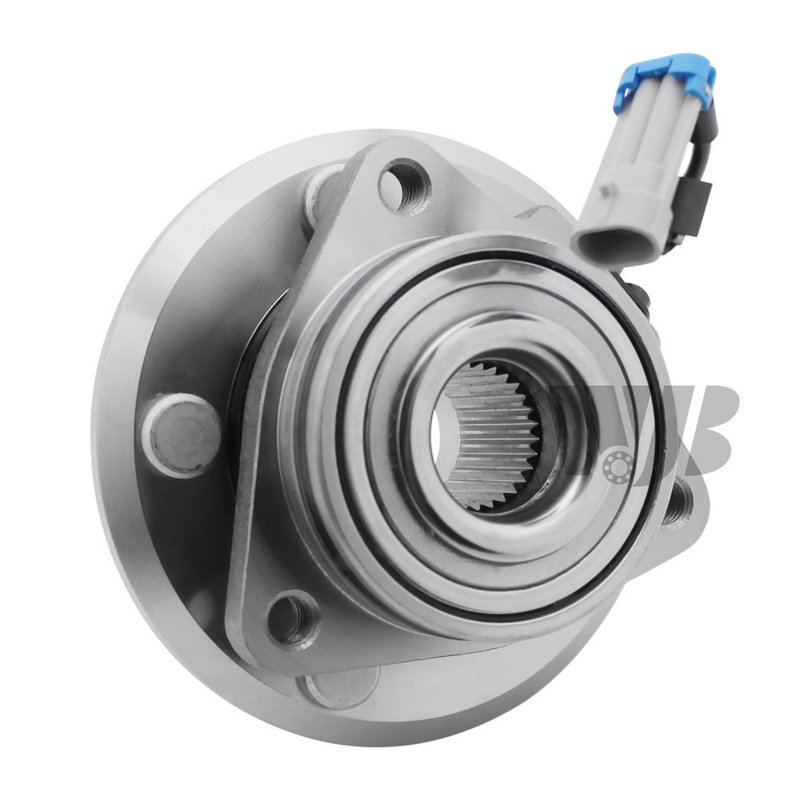

InMotion WA513276HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for GM and Suzuki

InMotion WA513276HD is a front wheel bearing and hub assembly built for direct replacement service on select Chevrolet, Pontiac, Saturn, and Suzuki vehicles. It is engineered from OE data and measurements for fitment, performance, and service life, with an integrated ABS sensor included.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Precision-manufactured using OE data and dimensional measurements
• ABS sensor included for vehicles equipped with wheel speed sensing
• 30-spline design with 5 wheel studs
• Flange bolt hole quantity: 3
• Wheel pilot diameter: 70.1 mm; brake pilot diameter: 70.6 mm
• Hub pilot diameter: 91.3 mm; flange diameter: 151.0 mm
• Bolt circle diameter: 115.0 mm / 4.5 in; flange offset: 42.1 mm
• Cross-references MOOG 513276, SKF BR930663, and Timken HA590262 for the same application

Detailed Description

InMotion WA513276HD is a front wheel bearing hub assembly designed for select 2007-2015 Chevrolet Equinox, Pontiac Torrent, Saturn Vue, Suzuki XL-7, and Chevrolet Captiva Sport applications. The assembly is manufactured with strict quality-control standards and built to match original fitment requirements, helping maintain proper wheel support, hub alignment, and ABS signal function. If you are replacing a worn front hub on a Chevrolet Equinox, Pontiac Torrent, or Saturn Vue, WA513276HD provides the OE-style dimensions and sensor integration needed for a clean service replacement.

What This Part Helps Address

• Front wheel bearing noise or roughness
• Wheel play caused by hub wear
• ABS warning light concerns related to a failed hub sensor
• Uneven hub fitment from a damaged or worn assembly
• Vibration or instability traced to front hub wear

Installation Notes and Tips

• Verify spline count, bolt circle, flange dimensions, and sensor configuration before installation.
• Confirm front-position application for the exact vehicle year and model.
• Inspect related components such as axle splines, knuckle surfaces, and brake hardware during replacement.
• Use proper torque procedures for wheel studs and mounting fasteners.
• After installation, clear ABS codes and confirm wheel speed sensor operation.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control criteria. WA513276HD is engineered from OE data to support correct fitment and long-term service in the specified front-wheel applications.

Compatible Vehicles

• Fits 2012-2015 Chevrolet Captiva Sport, front
• Fits 2008-2010 Saturn Vue, front
• Fits 2007-2009 Chevrolet Equinox, front
• Fits 2007-2009 Pontiac Torrent, front
• Fits 2007-2009 Suzuki XL-7, front
