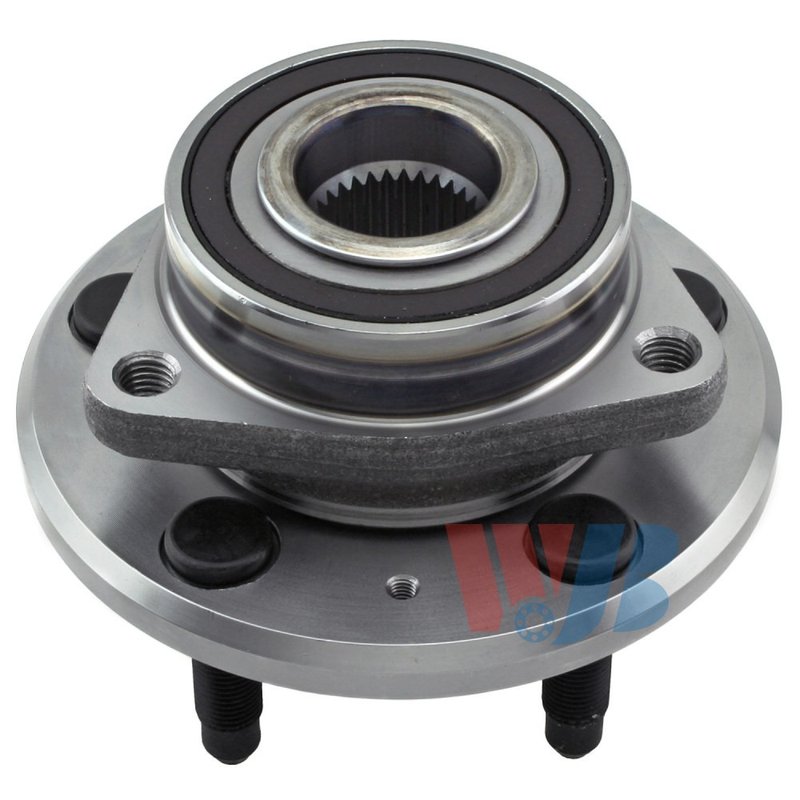

InMotion WA513281 Wheel Bearing and Hub Assembly - Front or Rear

OE-Style Wheel Hub Assembly

InMotion WA513281 is a wheel bearing and hub assembly built for direct replacement on select Cadillac CTS and Chevrolet Camaro applications. It is engineered from OE data and measurements to support proper fitment, stable wheel mounting, and long service life.

This hub assembly includes an integrated ABS sensor and is manufactured with precision controls to match the original application requirements.

Key Features

• Wheel bearing and hub assembly for driveline and axle service
• Direct replacement design based on OE data and measurements
• Integrated anti-lock brake sensor included
• 5 wheel studs with 120.0 bolt circle diameter
• 33-spline hub design
• Flange diameter: 157.0; flange offset: 42.29
• Wheel pilot diameter: 66.5; brake pilot diameter: 67.3; hub pilot diameter: 91.3
• 3 flange bolt holes for application-specific mounting

Detailed Description

InMotion WA513281 is a precision-built wheel hub assembly for front and rear service on select Cadillac CTS and Chevrolet Camaro models. It is made to the original application dimensions so the hub, bearing, studs, and ABS sensor interface align with the vehicle’s OE requirements. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible With: Fits 2009-2014 Cadillac CTS, front; Fits 2011, 2013, 2015 Cadillac CTS, rear; Fits 2012, 2015 Chevrolet Camaro, front; Fits 2013-2014 Chevrolet Camaro, rear.

Common Repair Symptoms

• Wheel bearing noise or humming from the hub area
• ABS warning light caused by a failed hub sensor
• Wheel looseness or uneven hub play
• Vibration or rough rotation at the wheel end
• Improper wheel mounting from worn hub components

Installation Notes

Verify position, spline count, bolt circle diameter, and sensor configuration before installation. Clean the mounting surface, inspect the knuckle and axle interface, and torque fasteners to the vehicle manufacturer’s specification. Confirm ABS operation after installation and clear any stored fault codes if needed.

Quality Assurance

InMotion manufactures this hub assembly with strict quality-control criteria to support consistent fit and performance. Each unit is built for the designated application using OE-based measurements for dimensional accuracy and durability.
