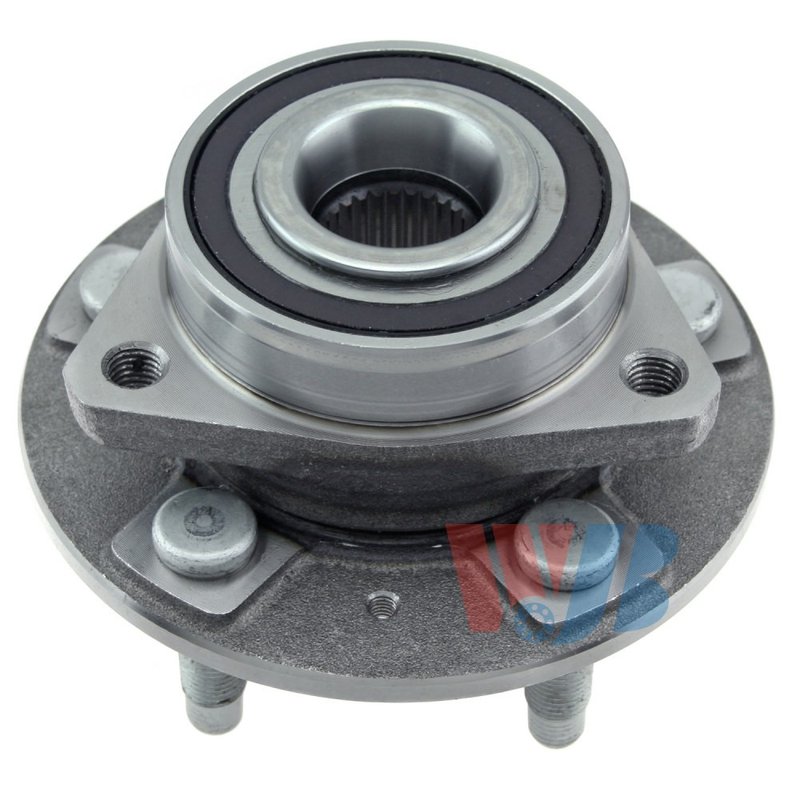

InMotion WA513282 Wheel Bearing and Hub Assembly - Front or Rear

OE-Style Wheel Hub Assembly for CTS, Camaro, Impala, and XTS

InMotion WA513282 is a wheel bearing and hub assembly built for direct replacement service on select Cadillac, Chevrolet, and GM applications. It is engineered from OE data and measurements for accurate fitment, stable performance, and long service life.

With a 30-spline design, 5 wheel studs, integrated ABS sensor, and a modified flange shape, this hub assembly is built to match the original mounting and sensor requirements for the listed front and rear positions.

Key Features

• Part number WA513282
• Wheel bearing and hub assembly for driveline and axle service
• 30 spline quantity
• 5 wheel studs with 3 flange bolt holes
• Integrated anti-lock brake sensor included
• Modified flange shape with 42.0 flange offset
• Flange diameter: 157.1 mm
• Bolt circle diameter: 120.0 mm (4.729 in.)
• Wheel pilot diameter: 66.9 mm
• Brake pilot diameter: 67.4 mm
• Hub pilot diameter: 91.2 mm

Detailed Description

InMotion WA513282 is manufactured with strict quality-control standards and precision machining to support proper wheel mounting and sensor operation. It is a direct replacement hub assembly for select Cadillac CTS, Cadillac XTS, Chevrolet Camaro, and Chevrolet Impala vehicles, with fitment covering both front and rear positions depending on application. This part number WA513282 is built for vehicles that require the specified spline count, bolt pattern, pilot diameters, and ABS sensor integration.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2019 Cadillac CTS, front, Standard Grade
• Fits 2012-2014 Cadillac CTS, front, Standard Grade
• Fits 2010 Cadillac CTS, front, Standard Grade
• Fits 2019 Cadillac XTS, rear, Standard Grade
• Fits 2018-2019 Chevrolet Impala, rear, Standard Grade
• Fits 2018 Cadillac CTS, rear, Standard Grade
• Fits 2011 Cadillac CTS, rear, Standard Grade
• Fits 2008-2009 Cadillac CTS, rear, Standard Grade
• Fits 2018 Cadillac XTS, front, Standard Grade
• Fits 2013-2015 Chevrolet Camaro, front, Standard Grade
• Fits 2010 Chevrolet Camaro, front, Standard Grade
• Fits 2011-2012 Chevrolet Camaro, rear, Standard Grade

What It Helps Address

• Wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor
• Wheel looseness from worn hub components
• Improper wheel mounting due to damaged pilot surfaces
• Vibration or instability related to hub wear

Installation Notes and Tips

Confirm the vehicle position, spline count, bolt circle diameter, and pilot dimensions before installation. Because this assembly includes an ABS sensor, inspect the connector and wiring path during replacement to avoid sensor-related faults. Always verify the listed application against the vehicle’s trim and brake configuration before ordering.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fit and function across the listed applications.
