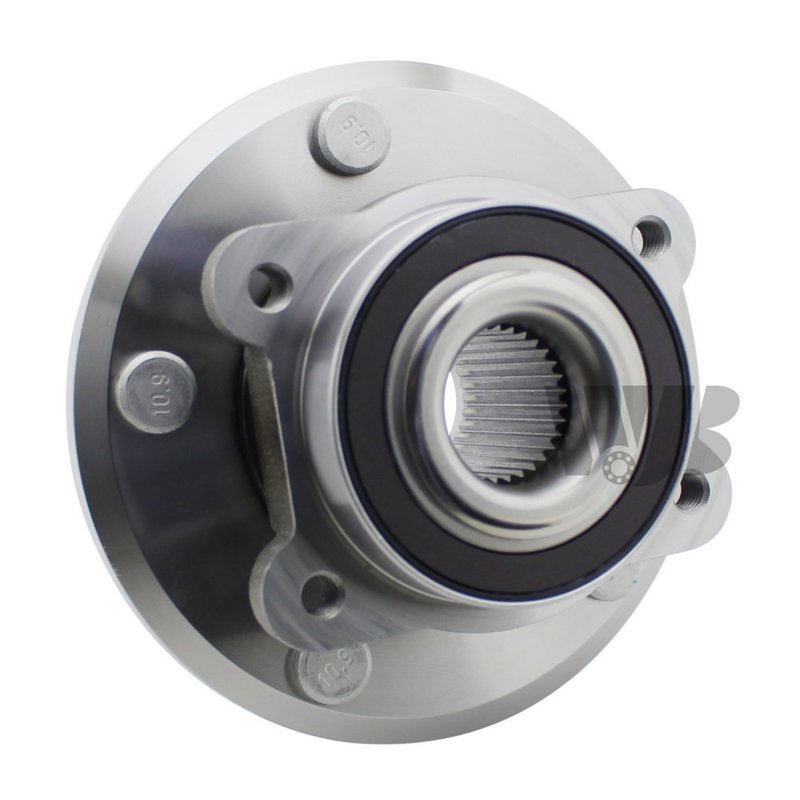

InMotion WA513286HD Wheel Bearing and Hub Assembly - Front
OE Quality 60-Day Returns
InMotion

InMotion WA513286HD Wheel Bearing and Hub Assembly - Front

Brand InMotion WA513286HD
Position Front
Spline Quantity 32
Hub Pilot Diameter 2.85
Hub Pilot Diameter 72.45
Flange Shape Circle
Anti Lock Brake Sensor Included No
Bearing Type Ball
Flange Offset 1.91
Flange Offset 48.5
Flange Diameter 161.5
Flange Diameter 6.36
Abs Ring Type Magnetic encoder
Driven Or Non-driven Driven
Flange Bolt Size (in) 0.47
Flange Bolt Size (mm) 12
Flange Bolt Thread Size M12-1.5
Hub Centerbore Diameter (in) 5
Hub Centerbore Diameter (mm) 127
Lug Bolt Thread Size M10-1.5
New Or Remanufactured New
Number Of Abs Sensor Ring Teeth 86
Number Of Flange Bolts Included 5
Number Of Lug Bolts Included 0
Number Of Mounting Bolts To Knuckle 4
Wiring Harness Included No
Fits Dodge · 12 vehicles

Cross-references MOOG Hub Assemblies 513286, SKF BR930700 and Timken HA590344 for the same application. See all 7.

$93.17Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $93.17
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options
InMotion WA513286HD Wheel Bearing and Hub Assembly - Front

Related reading

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2020DodgeJourneyFrontPremium Grade
2019DodgeJourneyFrontPremium Grade
2018DodgeJourneyFrontPremium Grade
2017DodgeJourneyFrontPremium Grade
2016DodgeJourneyFrontPremium Grade
2015DodgeJourneyFrontPremium Grade
2014DodgeJourneyFrontPremium Grade
2013DodgeJourneyFrontPremium Grade
2012DodgeJourneyFrontPremium Grade
2011DodgeJourneyFrontPremium Grade
2010DodgeJourneyFrontPremium Grade
2009DodgeJourneyFrontPremium Grade
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Hub Assemblies — 513286SKF — BR930700Timken — HA5903444721010AA4721010AB4721010AC68184748AA
