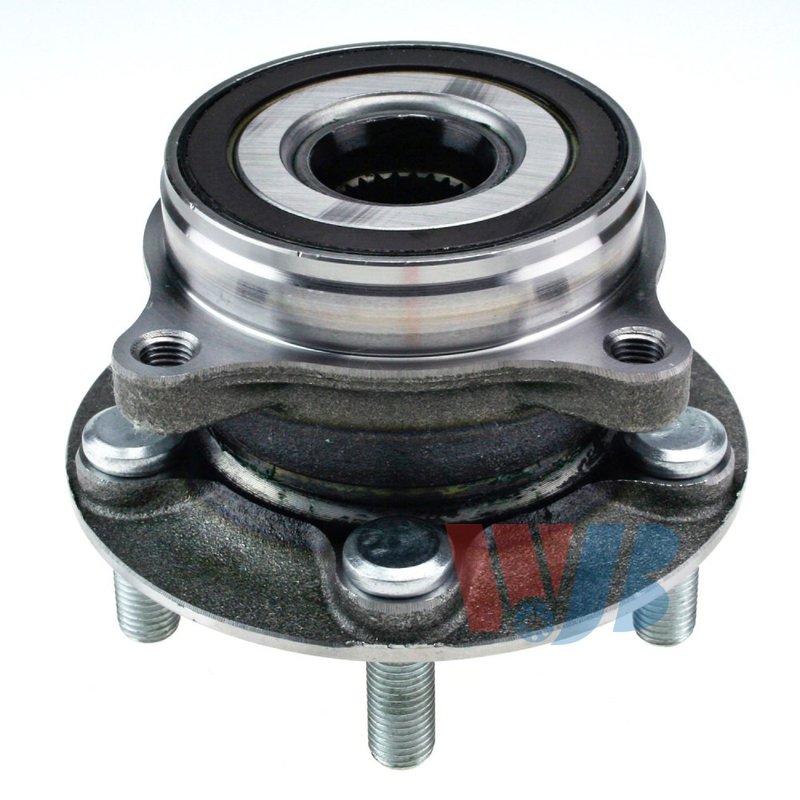

InMotion WA513287 Wheel Bearing and Hub Assembly - Front

OE-Style Front Wheel Hub Assembly

InMotion WA513287 is a front wheel bearing and hub assembly engineered for direct replacement service on select Toyota and Lexus applications. Built from OE data and measurements, it is designed for accurate fitment, stable wheel mounting, and long service life in daily driving conditions.

Compatible with 2010-2015 Toyota Prius, 2012-2015 Toyota Prius Plug-In, and 2011-2017 Lexus CT200h, front standard grade applications.

Key Features

• Part number WA513287 front wheel bearing and hub assembly
• 26-spline hub design
• 5 wheel studs with a 100.0 mm bolt circle diameter
• 4 flange bolt holes for secure mounting
• ABS sensor included
• Hub pilot diameter: 84.0 mm
• Wheel pilot diameter: 54.0 mm
• Brake pilot diameter: 55.0 mm
• Flange diameter: 125.0 mm with 47.0 mm flange offset

Detailed Description

This InMotion wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards to match the original part’s dimensions and function. The assembly is engineered for the front position and uses OE data to support proper wheel alignment, hub seating, and ABS system integration. For shoppers searching for a Toyota Prius front wheel hub assembly, Lexus CT200h front hub bearing, or a Toyota Prius Plug-In replacement hub, WA513287 provides the application-specific design needed for a direct replacement service part.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to hub-mounted sensor function
• Uneven wheel mounting caused by damaged studs or hub surfaces
• Vibration or roughness from a failing front wheel bearing

Installation Notes and Tips

Confirm the vehicle’s front application, spline count, bolt pattern, and pilot diameters before installation. Inspect the knuckle, axle interface, and mating surfaces for wear or corrosion, and verify ABS connector routing and sensor alignment during replacement. Proper torque procedures should be followed for the wheel studs and mounting fasteners to maintain hub integrity.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fitment and durability. WA513287 is built as a direct replacement wheel bearing and hub assembly for the listed Toyota Prius, Toyota Prius Plug-In, and Lexus CT200h front applications.
