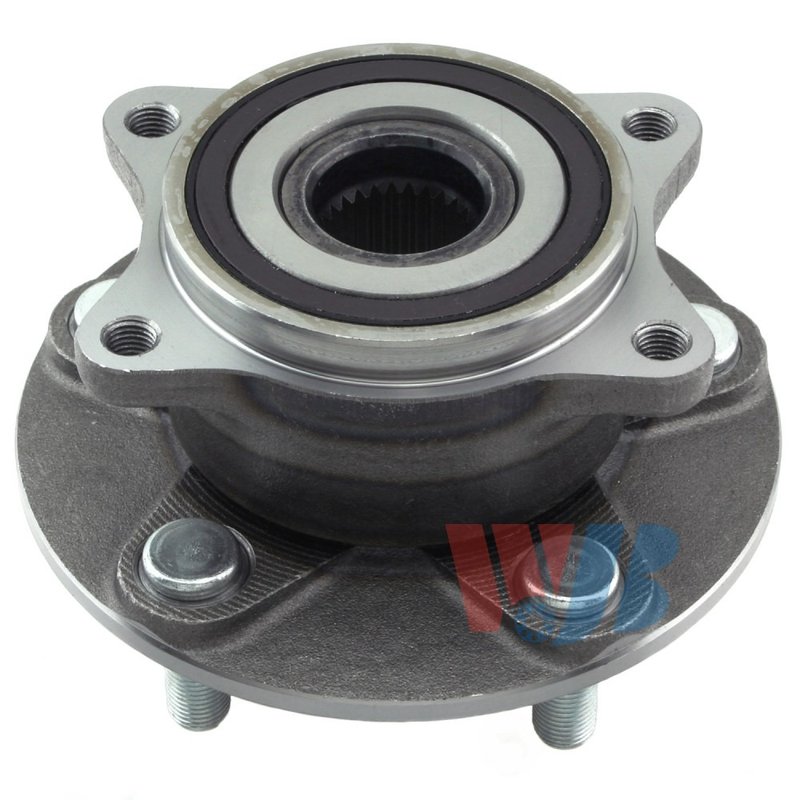

InMotion WA513290 Wheel Bearing and Hub Assembly - Front or Rear

InMotion WA513290 Wheel Hub Assembly

The InMotion WA513290 is a wheel bearing and hub assembly built for direct replacement service on select Suzuki Grand Vitara applications. It is engineered from OE data and measurements to support proper fitment, consistent performance, and long service life.

Use this hub assembly when you need a precise replacement for front or rear service on the Suzuki Grand Vitara. The WA513290 is built with application-specific dimensions and hub specifications for a straightforward repair.

Key Features

• Direct replacement wheel bearing and hub assembly
• Engineered using OE data and measurements
• High-precision manufacturing with strict quality control
• 28-spline design
• 5 wheel studs
• 4 flange bolt holes
• 84.0 mm hub pilot diameter
• 114.3 mm bolt circle diameter
• ABS sensor not included

Fitment Details

• Fits 2006 Suzuki Grand Vitara, rear, Standard Grade
• Fits 2007 Suzuki Grand Vitara, front, Standard Grade
• Fits 2008-2010 Suzuki Grand Vitara, rear, Standard Grade
• Fits 2011-2012 Suzuki Grand Vitara, front, Standard Grade
• Fits 2013 Suzuki Grand Vitara, rear, Standard Grade

For buyers searching for a Suzuki Grand Vitara wheel hub assembly, Suzuki Grand Vitara rear hub replacement, or Suzuki Grand Vitara front wheel bearing and hub assembly, WA513290 provides the specified application match. This part number, WA513290, is listed for both front and rear positions depending on model year.

What It Helps Address

• Wheel bearing noise from a worn hub assembly
• Excessive wheel play or looseness at the hub
• Uneven wheel rotation caused by hub wear
• Vibration or roughness from a failing bearing unit
• Hub replacement needs during brake or suspension service

Installation Notes

Confirm the vehicle year, position, and standard grade application before installation. Verify spline count, bolt circle diameter, hub pilot diameter, and wheel stud count against the original part. Because the ABS sensor is not included, reuse or transfer the existing sensor setup if the vehicle requires one.

Quality Assurance

InMotion manufactures this hub assembly with strict quality-control criteria and OE-based engineering to support accurate fitment and dependable service. The WA513290 is produced as a direct replacement part for the listed Suzuki Grand Vitara applications.
