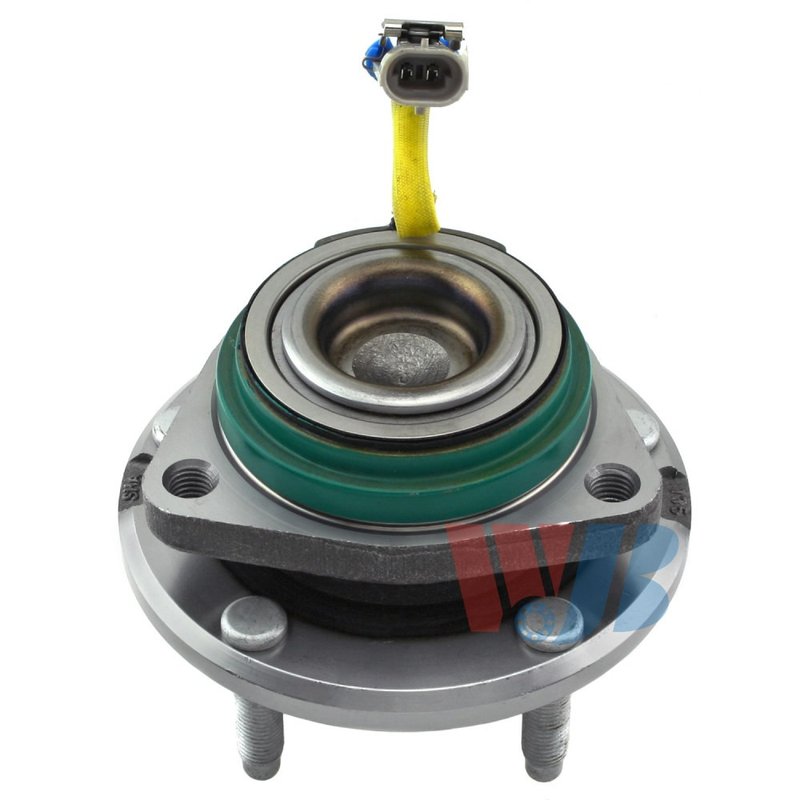

InMotion WA513291 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Corvette and XLR

The InMotion WA513291 is a front wheel bearing and hub assembly built for precise OE-style replacement on select Chevrolet Corvette and Cadillac XLR applications. It is engineered from OE data and measurements to support correct fitment, stable wheel mounting, and long service life.

For front-end service on a 2009-2013 Chevrolet Corvette or a 2009 Cadillac XLR, this hub assembly provides the bearing, hub, and ABS sensor integration needed for a direct replacement. The WA513291 is built to match the specified application dimensions and mounting geometry.

Key Features

• Front wheel bearing and hub assembly for select Chevrolet Corvette and Cadillac XLR models
• Includes ABS sensor
• 5 wheel studs for wheel attachment
• 3 flange bolt holes for mounting
• Wheel pilot diameter: 70.1 mm
• Brake pilot diameter: 70.8 mm
• Hub pilot diameter: 91.3 mm
• Flange diameter: 145.5 mm
• Bolt circle diameter: 120.7 mm
• Flange offset: 42.0 mm

Detailed Description

InMotion WA513291 is manufactured as a front wheel bearing and hub assembly using high-precision processes and strict quality-control standards. It is designed as a direct replacement for the original front hub on 2009-2013 Chevrolet Corvette and 2009 Cadillac XLR vehicles, with OE-based dimensions to help maintain proper wheel location, sensor function, and hub alignment. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Front wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness or hub play at the front axle
• Improper wheel mounting from worn hub components
• Vibration or instability related to hub wear

Installation Notes and Tips

Verify front fitment by year, make, and model before installation. Confirm the bolt circle diameter, flange offset, and pilot diameters match the original hub assembly on the vehicle. Because this assembly includes an ABS sensor, inspect the connector and wiring condition during service and clear diagnostic codes after installation if required.

Fits 2009-2013 Chevrolet Corvette, front. Fits 2009 Cadillac XLR, front.

Quality Assurance

InMotion manufactures this hub assembly with OE data, precise measurements, and controlled production standards to support consistent fitment and performance on the specified applications.
