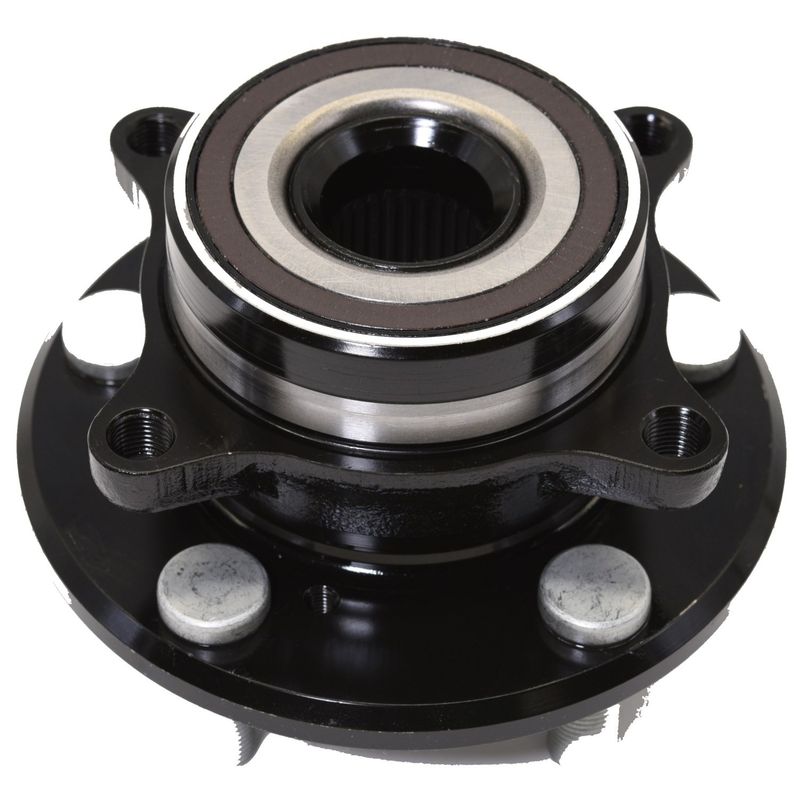

InMotion WA513293HD Wheel Bearing and Hub Assembly - Front
| Brand | InMotion WA513293HD |
|---|---|
| Position | Front |
| Spline Quantity | 30 |
| Hub Pilot Diameter | 2.76 |
| Hub Pilot Diameter | 70.099999999999994 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | No |
| Bearing Type | Ball |
| Flange Offset | 1.86 |
| Flange Offset | 47.2 |
| Flange Diameter | 151.80000000000001 |
| Flange Diameter | 5.98 |
| Abs Ring Type | Magnetic encoder |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | 0.55000000000000004 |
| Flange Bolt Size (mm) | 14 |
| Flange Bolt Thread Size | M14-1.5 |
| Hub Centerbore Diameter (in) | 4.72 |
| Hub Centerbore Diameter (mm) | 120 |
| Lug Bolt Thread Size | M12-1.25 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 96 |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 0 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Wiring Harness Included | No |
| Fits | Honda · 7 vehicles |
OE-based fitment. Engineered from OE data and measurements for application-specific accuracy.
Ball bearing design. Built for smooth hub operation and consistent wheel support.
Magnetic encoder ring. Integrated ABS encoder with 96 teeth for sensor signal compatibility.
Cross-references MOOG Hub Assemblies 513293, Timken HA590433 and 44300TK8A01 for the same application. See all 4.
Wheel Bearing Hub Assembly for Honda Odyssey
This InMotion wheel bearing and hub assembly is built for direct replacement use on select Honda Odyssey applications. It combines OE-based engineering with precise manufacturing to support proper fit, smooth wheel rotation, and long service life.
Key Features
- Direct replacement wheel bearing and hub assembly for driven applications
- Ball bearing design for consistent hub operation
- Magnetic encoder ABS ring with 96 teeth
- New construction manufactured to strict quality-control standards
- OE data and measurements used for fitment and performance
Detailed Description
InMotion part number WA513293HD is a wheel bearing and hub assembly engineered for select 2011-2017 Honda Odyssey front applications. It is designed around OE data and measurements to match the original fit and operating characteristics of the factory part. The assembly uses a ball bearing design, a magnetic encoder ABS ring, and a 30-spline driven configuration to support the vehicle’s hub and wheel interface. WA513293HD is a practical replacement choice for Honda Odyssey owners looking for a new hub assembly built to application-specific dimensions.
This part cross-references MOOG Hub Assemblies (e.g., 513293) and Timken (e.g., HA590433) for the same application.
Common Issues It May Solve
- Wheel bearing noise or rough hub operation
- ABS warning concerns related to the encoder ring
- Excessive hub play or looseness at the wheel end
- Fitment problems caused by worn original hub components
Installation Notes and Tips
Fits 2011-2017 Honda Odyssey, front. Verify spline count, flange dimensions, bolt thread sizes, and ABS encoder style before installation. Confirm the mounting pattern and hub measurements against the original part number WA513293HD to ensure correct application matching.
Quality Assurance
Manufactured with strict quality-control criteria and built using OE data and measurements for application-specific fitment, performance, and longevity.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Honda | Odyssey | Front | Premium Grade |
| 2016 | Honda | Odyssey | Front | Premium Grade |
| 2015 | Honda | Odyssey | Front | Premium Grade |
| 2014 | Honda | Odyssey | Front | Premium Grade |
| 2013 | Honda | Odyssey | Front | Premium Grade |
| 2012 | Honda | Odyssey | Front | Premium Grade |
| 2011 | Honda | Odyssey | Front | Premium Grade |
