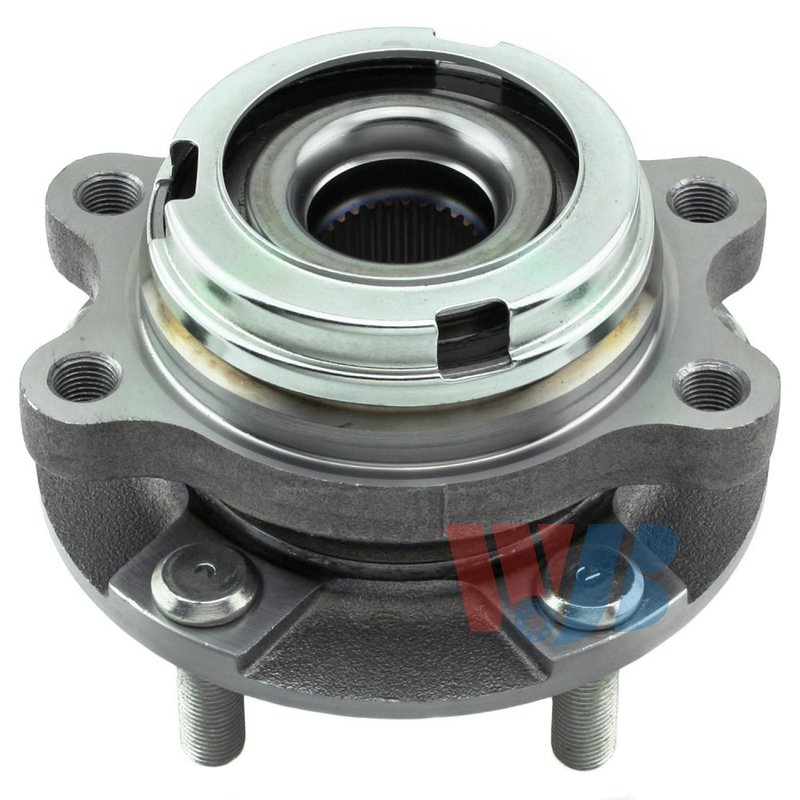

InMotion WA513294HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Altima

InMotion WA513294HD is a front wheel bearing and hub assembly built for 2007-2012 Nissan Altima models. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and controlled quality standards for consistent wheel-end performance.

• Fits 2007-2012 Nissan Altima, front
• Driven hub assembly with 29 splines
• Ball bearing design for wheel-end support
• Magnetic encoder ABS ring with 96 teeth
• 5-bolt flange with M12-1.25 thread size
• Hub pilot diameter: 67.95 mm (2.68 in)
• Flange diameter: 136 mm (5.35 in)
• Flange offset: 40.8 mm (1.61 in)
• New part, not remanufactured

OE-Style Replacement Details

This InMotion wheel bearing and hub assembly, part number WA513294HD, is designed for the front position on the Nissan Altima and follows OE dimensions for fitment and function. The assembly includes a magnetic encoder ring and a cover-style ABS connector shape, while the ABS sensor itself is not included. It cross-references MOOG 513294 and SKF BR930655 for the same application.

Common Problems It Can Address

• Wheel bearing noise from the front hub area
• Excessive wheel play or looseness
• ABS warning light caused by encoder-related hub wear
• Uneven wheel-end rotation or vibration
• Hub fitment issues after wear or corrosion

Installation Notes

Confirm front-position fitment before installation on 2007-2012 Nissan Altima models. Verify spline count, flange bolt pattern, hub pilot diameter, and M12-1.25 thread specifications against the original assembly. The ABS sensor is not included, and no wiring harness is included, so reuse or source related components as needed based on the vehicle configuration.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and strict quality-control criteria to support proper fitment and service life. Part number WA513294HD is built as a direct replacement wheel bearing and hub assembly for the specified Nissan Altima front application.
