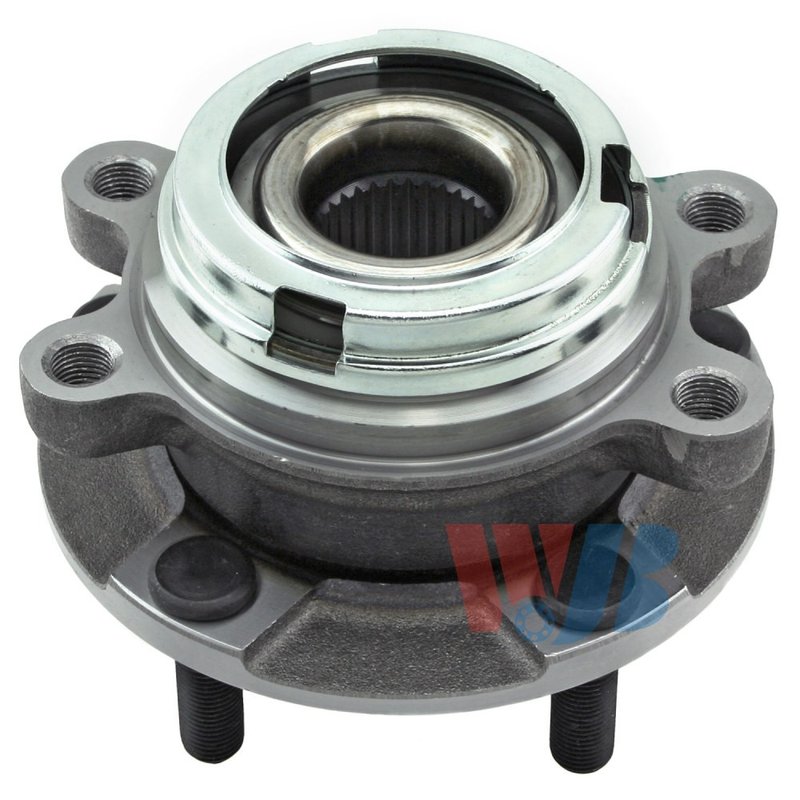

InMotion WA513296 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Nissan and INFINITI

The InMotion WA513296 is a front wheel bearing and hub assembly built for select Nissan and INFINITI applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and strict quality control for consistent wheel support, braking alignment, and sensor integration.

Compatible With 2007-2018 Nissan Altima, front; 2009-2014 Nissan Maxima, front; 2016-2021 Nissan Maxima, front; 2013-2020 Nissan Pathfinder, front; 2015-2018 Nissan Murano, front; 2014-2020 INFINITI QX60, front; 2019-2021 INFINITI QX50, front; and 2013 INFINITI JX35, front.

Key Features

• Part number WA513296 front wheel bearing and hub assembly
• OE-data-based design for direct replacement fitment
• 32-spline hub configuration
• 5 wheel studs with 4 flange bolt holes
• ABS sensor included
• Modified flange shape with 40.7 flange offset
• 136.0 mm flange diameter and 114.3 mm bolt circle diameter
• Wheel pilot diameter: 66.0 mm
• Brake pilot diameter: 68.0 mm
• Hub pilot diameter: 93.0 mm

Detailed Description

InMotion WA513296 is a front hub assembly designed for vehicles that require a precise OE-style wheel bearing and hub replacement. The assembly is manufactured to match designated applications using OE measurements, helping maintain proper wheel mounting, brake interface dimensions, and ABS sensor function. It is a direct replacement for the original part on select Nissan Maxima, Altima, Pathfinder, Murano, and INFINITI QX60, QX50, and JX35 models.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or growling from the hub area
• Excessive wheel play or looseness at the front axle
• ABS warning light caused by a failed hub sensor assembly
• Uneven rotor seating or vibration related to hub wear
• Improper wheel mounting due to damaged hub or stud components

Installation Notes and Tips

Verify the vehicle year, make, model, and front position before ordering. Confirm the 32-spline configuration, 5-stud pattern, 114.3 mm bolt circle diameter, and ABS sensor requirement against the original hub assembly. Because this is a precision driveline and axle component, proper torque procedures and clean mating surfaces are important during installation.

Quality Assurance

Each WA513296 hub assembly is produced with strict quality-control criteria and built to match the intended application using OE data and measurements. That approach supports fitment accuracy, performance consistency, and service life across the listed Nissan and INFINITI front-wheel applications.
