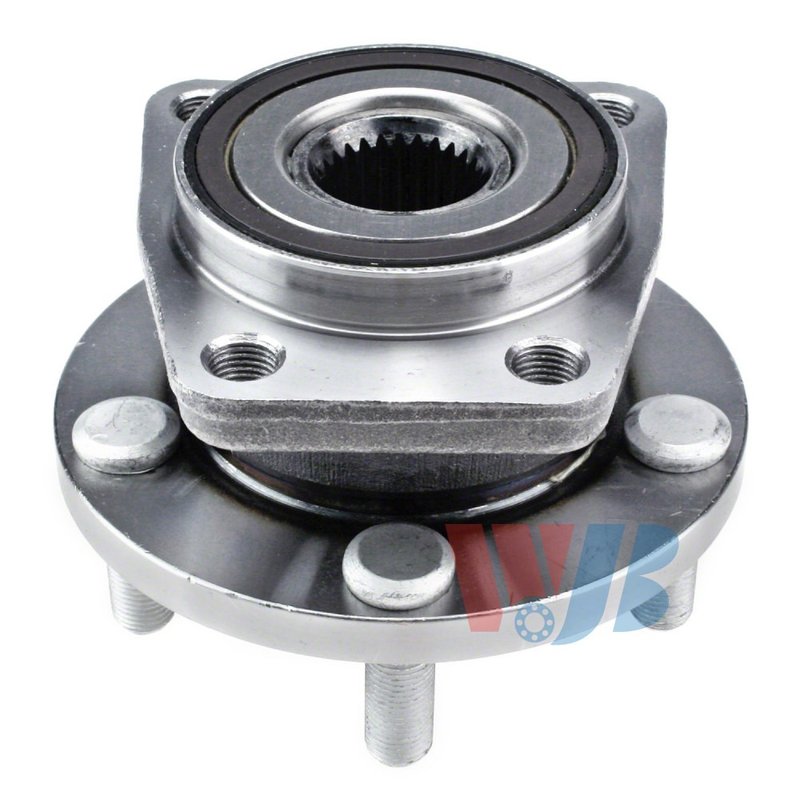

InMotion WA513303 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Subaru

The InMotion WA513303 is a front wheel bearing and hub assembly built for direct replacement use on select Subaru applications. It is engineered from OE data and measurements for fitment, performance, and service life, with precision manufacturing and quality-control standards applied throughout production.

Key Features

• Front wheel bearing and hub assembly for driveline and axle service
• Direct replacement design for the original hub assembly
• OE-data-based dimensions for accurate fitment
• 27-spline configuration
• 5 wheel studs and 4 flange bolt holes
• Integrated ABS sensor included
• Modified flange shape with 49.0 flange offset
• Hub pilot diameter: 76.0 mm
• Wheel pilot diameter: 56.0 mm
• Brake pilot diameter: 58.0 mm
• Bolt circle diameter: 100.0 mm / 3.937 in.

Detailed Description

InMotion WA513303 is a front wheel hub assembly designed for Subaru Forester, Subaru Impreza, Subaru WRX, and Subaru XV Crosstrek models listed below. It uses OE-based measurements to match the original mounting points and hub geometry, helping maintain proper wheel location and sensor integration. The assembly includes an ABS sensor and is built with strict dimensional control for consistent service replacement.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2009-2014 Subaru Forester, front, Standard Grade
• Fits 2008-2014 Subaru Impreza, front, Standard Grade
• Fits 2013-2014 Subaru WRX, front, Standard Grade
• Fits 2013-2014 Subaru XV Crosstrek, front, Standard Grade

Common Replacement Reasons

• Front wheel bearing noise or rough rotation
• ABS warning light caused by hub sensor issues
• Wheel play or looseness at the hub
• Uneven wheel mounting or hub wear
• Restoring proper front-end driveline support

Installation Notes

Confirm the vehicle’s front application, spline count, bolt circle, and ABS sensor configuration before installation. Clean the mounting surface, inspect related suspension and brake components, and torque fasteners to the vehicle manufacturer’s specifications. Verify sensor connection and wheel rotation after installation.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is engineered from OE data and measurements to support correct fitment and long-term service on the specified Subaru applications.
