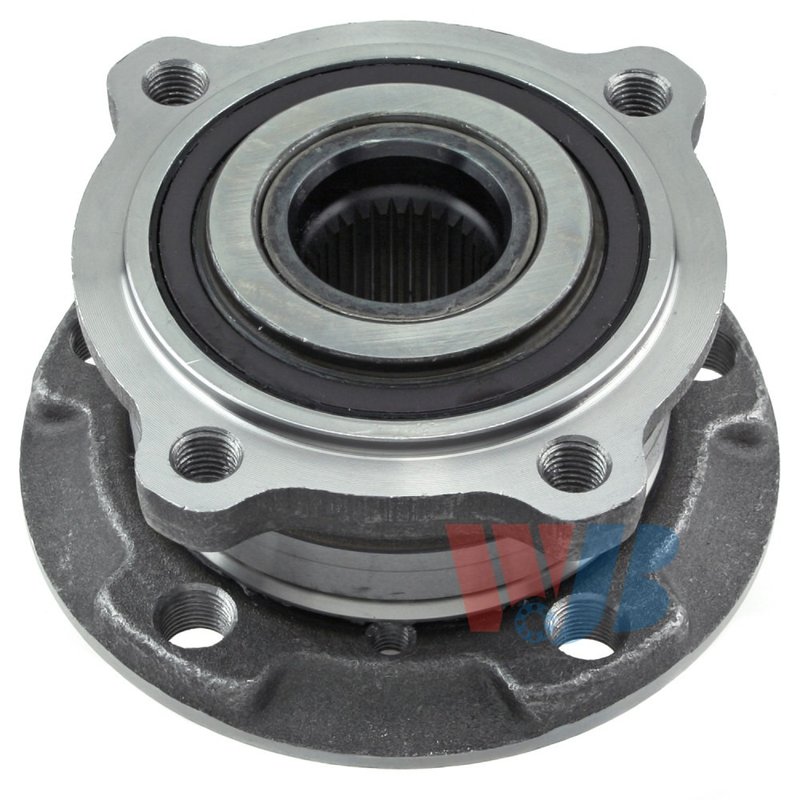

InMotion WA513305 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for BMW X5/X6

InMotion WA513305 is a front wheel bearing and hub assembly engineered for direct replacement on select BMW X5 and BMW X6 applications. Built from OE data and measurements, it is designed to match the original fit, performance, and service life requirements for the front axle.

Fits 2007-2016 BMW X5, front with 12 mm-1.50 threads. Fits 2008-2016 BMW X6, front with 12 mm-1.50 threads. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• OE-data-based design for accurate fitment on BMW X5 and BMW X6 models
• Integrated ABS sensor included
• 30-spline hub design
• 5 wheel studs with 4 flange bolt holes
• Hub pilot diameter: 98.0 mm
• Wheel pilot diameter: 74.0 mm
• Brake pilot diameter: 75.0 mm
• Flange diameter: 144.0 mm with 60.0 mm flange offset
• Bolt circle diameter: 120.0 mm (4.685 in.)

Detailed Description

InMotion WA513305 is manufactured with high-precision processes and strict quality-control criteria to deliver a front hub assembly that aligns with OE specifications. The trapezoid flange shape, 30-spline configuration, and integrated anti-lock brake sensor support proper wheel mounting and sensor function on the designated BMW X5 and BMW X6 front applications. For buyers searching for a BMW X5 front wheel bearing and hub assembly or a BMW X6 front hub assembly, WA513305 provides the dimensional accuracy needed for a direct replacement service part.

What It Can Help Fix

• Front wheel bearing noise or rough rotation
• Excessive wheel play at the hub
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting or hub fitment issues
• Vibration or looseness related to worn front hub components

Installation Notes and Tips

Confirm the vehicle uses 12 mm-1.50 threads before ordering. Verify front-position fitment, spline count, bolt circle diameter, and pilot dimensions against the original part before installation. Clean the mounting surface thoroughly and inspect related suspension and brake components for wear while the hub is removed.

Quality Assurance

InMotion manufactures this wheel bearing and hub assembly using OE data, precise measurements, and controlled production standards to support consistent fitment and long-term service on the specified BMW X5 and BMW X6 applications.
