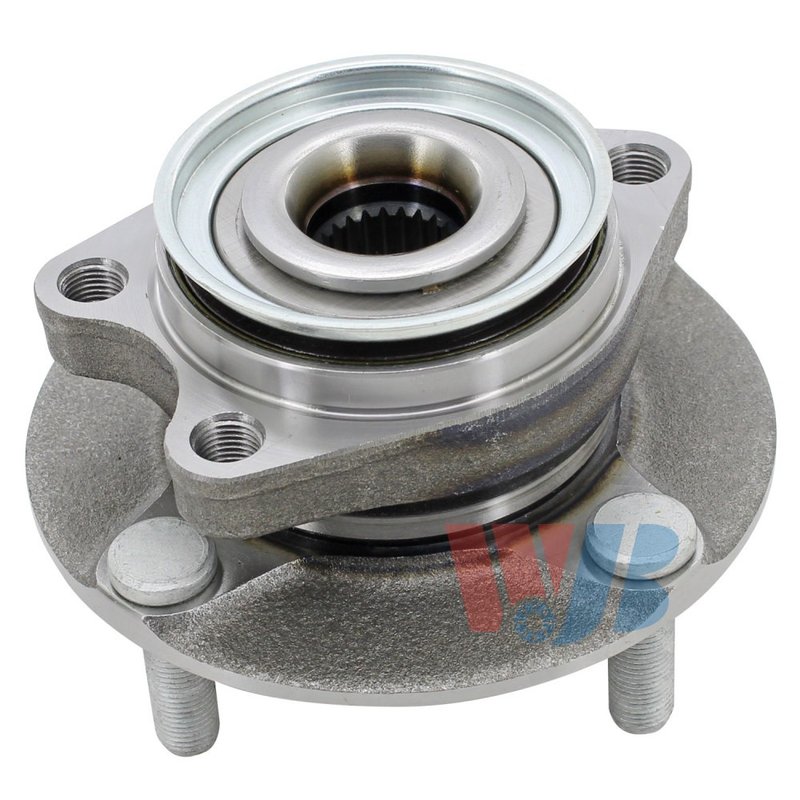

InMotion WA513308 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Versa

Restore smooth wheel rotation and proper hub support with this InMotion wheel bearing and hub assembly, part number WA513308. It is built from OE data and measurements for a direct replacement fit on the front of 2007-2011 Nissan Versa models, including standard grade applications.

• Fits 2007-2011 Nissan Versa, front
• Wheel bearing and hub assembly for driveline and axle service
• 25-spline design with 4 wheel studs
• 3 flange bolt holes and modified flange shape
• Bolt circle diameter: 114.3 mm / 4.5 in
• Hub pilot diameter: 80.0 mm
• Wheel pilot diameter: 66.0 mm
• Brake pilot diameter: 68.0 mm
• Flange offset: 40.7 mm
• Anti-lock brake sensor not included

OE-Style Fit and Construction

InMotion WA513308 is manufactured with high-precision processes and strict quality-control standards to match the designated application. The hub assembly is engineered for the Nissan Versa front position using OE reference data, helping ensure correct fitment, stable wheel mounting, and consistent service life. This part number, WA513308, is a direct replacement option for front hub service on 2007-2011 Nissan Versa vehicles.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Service Issues Addressed

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the hub
• Uneven wheel mounting caused by hub wear
• Vibration or rough rotation from a failing bearing unit
• ABS sensor-related fitment concerns when replacing a non-sensor hub

Installation Notes

Confirm the front position, 25-spline configuration, 4-stud wheel pattern, and 3-bolt flange layout before installation. Verify hub pilot, wheel pilot, brake pilot, and bolt circle measurements against the original part to ensure proper seating on the Nissan Versa. Because the ABS sensor is not included, reuse or source the vehicle-specific sensor as required by the application.

Quality Assurance

Each InMotion hub assembly is produced to strict dimensional standards and checked against OE measurements for fit, performance, and longevity. The WA513308 is built as a direct replacement wheel bearing and hub assembly for the specified Nissan Versa front applications.
