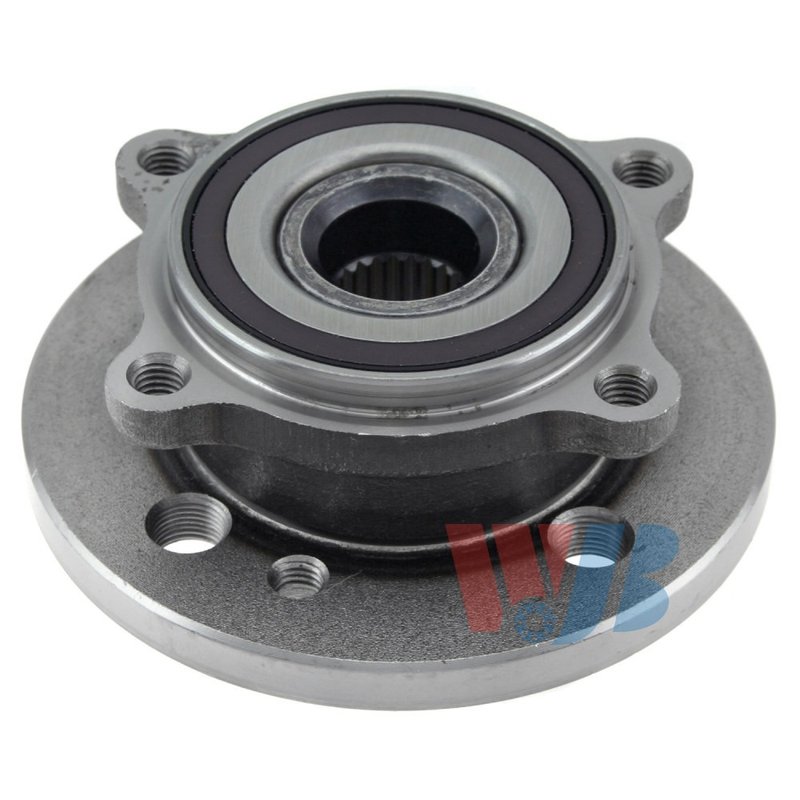

InMotion WA513309 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

InMotion WA513309 is a front wheel bearing and hub assembly engineered for 2007-2015 Mini Cooper models with standard grade fitment. Built from OE data and measurements, this hub assembly is made for direct replacement use on the front axle and includes the ABS sensor provision needed for proper wheel speed signal integration.

For Mini Cooper front hub replacement needs, WA513309 provides the dimensional accuracy and component layout expected in a modern wheel hub assembly. It is designed around the specified bolt pattern, pilot diameters, and stud count to support correct wheel mounting and brake interface alignment.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Fits 2007-2015 Mini Cooper, front
• 26-spline hub design
• 4 flange bolt holes and 4 wheel studs
• ABS sensor included
• Bolt circle diameter: 100.0 mm / 3.937 in
• Flange diameter: 137.5 mm
• Flange offset: 44.0 mm
• Wheel pilot diameter: 56.0 mm
• Brake pilot diameter: 64.0 mm
• Hub pilot diameter: 81.0 mm

Detailed Description

InMotion part number WA513309 is a front wheel bearing and hub assembly for the Mini Cooper, engineered for 2007-2015 applications. The assembly is manufactured using high-precision processes and strict quality-control standards, with OE data and measurements used to match the original fitment profile. That makes it a practical choice for replacing a worn or noisy front hub on a Mini Cooper while maintaining the correct wheel and brake interface dimensions.

This hub assembly features a 26-spline configuration, 4-bolt flange, 4 wheel studs, and an integrated ABS sensor. The specified pilot diameters and bolt circle help ensure the hub seats and locates correctly during service. Part number WA513309 is also a useful reference when searching for a Mini Cooper front wheel bearing hub assembly by OE-style dimensions.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Front wheel bearing noise or growling
• Wheel play or looseness at the hub
• ABS warning light caused by a failed hub sensor
• Uneven wheel mounting or hub fitment issues
• Vibration from a worn front hub assembly

Installation Notes

Confirm the vehicle is a 2007-2015 Mini Cooper with front-position fitment before ordering. Compare the spline count, bolt circle diameter, pilot diameters, and ABS sensor configuration to the original part. Clean the mounting surfaces thoroughly and torque fasteners to the vehicle manufacturer’s specifications during installation.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support consistent fitment, performance, and service life. WA513309 is built as a direct replacement front hub assembly for the specified Mini Cooper applications.
