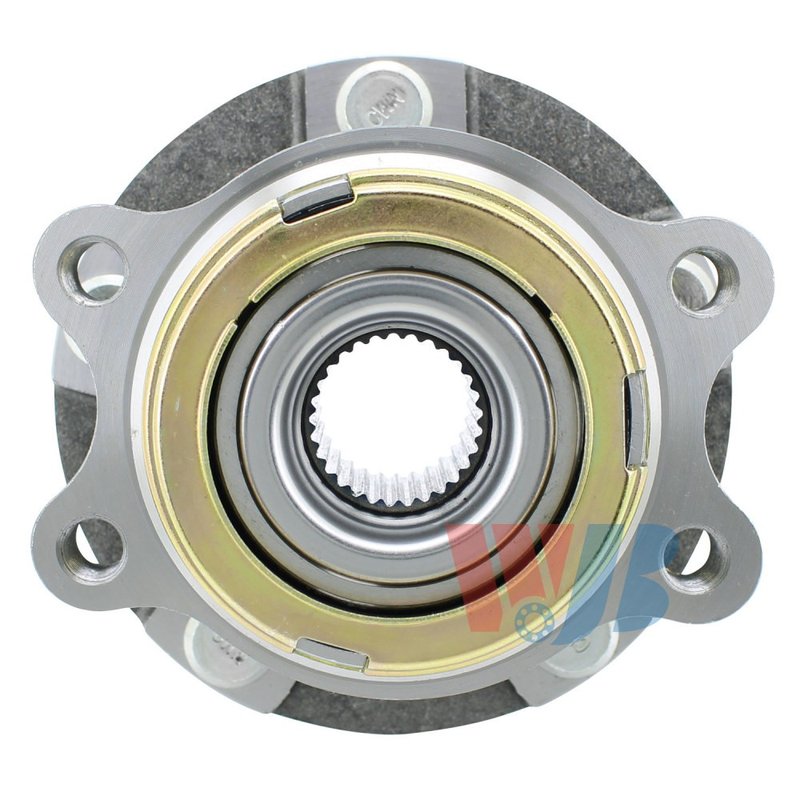

InMotion WA513310HD Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Nissan Quest and Murano

The InMotion WA513310HD wheel bearing and hub assembly is a direct replacement front hub built for select Nissan applications. It is engineered from OE data and measurements for accurate fitment, stable performance, and long service life on the road.

• Part number: WA513310HD
• Wheel bearing and hub assembly for the front position
• Driven hub design with 29 splines
• Ball bearing type
• 5-bolt flange with M12-1.25 thread size
• Hub pilot diameter: 68 mm (2.68 in)
• Hub centerbore diameter: 114.3 mm (4.5 in)
• Flange diameter: 136 mm (5.35 in)
• Flange offset: 40.7 mm (1.6 in)
• ABS magnetic encoder ring with 96 teeth
• No ABS sensor included
• No wiring harness included

Fitment Details

• Fits 2004-2009 Nissan Quest, front. Premium Grade.
• Fits 2003-2007 Nissan Murano, front. Premium Grade.

Product Overview

Built as a new OE-style replacement, this hub assembly is manufactured with strict quality-control standards and precision machining. The WA513310HD is designed for front-wheel applications that require a driven hub with a magnetic encoder ring, making it a practical choice for Nissan Quest and Nissan Murano front hub service. The part number WA513310HD is also referenced in cross-application catalogs alongside MOOG 513310, SKF BR930715, and Timken HA590046 for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive front wheel play or looseness
• ABS warning light concerns related to hub encoder wear
• Uneven wheel rotation caused by bearing deterioration
• Front-end vibration traced to hub or bearing wear

Installation Notes and Tips

Confirm the vehicle’s front hub configuration, spline count, flange bolt pattern, and M12-1.25 thread requirements before installation. Inspect the knuckle, axle splines, and mounting surfaces for wear or damage, and verify that the ABS encoder ring orientation matches the original setup. Professional installation is recommended for proper torque and alignment of the hub assembly.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fitment and durability. The WA513310HD is a new part built for direct replacement service on the specified Nissan Quest and Murano front applications.
