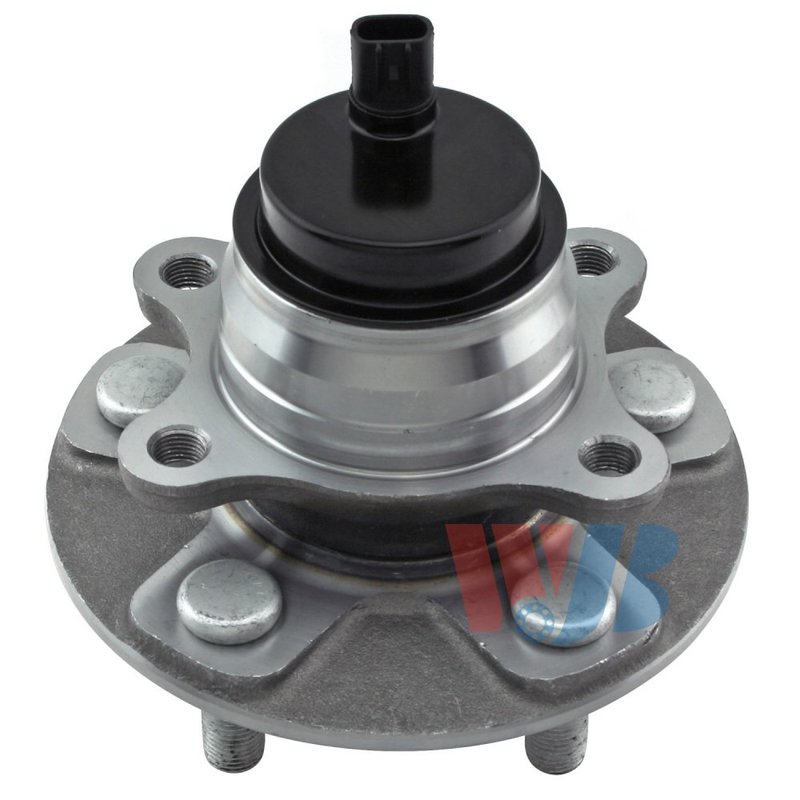

InMotion WA513313 Wheel Bearing and Hub Assembly - Front Left

Front Left Wheel Hub Assembly for Lexus LS460

InMotion WA513313 is a front left wheel bearing and hub assembly for the 2007-2017 Lexus LS460. Built from OE data and measurements, it is engineered as a direct replacement for the original hub assembly with the fitment, dimensions, and sensor integration needed for a precise repair.

Key Features

• Direct replacement wheel bearing and hub assembly for the front left position
• Fits 2007-2017 Lexus LS460, front left
• ABS sensor included for proper wheel speed signal integration
• 5 wheel studs with a 4-bolt flange design
• Modified flange shape with 42.0 mm flange offset
• OE-based dimensions for fitment and longevity
• Part number WA513313 for ordering and cross-checking

Detailed Description

InMotion WA513313 is a precision-built hub assembly for Lexus LS460 front left applications. It features a 157.9 mm flange diameter, 120.0 mm bolt circle diameter, 70.0 mm hub pilot diameter, 59.9 mm wheel pilot diameter, and 61.9 mm brake pilot diameter. The assembly is manufactured to strict quality-control criteria and uses OE data to match the original part’s dimensions and performance requirements. For buyers searching for a Lexus LS460 front left wheel bearing hub assembly, WA513313 provides the correct configuration for 2007-2017 vehicles.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Resolve

• Wheel bearing noise from a worn hub assembly
• ABS warning light caused by a failing wheel speed sensor interface
• Wheel looseness or play at the front left corner
• Uneven hub rotation or rough bearing feel
• Fitment issues when replacing a damaged original Lexus LS460 hub

Installation Notes

Confirm the front left position and verify all hub dimensions before installation. Inspect the knuckle, axle interface, and brake components for wear or damage during replacement. Because the ABS sensor is included, make sure the connector and harness routing match the vehicle’s original setup. WA513313 is listed for 2007-2017 Lexus LS460, front left, and should be matched to the vehicle by year and position before service.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control standards. The part is engineered from OE data and measurements to support correct fitment, consistent performance, and service life in Lexus LS460 applications.
