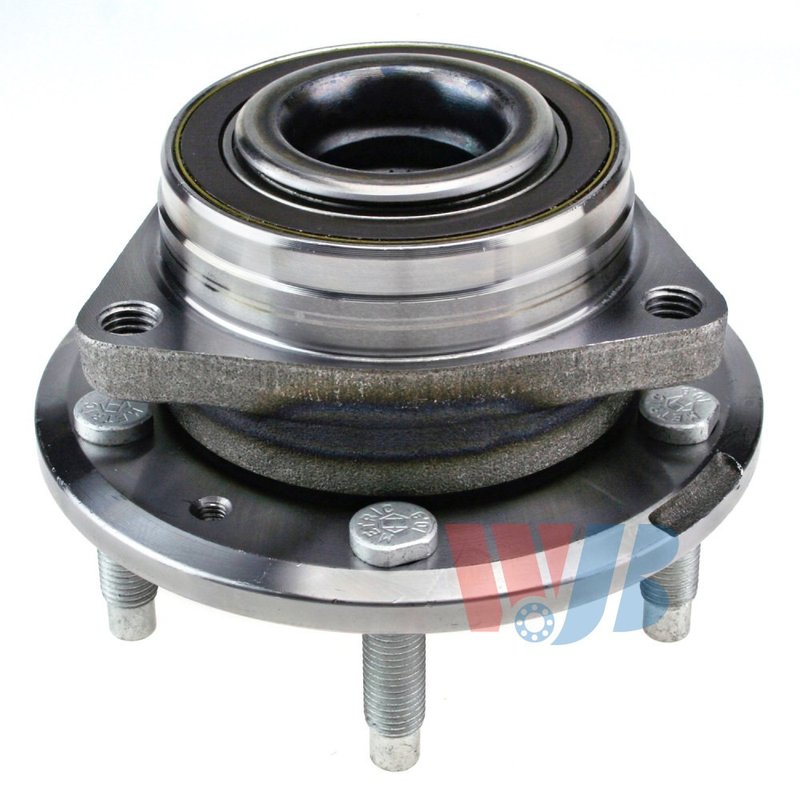

InMotion WA513316 Wheel Bearing and Hub Assembly - Front or Rear

OE-Style Wheel Hub Assembly

InMotion WA513316 is a wheel bearing and hub assembly built for direct replacement service on select front and rear applications. It is engineered from OE data and measurements, with precision manufacturing and strict quality control to support proper fit, smooth operation, and long service life.

Compatible with Buick Cascada, Buick Verano, Cadillac ATS, Cadillac ELR, Chevrolet Cruze, and Chevrolet Volt applications, this hub assembly is built around the exact mounting and sensor requirements of the listed vehicles. The InMotion WA513316 also includes an integrated ABS sensor for vehicles that use wheel speed signal input at the hub.

• Part number: WA513316
• Wheel bearing and hub assembly for direct replacement use
• 30-spline design
• 5 wheel studs
• 3 flange bolt holes
• Integrated ABS sensor included
• Triangular flange shape
• Wheel pilot diameter: 70.1
• Brake pilot diameter: 70.6
• Hub pilot diameter: 91.3
• Flange diameter: 146.0
• Bolt circle diameter: 115.0
• Flange offset: 42.1

Fitment Details

• Fits 2016-2017 Buick Cascada, front, Standard Grade
• Fits 2012-2017 Buick Verano, front, Standard Grade
• Fits 2013-2017 Cadillac ATS, rear, Standard Grade
• Fits 2014-2016 Cadillac ELR, front, Standard Grade
• Fits 2014-2015 Chevrolet Cruze, front, Standard Grade
• Fits 2011-2015 Chevrolet Volt, front, Standard Grade

Common Replacement Uses

• Restores a worn or noisy wheel hub assembly
• Addresses wheel play or looseness at the hub
• Replaces a damaged ABS-equipped hub assembly
• Helps correct vibration or rough wheel rotation caused by hub wear
• Supports proper wheel mounting on the listed front and rear positions

Installation Notes

Verify the vehicle position, spline count, bolt circle, flange dimensions, and ABS sensor configuration before installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Professional installation is recommended, and the hub mounting surfaces should be cleaned and inspected before assembly.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to help ensure consistent fitment and performance on the listed Buick, Cadillac, and Chevrolet applications. The WA513316 is built as a direct replacement part for the specified vehicles and positions.
