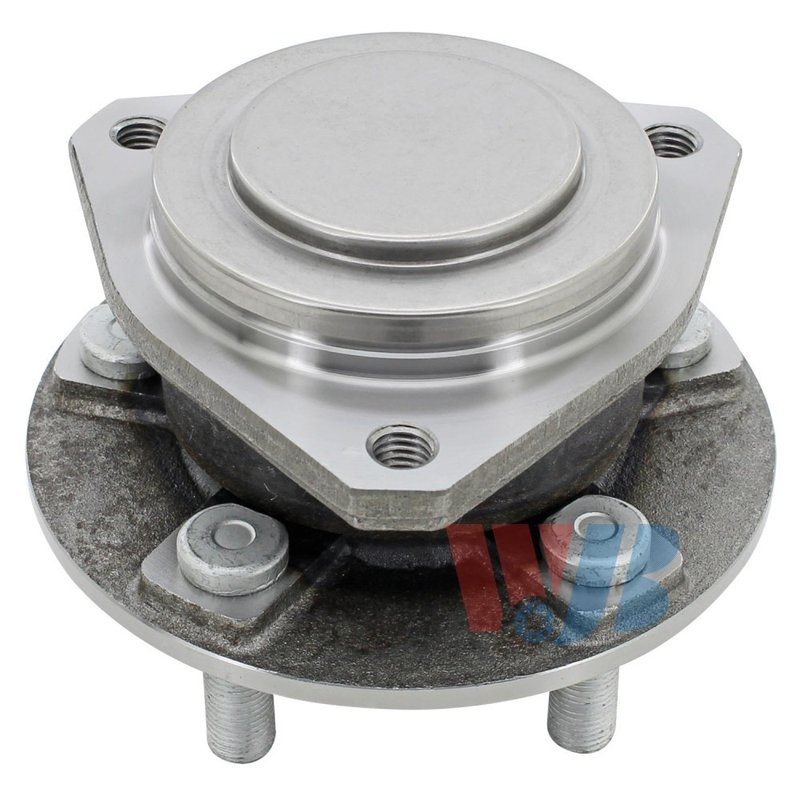

InMotion WA513325 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Chrysler and Dodge

InMotion WA513325 is a front wheel bearing and hub assembly built for direct replacement on select Chrysler and Dodge vehicles. It is engineered from OE data and measurements to support proper fitment, consistent performance, and long service life on the Chrysler 300, Dodge Challenger, and Dodge Charger.

Compatible with 2012-2023 Chrysler 300 front, 2012-2023 Dodge Challenger front, and 2012-2023 Dodge Charger front, this assembly includes an integrated ABS sensor and the hub dimensions needed for the designated application. The WA513325 is a practical choice when replacing a worn front hub on these platforms.

Key Features

• Part number: WA513325
• Front wheel bearing and hub assembly
• Direct replacement design for select Chrysler and Dodge applications
• Integrated anti-lock brake sensor included
• 5 wheel studs
• 3 flange bolt holes
• Triangle flange shape
• OE-based dimensions for fitment and alignment
• Wheel pilot diameter: 71.4 mm
• Brake pilot diameter: 72.4 mm
• Hub pilot diameter: 96.5 mm
• Flange diameter: 151.0 mm
• Flange offset: 55.2 mm
• Bolt circle diameter: 115.0 mm / 4.5 in

Detailed Description

InMotion WA513325 is manufactured with high-precision processes and quality-control standards to match the original hub assembly requirements for the front axle. The unit is designed around OE data and measurements, helping ensure the correct mounting geometry for the wheel, brake components, and ABS system. For drivers servicing a Chrysler 300, Dodge Challenger, or Dodge Charger, this front hub assembly provides the specified stud count, pilot diameters, bolt pattern, and sensor integration needed for the application.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Front wheel bearing noise or rough rotation
• ABS warning light related to a failing hub sensor
• Wheel looseness or vibration from hub wear
• Uneven brake feel caused by hub or bearing damage
• Corrosion or damage at the front hub mounting surface

Installation Notes and Tips

Verify the vehicle year, make, model, and front position before installation. Confirm the bolt circle, pilot diameters, stud count, and ABS sensor connection match the original assembly. Clean the mounting surface thoroughly and inspect related brake and suspension components during replacement. Torque fasteners to the vehicle manufacturer’s specifications and clear any ABS fault codes after installation if required.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and strict quality-control criteria to support accurate fitment and dependable operation. The part is built as a direct replacement for the original front hub assembly on the listed Chrysler and Dodge applications.
