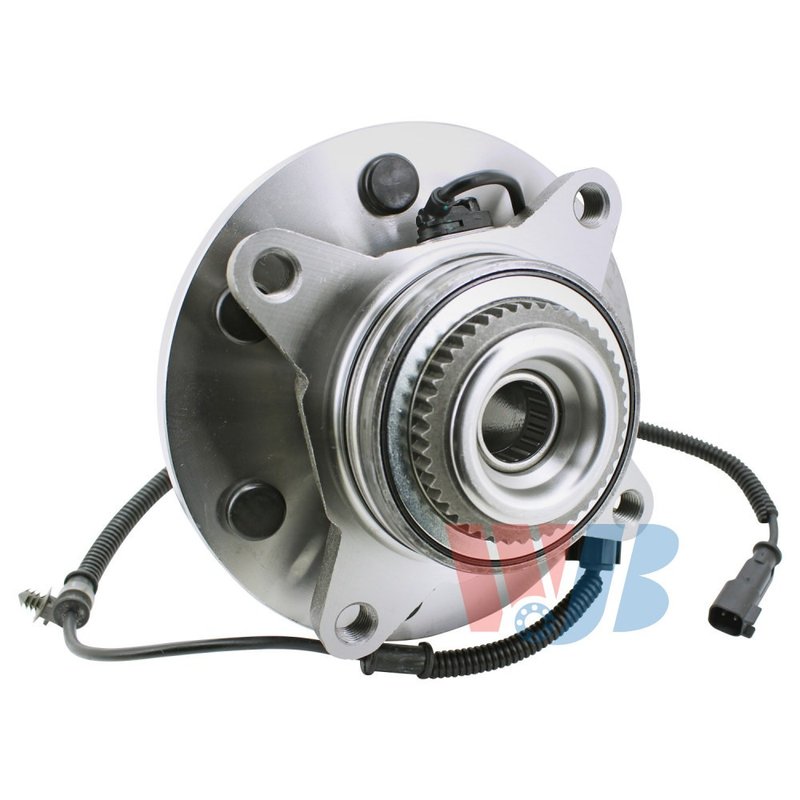

InMotion WA513326 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Ford F-150

The InMotion WA513326 wheel bearing and hub assembly is a direct replacement for the front position on select 2010-2014 Ford F-150 Standard Grade applications. Built from OE data and measurements, it is engineered for proper fitment, stable wheel support, and long service life.

For Ford F-150 front hub replacement needs, WA513326 combines the hub, bearing, and ABS sensor in one assembly for a straightforward service part.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Fits 2010-2014 Ford F-150, front
• Includes ABS sensor
• 45 spline quantity
• 7 wheel studs with 4 flange bolt holes
• Modified square flange shape with 45.5 flange offset
• OE-based dimensions for fitment accuracy
• Cross-reference: HUB348

Detailed Description

InMotion part number WA513326 is manufactured with high-precision processes and strict quality-control standards to match the original application. It features a 190.0 flange diameter, 149.4 bolt circle diameter, 86.7 wheel pilot diameter, 89.9 brake pilot diameter, and 99.2 hub pilot diameter. These specifications support correct wheel mounting and hub alignment on the front of the Ford F-150.

This front wheel bearing and hub assembly is a practical replacement for worn or noisy hub units on 2010-2014 Ford F-150 trucks. WA513326 is built for the Standard Grade application and is listed as a direct replacement for the original part. If you are searching for a Ford F-150 front wheel hub assembly, InMotion WA513326 provides the OE-style dimensions needed for a proper service repair.

What It Helps Fix

• Wheel bearing noise from the front hub area
• Excessive wheel play or looseness
• ABS warning light concerns related to the hub sensor
• Uneven wheel support caused by hub wear
• Front-end vibration traced to a failing hub assembly

Installation Notes and Tips

Confirm the vehicle is a 2010-2014 Ford F-150, front, Standard Grade before ordering. Compare the spline count, bolt pattern, flange dimensions, and sensor configuration to the original part before installation. Proper torque procedures and clean mounting surfaces are important for correct hub seating and reliable operation.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measured specifications, with quality-control checks applied during production to support consistent fit and performance. Part number WA513326 is built as a direct replacement for the listed Ford F-150 front application.
