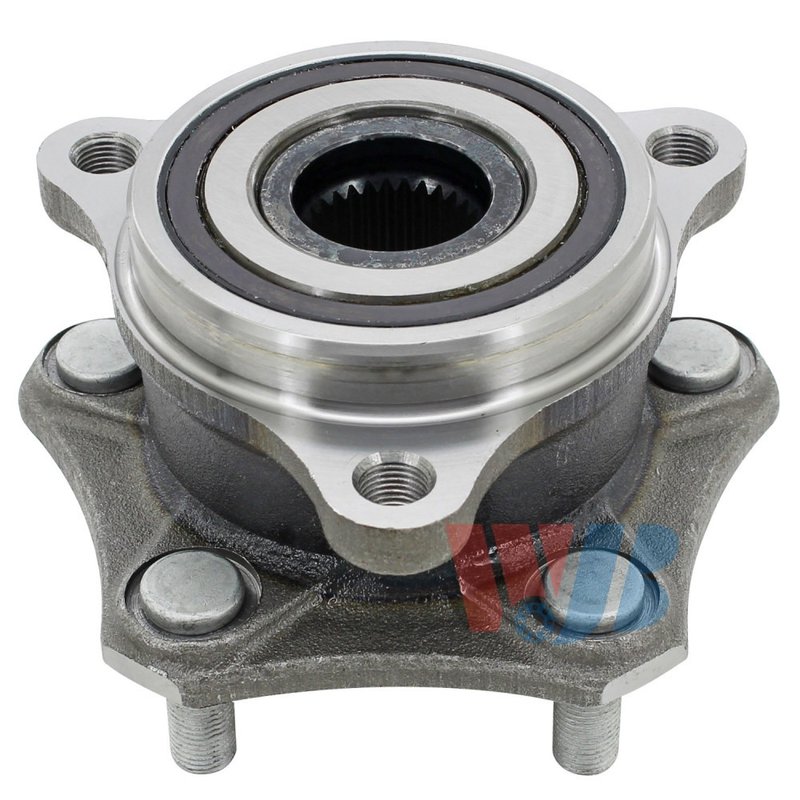

InMotion WA513333 Wheel Bearing and Hub Assembly - Front

Wheel Bearing and Hub Assembly for OE-Style Replacement

The InMotion WA513333 wheel bearing and hub assembly is built for direct replacement service with OE-based measurements and application-specific fitment. It is engineered for vehicles that require a 31-spline hub design, 5 wheel studs, an 80.0 mm hub pilot diameter, a 114.3 mm bolt circle diameter, and an integrated ABS sensor.

Key Features

• Wheel bearing and hub assembly for driveline and axle service
• 31 spline quantity for the specified application
• 5 wheel studs with a 114.3 mm bolt circle diameter
• 80.0 mm hub pilot diameter for proper wheel centering
• ABS sensor included for vehicles with anti-lock brake systems
• 3 flange bolt holes for mounting to the knuckle or hub carrier
• Built using OE data and measurements for fitment, performance, and service life

Detailed Description

InMotion WA513333 is a precision-machined hub assembly designed as a direct replacement for the original part on the designated application. The hub is manufactured under strict quality-control standards and uses OE-based dimensions to help maintain correct wheel mounting, sensor function, and bearing support. For shoppers searching for a wheel bearing and hub assembly for a vehicle with a 31-spline hub, 5-lug wheel pattern, and integrated ABS sensor, WA513333 provides the required specifications in one service part. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible With select vehicle applications that use the WA513333 specification, including make/model searches such as InMotion WA513333 wheel bearing hub assembly and OE replacement hub assembly for the listed fitment.

Common Repair Symptoms

• Wheel bearing noise, humming, or growling from the hub area
• ABS warning light caused by a failed hub sensor or sensor signal issue
• Wheel looseness or play at the hub
• Uneven wheel rotation or rough bearing operation
• Hub mounting wear affecting wheel alignment or brake performance

Installation Notes and Tips

Confirm spline count, bolt circle diameter, hub pilot diameter, flange bolt pattern, and ABS sensor configuration before installation. Clean the mounting surface, inspect the knuckle and axle interface for wear, and verify that the wheel speed sensor connector and tone signal match the original setup. For vehicle-specific searches, confirm the application against the exact make and model before ordering WA513333.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict inspection criteria to support consistent fit and dependable operation. The part is engineered from OE data and measurements to align with original equipment requirements for the designated application.
