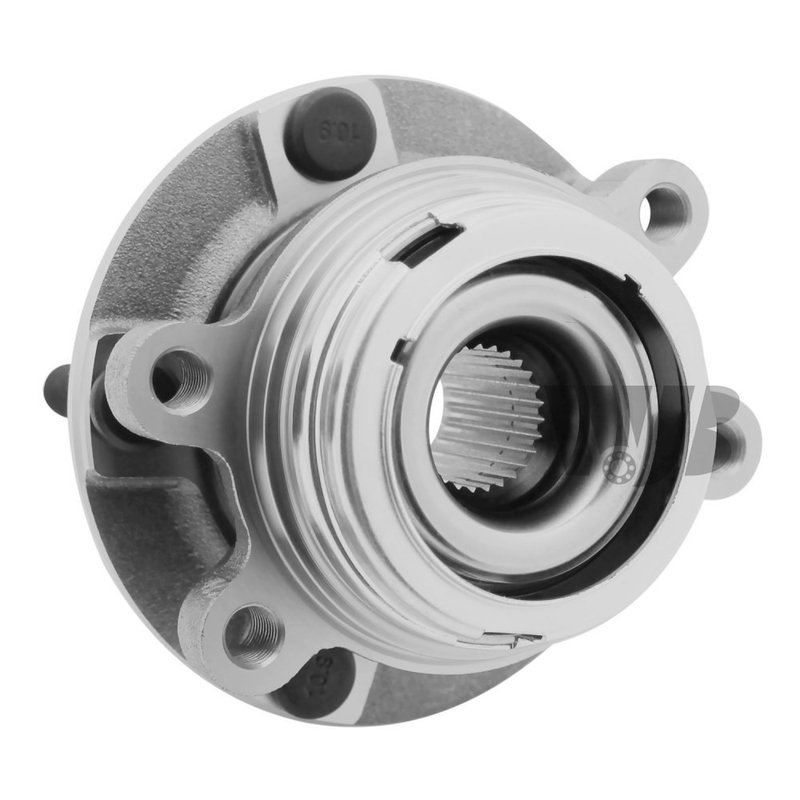

InMotion WA513335HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Infiniti

InMotion WA513335HD is a front wheel bearing and hub assembly built for driven applications that require precise fitment and stable wheel support. It is engineered from OE data and measurements for select INFINITI models, including Q50, Q60, Q70, Q70L, QX50, QX70, Q40, FX35, FX45, FX50, G37, M35, M37, M45, and M56.

This InMotion hub assembly uses a ball bearing design, a magnetic encoder ABS ring, and a 27-spline configuration. The flange features a 5-bolt pattern, M12-1.25 thread size, 136 mm flange diameter, and 40.8 mm flange offset for direct replacement service on the front axle.

Key Features

• Part number: WA513335HD
• Front wheel bearing and hub assembly for driven applications
• Ball bearing construction for smooth wheel rotation
• Magnetic encoder ABS ring with 96 teeth
• 27-spline hub design
• 5 flange bolts, M12-1.25 thread size
• Hub pilot diameter: 68 mm
• Flange diameter: 136 mm
• Flange offset: 40.8 mm
• New, direct replacement design based on OE measurements

Detailed Description

WA513335HD is manufactured with strict quality-control criteria and built to match the original hub dimensions for the listed INFINITI front applications. The assembly is designed for accurate wheel mounting, consistent bearing performance, and long service life in daily driving conditions. It cross-references MOOG 513335, SKF BR930892, and Timken HA590125 for the same application. This part number WA513335HD is a practical OE-style replacement for front hub service on INFINITI Q50 and related models.

Common Problems This Part Can Address

• Wheel bearing noise from the front hub area
• Excessive wheel play or looseness
• ABS warning concerns related to the encoder ring
• Uneven hub rotation or rough bearing feel
• Front-end vibration traced to hub wear

Installation Notes and Fitment

Compatible With front applications only. Verify spline count, flange bolt pattern, hub pilot diameter, and ABS encoder style before installation. Fits 2014-2023 INFINITI Q50, front; 2014-2015 INFINITI Q60, front; 2017-2022 INFINITI Q60, front; 2014-2019 INFINITI Q70, front; 2015-2019 INFINITI Q70L, front; 2014-2017 INFINITI QX50, front; 2014-2017 INFINITI QX70, front; 2015 INFINITI Q40, front; 2009-2013 INFINITI FX50, front; 2003-2012 INFINITI FX35, front; 2003-2008 INFINITI FX45, front; 2009-2012 INFINITI G37, front; 2010 INFINITI M35, front; 2013 INFINITI M37, front; 2013 INFINITI M56, front; 2008-2010 INFINITI M45, front.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support proper fit and dependable operation. WA513335HD is a new part built as a direct replacement for the original front hub assembly on the listed INFINITI vehicles.
