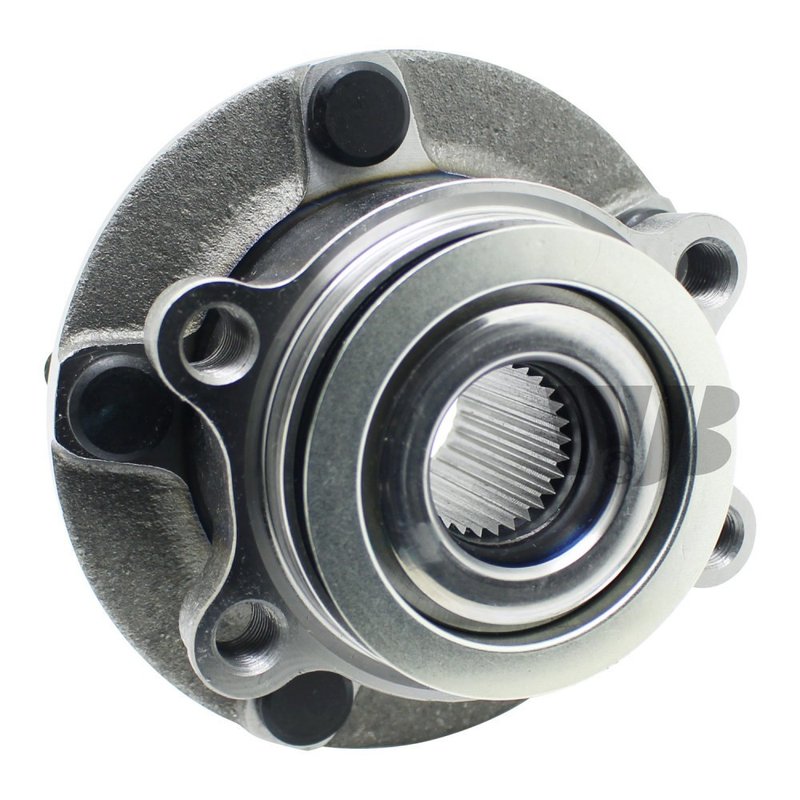

InMotion WA513336 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Nissan Juke and LEAF

InMotion WA513336 is a front wheel bearing and hub assembly built for direct replacement on select Nissan applications. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life on the front axle.

• Front wheel bearing and hub assembly
• Fits 2011-2017 Nissan Juke, front
• Fits 2011-2012 Nissan LEAF, front
• 29-spline design
• 5 wheel studs with 4 flange bolt holes
• ABS sensor included
• Bolt circle diameter: 114.27 mm
• Flange diameter: 136.0 mm
• Hub pilot diameter: 80.0 mm
• Wheel pilot diameter: 65.9 mm
• Brake pilot diameter: 67.9 mm
• Flange offset: 40.6 mm

Built to OE Dimensions

This InMotion wheel bearing and hub assembly is manufactured with strict quality-control criteria and high-precision production methods. The hub is designed around OE specifications for the Nissan Juke front hub assembly and Nissan LEAF front hub assembly, helping ensure proper alignment of the wheel, brake components, and ABS system. Part number WA513336 is a direct replacement style unit for the listed front applications.

Common Problems This Part Can Address

• Front wheel bearing noise or growling
• Excessive wheel play or looseness
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel rotation or vibration from hub wear
• Front-end driveline noise traced to a worn hub assembly

Installation Notes

Confirm the vehicle year, model, and front position before ordering. Verify spline count, bolt circle diameter, and sensor configuration against the original hub assembly before installation. WA513336 is listed for front use on the specified Nissan Juke and Nissan LEAF applications, so matching the OE part dimensions is important for proper fitment.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support fitment, performance, and durability. Part number WA513336 is built as an OE-style replacement for the listed Nissan front hub applications.
