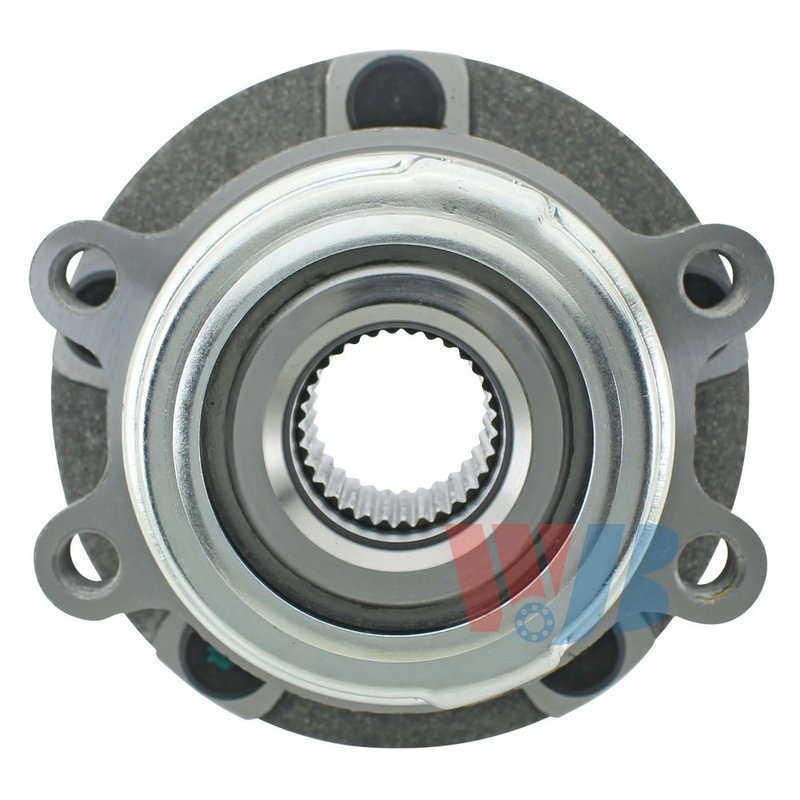

InMotion WA513338 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Nissan

InMotion WA513338 is a front wheel bearing and hub assembly built for direct replacement service on select Nissan applications. It is engineered from OE data and measurements for fitment, performance, and service life, with an integrated ABS sensor for vehicles that require it.

Key Features

• Front wheel bearing and hub assembly
• Direct replacement design based on OE data and measurements
• Integrated anti-lock brake sensor included
• 32-spline hub configuration
• 5 wheel studs with a 4-bolt flange pattern
• Flange diameter: 136.0 mm
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 65.9 mm
• Brake pilot diameter: 67.9 mm
• Hub pilot diameter: 93.0 mm
• Rectangle flange shape with 40.6 mm flange offset

Detailed Description

InMotion WA513338 is manufactured with high-precision processes and strict quality-control standards to match the original hub assembly dimensions used on the vehicle. This front hub assembly is built for Nissan Quest and Nissan Murano models, with the correct spline count, stud count, pilot diameters, and bolt circle specifications needed for proper wheel mounting and brake system alignment. It is a practical OE-style replacement for front-end service where the original hub bearing assembly has worn, become noisy, or triggered ABS-related concerns. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2011-2017 Nissan Quest, front, Standard Grade
• Fits 2009-2014 Nissan Murano, front, Standard Grade

Common Issues This Part Can Address

• Front wheel bearing noise or growling
• Excessive hub play or looseness
• ABS warning light caused by a failing hub sensor
• Uneven wheel rotation or vibration from hub wear
• Wheel mounting issues related to worn hub components

Installation Notes and Tips

Confirm the vehicle’s front application, spline count, and bolt pattern before installation. Inspect the mating surfaces, axle splines, and brake components for wear or corrosion during service. Because this assembly includes an ABS sensor, verify connector routing and sensor alignment during installation to help ensure proper system operation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based dimensions and controlled production standards to support consistent fitment and durability on the specified Nissan Quest and Nissan Murano front applications.
