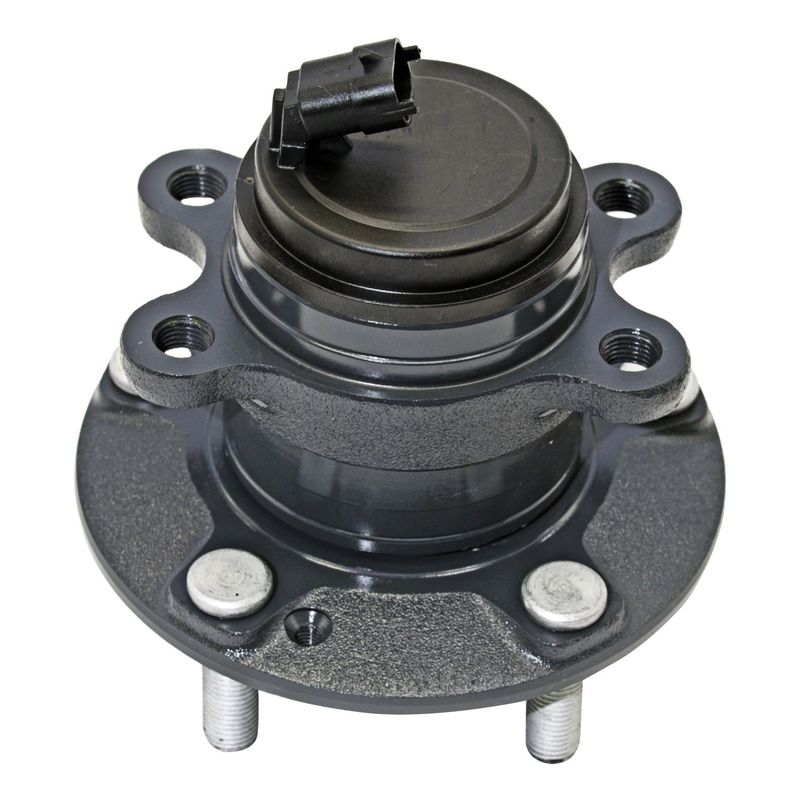

InMotion WA513343HD Wheel Bearing and Hub Assembly - Front
| Brand | InMotion WA513343HD |
|---|---|
| Position | Front |
| Material | Gcr15 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | Yes |
| Bearing Type | Ball | roller |
| Terminal Gender | F |
| Flange Offset | 2.3199999999999998 |
| Flange Offset | 59 |
| Flange Diameter | 139 |
| Flange Diameter | 5.47 |
| Abs Connector Shape | Oval |
| Abs Ring Type | Active female |
| Abs Sensor Ring Diameter (in) | 71 |
| Abs Sensor Ring Diameter (mm) | 2.8 |
| Driven Or Non-driven | Non-driven |
| Flange Bolt Size (in) | 0.47 |
| Flange Bolt Size (mm) | 12 |
| Flange Bolt Thread Size | 1.5 |
| Gasket Or Seal Included | No |
| Greaseable | No |
| Lug Bolt Thread Size | M12x1.5 |
| New Or Remanufactured | New |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 5 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Number Of Terminals | 1 |
| Total Hub Diameter (in) | 4.72 |
| Total Hub Diameter (mm) | 120 |
| Wiring Harness Included | No |
| Fits | Hyundai · 7 vehicles |
OE-based replacement. Engineered from original measurements for accurate fitment and service consistency.
Integrated ABS sensor. Supports wheel-speed signal handling in the hub assembly.
New hub assembly. Built with GCr15 material and a ball-and-roller bearing design.
Cross-references MOOG Hub Assemblies 513343, SKF BR930846 and Timken HA590592 for the same application. See all 5.
Wheel Bearing and Hub Assembly for Hyundai Genesis Coupe
Restore smooth wheel support with this InMotion wheel bearing and hub assembly, part number WA513343HD. It is built for direct replacement applications and uses OE data and measurements to match the specified fitment for the Hyundai Genesis Coupe.
Key Features
- Direct replacement wheel bearing and hub assembly for specified applications
- OE-based engineering for fitment, performance, and service life
- Integrated ABS sensor included for proper wheel speed signal handling
- Ball and roller bearing design for dependable hub operation
- New assembly with a circular flange and M12x1.5 lug bolt thread size
- Non-driven hub configuration
Detailed Description
InMotion WA513343HD is a front wheel bearing and hub assembly engineered for 2010-2016 Hyundai Genesis Coupe applications. The assembly is manufactured with precision controls and designed from OE data to match the original dimensions and mounting requirements. Its GCr15 construction, active female ABS ring, and integrated sensor help support consistent wheel-speed input and stable hub operation in the intended application. The WA513343HD is also cross-referenced to Monroe Shocks & Struts 172286 and 182286 for the same application.
What It Is Used For
- Eliminating wheel-end noise caused by worn hub bearings
- Replacing a hub assembly with ABS sensor-related faults
- Addressing looseness or rough rotation at the wheel end
- Restoring proper hub mounting and wheel-speed signal function
Installation Notes and Tips
Fits 2010-2016 Hyundai Genesis Coupe, front. Confirm flange bolt pattern, lug thread size, and ABS connector shape before installation. This hub assembly uses a 4-bolt knuckle mounting pattern and a 5-bolt flange design, so matching the original hardware interface is important during service.
Quality Assurance
InMotion manufactures this hub assembly under strict quality-control criteria and uses OE data and measurements to support fitment consistency and long-term service performance.
| Year | Make | Model | Body Type | # Doors | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Hyundai | Genesis Coupe | Coupe | 2 Door | Front | Premium Grade |
| 2015 | Hyundai | Genesis Coupe | Coupe | 2 Door | Front | Premium Grade |
| 2014 | Hyundai | Genesis Coupe | Coupe | 2 Door | Front | Premium Grade |
| 2013 | Hyundai | Genesis Coupe | Coupe | 2 Door | Front | Premium Grade |
| 2012 | Hyundai | Genesis Coupe | Coupe | 2 Door | Front | Premium Grade |
| 2011 | Hyundai | Genesis Coupe | Coupe | 2 Door | Front | Premium Grade |
| 2010 | Hyundai | Genesis Coupe | Coupe | 2 Door | Front | Premium Grade |
