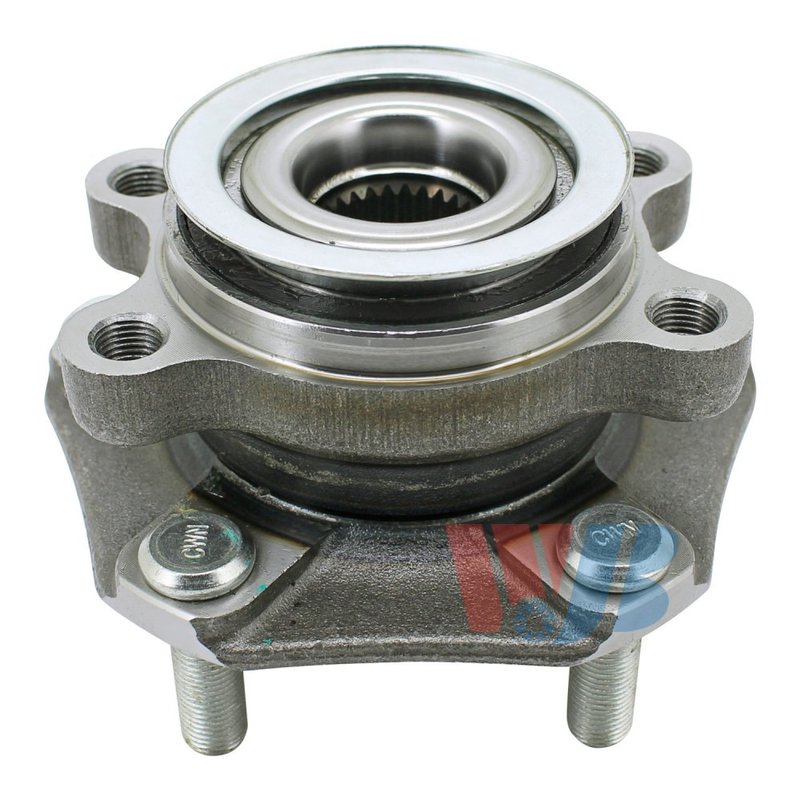

InMotion WA513364 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly

InMotion WA513364 is a front wheel bearing and hub assembly built for direct replacement service on select Nissan, Chevrolet, and electric vehicle applications. It is engineered from OE data and measurements to support proper fitment, stable wheel mounting, and long service life.

Compatible with front applications on the Nissan NV200, Nissan Sentra, Chevrolet City Express, and Nissan LEAF, this hub assembly is designed around the specified bolt pattern, pilot diameters, and sensor integration required for the listed vehicles.

Key Features

• Part number WA513364 front wheel bearing and hub assembly
• 29-spline design for the designated driveline application
• 5 wheel studs with a 4-bolt flange pattern
• ABS sensor included for vehicles equipped with wheel speed sensing
• Hub pilot diameter: 80.0 mm
• Wheel pilot diameter: 65.9 mm
• Brake pilot diameter: 68.0 mm
• Bolt circle diameter: 114.3 mm / 4.5 in.
• Flange diameter: 136.0 mm with 40.6 mm flange offset
• Rectangle flange shape for the listed OE-style fitment

Detailed Description

WA513364 is manufactured using high-precision processes and strict quality-control criteria to match the original part’s application requirements. The assembly is engineered for the front position and uses OE-based dimensions to help maintain correct wheel location, bearing support, and sensor function. For shoppers searching for a front wheel bearing and hub assembly for 2013-2019 Nissan NV200, 2013-2019 Nissan Sentra, 2015-2018 Chevrolet City Express, or 2013-2017 Nissan LEAF, this part number WA513364 provides a direct replacement format.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to hub-mounted sensing
• Improper wheel mounting caused by damaged studs or flange wear
• Vibration or uneven rotation from a failing front hub

Installation Notes and Tips

Install WA513364 only on the front position listed for the confirmed vehicle application. Verify spline count, bolt circle diameter, pilot diameters, and ABS sensor connection before installation. Clean the mounting surface, inspect the knuckle and axle interface for wear, and torque fasteners to the vehicle manufacturer’s specifications. After installation, confirm proper wheel rotation and ABS system operation.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support consistent fitment and performance across the listed applications. Part number WA513364 is built as a direct replacement-style component for the specified front-wheel applications.
