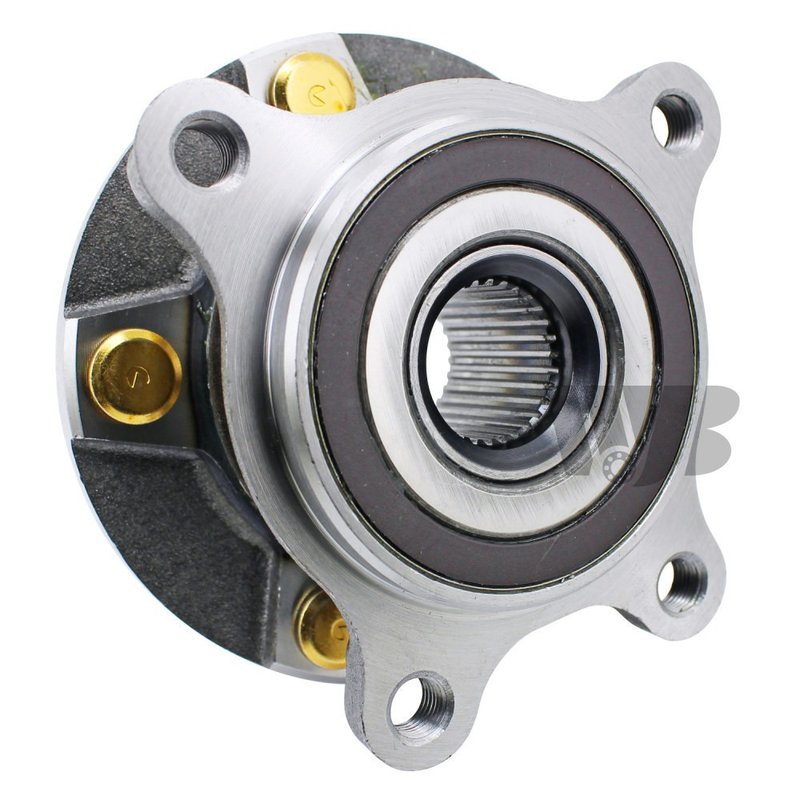

InMotion WA513366 Wheel Bearing and Hub Assembly - Front Right

Front Right Wheel Hub Assembly for Lexus

The InMotion WA513366 wheel bearing and hub assembly is a direct replacement for the front right position on select Lexus models. Built from OE data and measurements, it is engineered for accurate fitment, stable wheel support, and long service life.

• Front right wheel bearing and hub assembly
• Direct replacement design for designated Lexus applications
• 30-spline hub configuration
• 5 wheel studs with 4 flange bolt holes
• ABS sensor included
• Modified flange shape with 140.0 mm flange diameter
• Bolt circle diameter: 114.3 mm / 4.5 in.
• Wheel pilot diameter: 60.0 mm
• Brake pilot diameter: 62.0 mm
• Hub pilot diameter: 90.0 mm
• Flange offset: 50.1 mm

Fitment Details

Compatible With the following front right Lexus applications:

• Fits 2016-2022 Lexus RC300, front right, Standard Grade
• Fits 2020-2022 Lexus RC350, front right, Standard Grade
• Fits 2013-2020 Lexus GS350, front right, Standard Grade
• Fits 2007-2011 Lexus GS350, front right, Standard Grade
• Fits 2011-2020 Lexus IS350, front right, Standard Grade
• Fits 2016-2019 Lexus IS300, front right, Standard Grade
• Fits 2006-2015 Lexus IS250, front right, Standard Grade
• Fits 2006 Lexus GS300, front right, Standard Grade

What This Part Helps Address

• Wheel bearing noise from a worn front hub assembly
• ABS warning light concerns related to a failing sensor-equipped hub
• Wheel play or looseness at the front right corner
• Uneven wheel rotation caused by hub wear
• Fitment issues when replacing an OE-style Lexus hub assembly

Installation Notes

Verify spline count, bolt circle diameter, flange offset, and sensor configuration before installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. For Lexus GS350, IS350, IS300, IS250, RC300, and RC350 front right service, confirm the hub matches the vehicle’s standard grade configuration and brake interface before assembly.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. The WA513366 is built to match OE data and measurements for fitment, performance, and durability in the specified Lexus applications.
