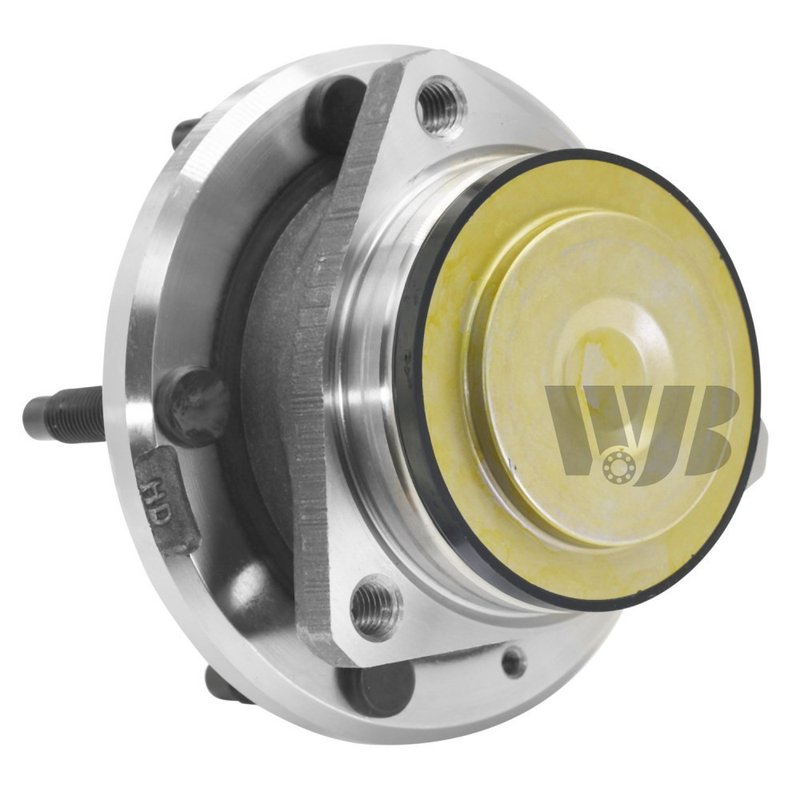

InMotion WA513378 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Corvette

Restore smooth front-end operation with this InMotion wheel bearing and hub assembly, part number WA513378. Built for the 2014-2019 Chevrolet Corvette, front, it is engineered as a direct replacement using OE data and measurements for fit, performance, and service life.

This front hub assembly features a 5-stud wheel mounting pattern, a 3-bolt flange, and an integrated ABS sensor. Key dimensions include a 70.1 mm wheel pilot diameter, 70.5 mm brake pilot diameter, 91.2 mm hub pilot diameter, 145.5 mm flange diameter, and 41.8 mm flange offset. The triangle flange shape and 120.4 mm bolt circle diameter support correct alignment in the designated application.

• Fits 2014-2019 Chevrolet Corvette, front
• Direct replacement wheel bearing and hub assembly
• Integrated anti-lock brake sensor included
• 5 wheel studs and 3 flange bolt holes
• OE-based dimensions for proper fitment and rotation
• Part number WA513378 for application matching

Detailed Product Overview

InMotion WA513378 is a front wheel bearing and hub assembly designed for the Chevrolet Corvette platform from 2014 through 2019. It is manufactured with precision processes and quality-control standards intended to maintain consistent hub geometry, bearing support, and sensor integration. For buyers searching for a 2014-2019 Chevrolet Corvette front wheel hub assembly, this unit provides the critical mounting and dimensional specifications needed for correct replacement service.

The assembly is built around OE-style measurements, including the wheel pilot, brake pilot, and hub pilot diameters, so the wheel and brake components seat correctly. The integrated ABS sensor helps maintain proper wheel speed signal function in vehicles equipped with anti-lock braking systems. Part number WA513378 is the reference to use when matching the correct front hub assembly for this Corvette application.

• Front wheel bearing noise or rough rotation
• Wheel play or looseness at the hub
• ABS warning light caused by hub sensor issues
• Uneven wheel seating from worn pilot surfaces
• Vibration or instability from a damaged hub assembly

Installation Notes and Tips

Confirm the vehicle is a 2014-2019 Chevrolet Corvette, front application before installation. Verify the 3-bolt flange pattern, 5-stud wheel configuration, and sensor connection match the original setup. Clean the mounting surfaces thoroughly and inspect related brake and suspension components for wear before installing the new hub assembly.

Use the OE measurements and part number WA513378 to verify the correct replacement before service. Proper torque procedures and sensor connection checks are important after installation.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is engineered from OE data and measurements to support correct fitment, performance, and durability in the specified Chevrolet Corvette front application.
