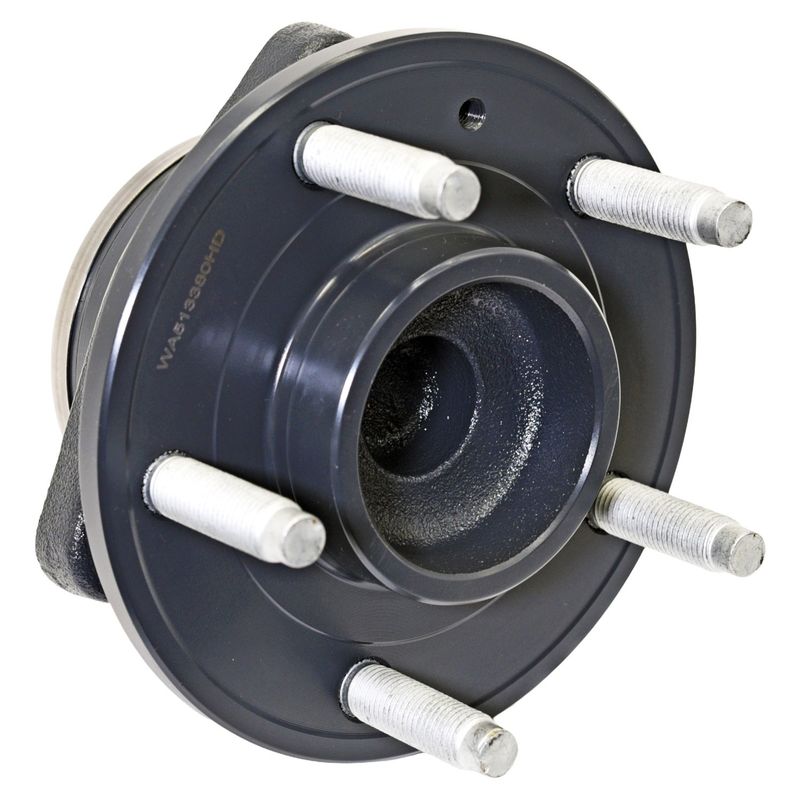

InMotion WA513380HD Wheel Bearing and Hub Assembly - Front
| Brand | InMotion WA513380HD |
|---|---|
| Position | Front |
| Hub Pilot Diameter | 2.78 |
| Hub Pilot Diameter | 70.599999999999994 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | No |
| Bearing Type | Ball |
| Flange Offset | 1.66 |
| Flange Offset | 42.1 |
| Flange Diameter | 146 |
| Flange Diameter | 5.75 |
| Abs Connector Shape | Cover |
| Abs Ring Type | Magnetic encoder |
| Driven Or Non-driven | Non-driven |
| Flange Bolt Size (in) | 0.47 |
| Flange Bolt Size (mm) | 12 |
| Flange Bolt Thread Size | M12-1.5 |
| Hub Centerbore Diameter (in) | 4.53 |
| Hub Centerbore Diameter (mm) | 115 |
| Lug Bolt Thread Size | M12-1.75 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 96 |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 0 |
| Number Of Mounting Bolts To Knuckle | 3 |
| Wiring Harness Included | No |
| Fits | Cadillac · 8 vehicles |
OE-data based. Engineered from original measurements for accurate fit and consistent hub performance.
Magnetic encoder ring. Built with a 96-tooth ABS encoder for wheel speed signal support.
New assembly. Ball bearing construction and strict quality-control manufacturing.
Cross-references Timken HA590488, 513380 and 590488 for the same application. See all 6.
Wheel Bearing and Hub Assembly Overview
The InMotion WA513380HD wheel bearing and hub assembly is a new, OE-data-based replacement built for precise fit and consistent performance. It is engineered for non-driven front applications and uses a ball bearing design with a magnetic encoder ring for ABS-related wheel speed signal support.
Compatible With Cadillac ATS and Cadillac CT6 front applications, this hub assembly is manufactured with strict quality-control standards and measured to match the designated application. The WA513380HD is a direct replacement style part for buyers looking to restore hub function without changing the original mounting layout.
Key Features
- New wheel bearing and hub assembly with OE-based dimensions
- Ball bearing construction for smooth hub operation
- Magnetic encoder ring with 96 teeth
- Non-driven front application design
- Five-bolt flange pattern with M12-1.5 flange bolt threads
- ABS sensor not included; wiring harness not included
Detailed Description
InMotion WA513380HD is built for drivers who need a replacement hub assembly that follows original equipment measurements and application-specific fitment. The circular flange design, 146 mm flange diameter, 42.1 mm flange offset, and 70.6 mm hub pilot diameter support accurate installation in the intended front position. This part cross-references Timken HA590488 for the same application.
Fits 2013-2019 Cadillac ATS, front and fits 2016 Cadillac CT6, front. The WA513380HD is a practical choice when the original hub shows wear, noise, or ABS-related signal issues tied to the wheel bearing assembly.
What It Is Used For
- Replacing a worn or noisy wheel bearing and hub assembly
- Restoring proper wheel hub support and rotation
- Addressing ABS encoder-related wheel speed signal concerns
- Correcting looseness or play at the hub mounting point
Installation Notes and Tips
Verify the vehicle’s front application, flange bolt pattern, and thread sizes before installation. Confirm the hub centerbore, pilot diameter, and ABS encoder style match the original part. Use the listed OE measurements and fitment data to compare against the removed assembly before final installation.
Quality Assurance
Manufactured with strict quality-control criteria and engineered from OE data and measurements for fitment, performance, and longevity.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Cadillac | ATS | RWD | Front | Premium Grade |
| 2018 | Cadillac | ATS | RWD | Front | Premium Grade |
| 2017 | Cadillac | ATS | RWD | Front | Premium Grade |
| 2016 | Cadillac | ATS | RWD | Front | Premium Grade |
| 2016 | Cadillac | CT6 | — | Front | Premium Grade |
| 2015 | Cadillac | ATS | RWD | Front | Premium Grade |
| 2014 | Cadillac | ATS | RWD | Front | Premium Grade |
| 2013 | Cadillac | ATS | RWD | Front | Premium Grade |
