Home› Driveline and Axles > Hubs and Related Components› InMotion WA513389HD Wheel Bearing and Hub Assembly - Front or Rear
InMotion WA513389HD Wheel Bearing and Hub Assembly - Front or RearOE Quality 60-Day Returns

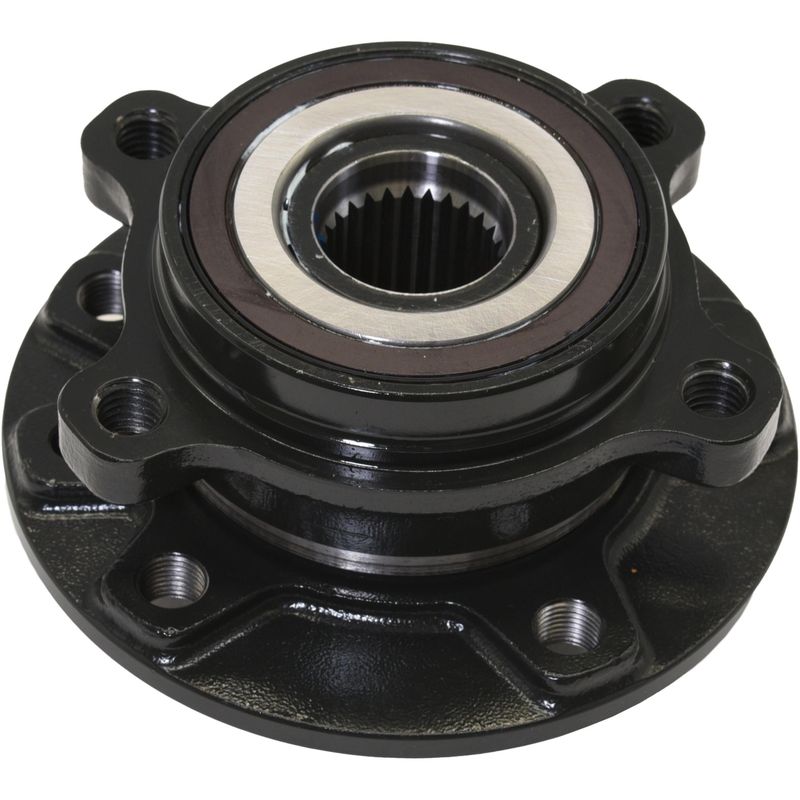

InMotion WA513389HD Wheel Bearing and Hub Assembly - Front or Rear - view 1
InMotion WA513389HD Wheel Bearing and Hub Assembly - Front or Rear - view 2
InMotion WA513389HD Wheel Bearing and Hub Assembly - Front or Rear - view 3
InMotion WA513389HD Wheel Bearing and Hub Assembly - Front or Rear - view 4
Part #: WA513389HD

InMotion WA513389HD Wheel Bearing and Hub Assembly - Front or Rear

Front and Rear
⚙️ 23 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$151.04Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Fiat and Jeep, 500X, Compass, and Renegade
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
InMotion WA513389HD Wheel Bearing and Hub Assembly - Front or Rear
BrandInMotion
Part NumberWA513389HD
Spline Quantity27
Hub Pilot Diameter2.76
Hub Pilot Diameter70
Flange ShapeCircle
Anti Lock Brake Sensor IncludedNo
Bearing TypeBall
Flange Offset1.65
Flange Offset42
Flange Diameter135
Flange Diameter5.31
Abs Ring TypeMagnetic encoder
Driven Or Non-drivenDriven
Flange Bolt Size (in)0.47
Flange Bolt Size (mm)12
Flange Bolt Thread SizeM12-1.25
Hub Centerbore Diameter (in)4.33
Hub Centerbore Diameter (mm)110
Lug Bolt Thread SizeM12-1.75
New Or RemanufacturedNew
Number Of Abs Sensor Ring Teeth96
Number Of Flange Bolts Included5
Number Of Lug Bolts Included0
Number Of Mounting Bolts To Knuckle4
Wiring Harness IncludedNo

This part fits 23 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
2023Fiat500XFrontReplaced by WA513444HD
2023JeepRenegadeAWDRearReplaced by WA513444HD
2022Fiat500XFrontReplaced by WA513444HD
2022JeepCompassFrontReplaced by WA513444HD
2022JeepRenegadeAWDRearReplaced by WA513444HD
2021Fiat500XFrontReplaced by WA513444HD
2021JeepCompassAWDRearReplaced by WA513444HD
2021JeepRenegadeFrontReplaced by WA513444HD
2020Fiat500XAWDRearReplaced by WA513444HD
2020JeepCompassFrontReplaced by WA513444HD
2020JeepRenegadeFrontReplaced by WA513444HD
2019Fiat500XFrontReplaced by WA513444HD
2019JeepCompassFrontReplaced by WA513444HD
2019JeepRenegadeAWDRearReplaced by WA513444HD
2018Fiat500XFrontReplaced by WA513444HD
2018JeepCompassAWDRearReplaced by WA513444HD
2018JeepRenegadeFrontReplaced by WA513444HD
2017Fiat500XAWDRearReplaced by WA513444HD
2017JeepCompassAWDRearReplaced by WA513444HD
2017JeepRenegadeFrontReplaced by WA513444HD
2016Fiat500XFrontReplaced by WA513444HD
2016JeepRenegadeFrontReplaced by WA513444HD
2015JeepRenegadeFrontReplaced by WA513444HD

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

51338968246453AA

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
