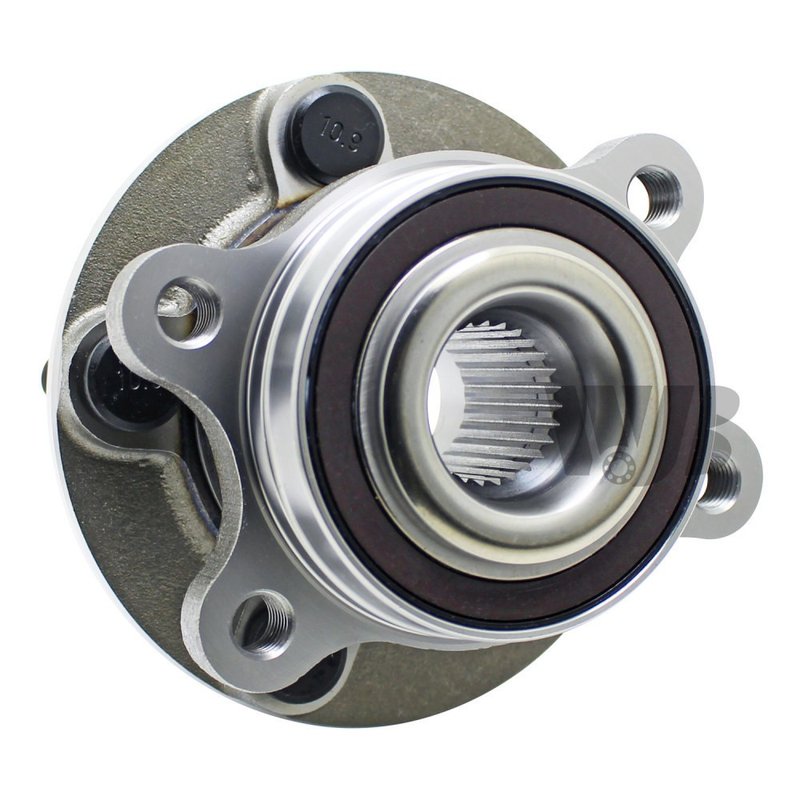

InMotion WA513394 Wheel Bearing and Hub Assembly - Front or Rear

OE-Style Wheel Hub Assembly for Ford and Lincoln

InMotion WA513394 is a new wheel bearing and hub assembly built for driven axle applications with OE-based measurements and fitment data. It is engineered for direct replacement use on select Ford Edge, Lincoln Nautilus, Lincoln Continental, Lincoln MKZ, Lincoln MKX, and Ford Fusion applications where a precise hub and bearing assembly is required.

• Wheel bearing and hub assembly for driven positions
• Ball bearing design for smooth hub rotation
• Magnetic encoder ABS ring with 88 teeth
• 5-bolt flange design with M14-1.5 flange bolt thread
• 27-spline hub configuration
• Hub pilot diameter: 63.5 mm (2.5 in)
• Flange diameter: 135.8 mm (5.35 in)
• Flange offset: 48 mm (1.89 in)
• New part manufactured to strict quality-control criteria

Detailed Fitment and Design

WA513394 is manufactured using OE data and measurements to match the original hub assembly dimensions, mounting points, and sensor interface. The magnetic encoder ABS ring is integrated for vehicles that use encoder-based wheel speed signal input, while the driven hub design supports the axle configuration specified in the fitment data. This part cross-references Timken HA590611 for the same application. For shoppers searching for a Ford Edge rear wheel bearing hub assembly or a Lincoln MKZ front hub assembly, InMotion WA513394 provides the specified OE-style replacement format.

Vehicle Fitment

• Fits 2024 Ford Edge, rear
• Fits 2022 Ford Edge, rear
• Fits 2015-2020 Ford Edge, rear
• Fits 2023 Ford Edge, front
• Fits 2021 Ford Edge, front
• Fits 2022-2023 Lincoln Nautilus, front
• Fits 2020-2021 Lincoln Nautilus, rear
• Fits 2020 Lincoln Continental, front
• Fits 2018 Lincoln Continental, front
• Fits 2017-2020 Lincoln MKZ, front
• Fits 2017-2019 Ford Fusion, front
• Fits 2019 Lincoln Continental, rear
• Fits 2017 Lincoln Continental, rear
• Fits 2016-2018 Lincoln MKX, rear

Common Problems This Part Can Address

• Wheel bearing noise from a worn hub assembly
• ABS warning lights caused by encoder or hub signal issues
• Hub play or looseness at the wheel mounting point
• Uneven wheel rotation caused by bearing wear
• Vibration or roughness from a deteriorated hub unit

Installation Notes and Tips

Confirm the vehicle position, spline count, flange bolt pattern, and sensor style before installation. Compare the original hub dimensions to the listed hub pilot diameter, flange diameter, and offset to verify the correct application for your Ford Edge, Lincoln Nautilus, Lincoln Continental, Lincoln MKZ, Lincoln MKX, or Ford Fusion. Because this assembly uses a magnetic encoder, the wheel speed sensor system should be inspected for proper operation during replacement.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control standards. Each unit is built from OE-based specifications to support proper fit, performance, and service life in the listed applications.
