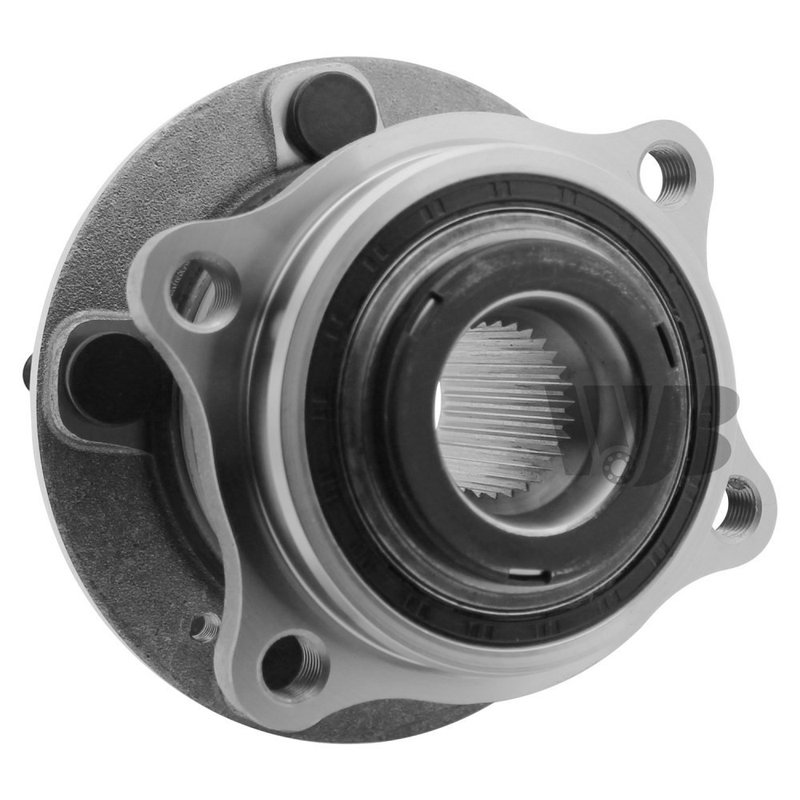

InMotion WA513395 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Kia Sedona

Restore smooth front-wheel operation with this InMotion wheel bearing and hub assembly, part number WA513395. Built as a new, direct replacement using OE data and measurements, it is engineered for the front of select Kia Sedona models with driven applications and a 4.500 in. bolt circle diameter.

• Brand: InMotion
• Part Number: WA513395
• Part type: wheel bearing and hub assembly
• Driven front hub assembly
• Ball bearing design
• 30-spline configuration
• Hub pilot diameter: 2.71 in. / 68.95 mm
• Flange shape: circle
• Flange diameter: 5.48 in. / 139.3 mm
• Flange offset: 2.11 in. / 53.6 mm
• Flange bolt size: 0.47 in. / 12 mm, M12-1.5 thread
• Hub centerbore diameter: 4.5 in. / 114.3 mm
• Lug bolt thread size: M12-1.25
• 4 mounting bolts to knuckle
• 5 flange bolts included
• ABS sensor not included
• Wiring harness not included

Fitment Details

Compatible with 2015 Kia Sedona, front; 2016 Kia Sedona, front; 2017-2019 Kia Sedona, front; and 2020-2021 Kia Sedona, front. For 2015 and 2017-2019 models, the listing notes standard grade. For 2016 and 2020-2021 models, the listing notes a 4.500 in. bolt circle diameter.

InMotion WA513395 is built for accurate fitment on Kia Sedona front hub applications, helping maintain proper wheel support and driveline connection. The OE-based design supports consistent installation dimensions, while the new ball-bearing construction is intended for long service life in the specified front position. If you are replacing a worn front wheel bearing and hub assembly on a Kia Sedona, WA513395 provides the key dimensions and mounting points needed for a direct replacement.

Common Reasons for Replacement

• Front wheel bearing noise or growling
• Excessive wheel play or looseness
• Vibration from a worn hub assembly
• Uneven wheel support at the front axle
• Damage to the original hub or flange mounting surfaces

Installation Notes

Verify spline count, flange dimensions, bolt pattern, and lug thread size before installation. This assembly uses a 4-bolt knuckle mounting pattern and includes 5 flange bolts, but does not include an ABS sensor or wiring harness. Confirm the vehicle’s front application and match the listed Kia Sedona year and note details before service. Part number WA513395 should be checked against the removed unit to confirm dimensional match.

Quality Assurance

InMotion manufactures these hub assemblies with strict quality-control standards and OE-based measurements for fit, performance, and durability. Part number WA513395 is a new component built as a direct replacement for the specified Kia Sedona front applications.
