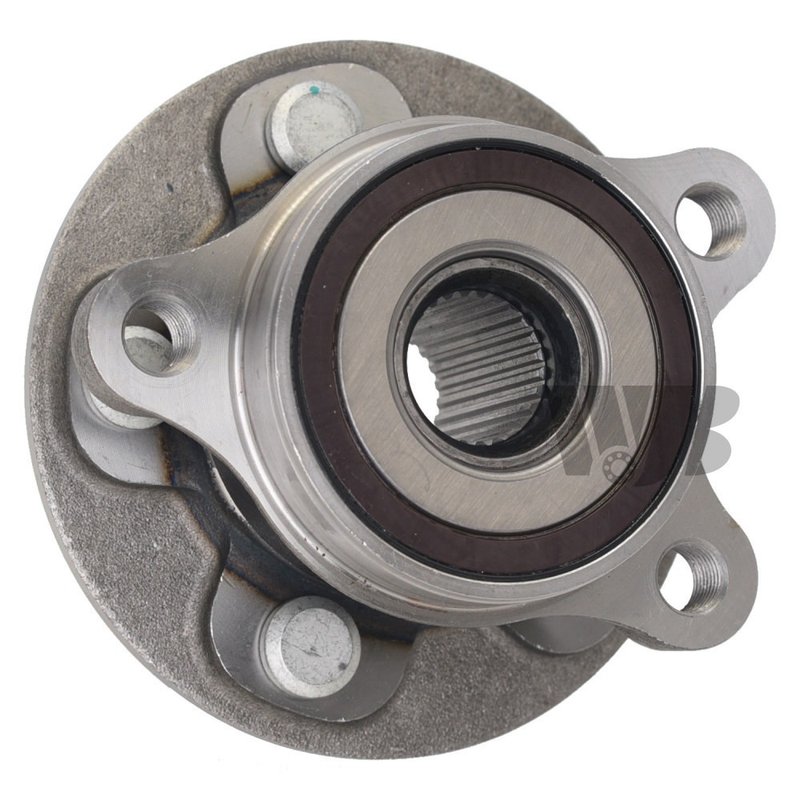

InMotion WA513402 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly

InMotion WA513402 is a front wheel bearing and hub assembly built for precise OE-style replacement on select Toyota applications. It is engineered from OE data and measurements to support correct fitment, stable wheel mounting, and long service life on the front axle.

Compatible With 2016-2024 Toyota Prius, 2017-2022 Toyota Prius Prime, 2019-2022 Toyota Prius AWD-e, and 2019-2024 Toyota Corolla front applications, this hub assembly is made for drivers replacing a worn or noisy front hub on a Toyota Corolla, Prius, or Prius Prime. Part number WA513402 is also a direct reference point when matching the correct front hub assembly for these vehicles.

Key Features

• Front wheel bearing and hub assembly for select Toyota models
• 26-spline design
• 5 wheel studs with a 3-bolt flange pattern
• Integrated anti-lock brake sensor included
• Hub pilot diameter: 84.9 mm
• Flange diameter: 134.9 mm
• Bolt circle diameter: 100.2 mm
• Wheel pilot diameter: 53.9 mm
• Brake pilot diameter: 54.9 mm
• Flange offset: 47.5 mm

Detailed Description

InMotion WA513402 is manufactured with high-precision processes and strict quality-control standards to match the original part’s dimensions and performance requirements. The assembly is built using OE data and measurements, which helps ensure proper alignment at the wheel end and consistent operation of the ABS system through the included sensor. For shoppers searching for a Toyota Corolla front wheel bearing hub assembly or a Prius front hub assembly, WA513402 provides the correct specification set for the listed applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or growling
• Excessive play in the wheel hub area
• ABS warning light caused by a failed hub sensor
• Uneven wheel rotation or vibration from hub wear
• Improper wheel mounting from a damaged hub assembly

Installation Notes and Tips

Confirm the vehicle’s year, model, and front position before ordering. Compare the spline count, bolt pattern, pilot diameters, and ABS sensor configuration to the original part before installation. Clean the mounting surface, inspect the knuckle and axle components for wear, and torque fasteners to the vehicle manufacturer’s specifications during installation.

Quality Assurance

InMotion manufactures this hub assembly under strict quality-control criteria and validates dimensions against OE data for fitment, performance, and durability. WA513402 is built as a direct replacement for the original front wheel bearing and hub assembly on the listed Toyota applications.

• Fits 2019-2024 Toyota Corolla, front
• Fits 2016-2022 Toyota Prius, front
• Fits 2019-2022 Toyota Prius AWD-e, front
• Fits 2017-2022 Toyota Prius Prime, front
