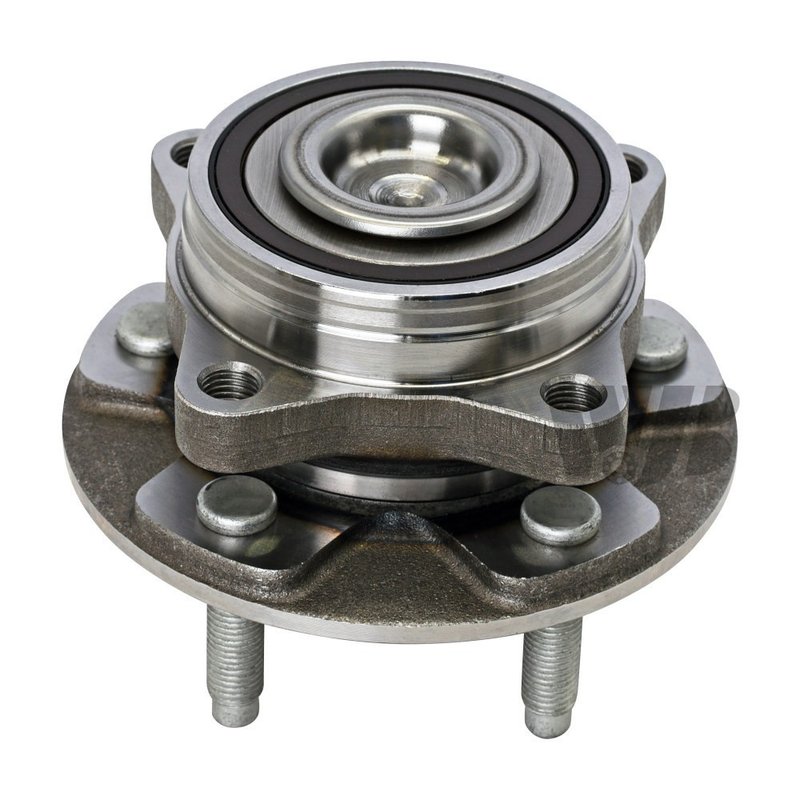

InMotion WA513410 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Jaguar

The InMotion WA513410 wheel bearing and hub assembly is a direct replacement front hub built from OE data and measurements for accurate fitment. It is engineered for the Jaguar F-Type and Jaguar XFR-S front axle applications, with the sensor and hub dimensions needed for proper wheel mounting and ABS system integration.

Key Features

• Front wheel bearing and hub assembly for Jaguar applications
• Fits 2014-2023 Jaguar F-Type, front, Standard Grade
• Fits 2013-2015 Jaguar XFR-S, front, Standard Grade
• Anti-lock brake sensor included for ABS-equipped vehicles
• 5 wheel studs with 4 flange bolt holes
• OE-based dimensions for fitment, performance, and service life
• Part number WA513410 for catalog and cross-reference use

Detailed Description

InMotion WA513410 is a front wheel bearing and hub assembly designed for Jaguar F-Type and Jaguar XFR-S models listed above. The assembly uses high-precision manufacturing and strict quality-control standards, with OE data and measurements used to match the original hub geometry. Key dimensions include a 63.25 wheel pilot diameter, 70.9 brake pilot diameter, 89.96 hub pilot diameter, 138.79 flange diameter, 44.51 flange offset, and a 107.95 bolt circle diameter. These specifications help ensure correct wheel seating, brake interface alignment, and hub installation on the front axle.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Restores a worn or noisy front wheel bearing and hub assembly
• Addresses ABS warning concerns related to a failed hub sensor
• Corrects wheel play, vibration, or uneven hub rotation at the front axle
• Replaces a damaged hub on Jaguar F-Type or Jaguar XFR-S front applications
• Supports proper wheel mounting when the original hub is no longer serviceable

Installation Notes and Tips

Confirm the vehicle year, model, and front position before ordering. Compare the hub pilot, wheel pilot, brake pilot, bolt circle, and flange measurements to the original part to verify match-up. Because the ABS sensor is included, inspect the connector routing and tone-ring interface during installation. Always follow factory service procedures, torque specifications, and bearing preload or axle fastener requirements for the specific Jaguar application.

Quality Assurance

InMotion manufactures this hub assembly using precision processes and controlled quality standards. The WA513410 is built as an OE-style direct replacement using application-specific data to support proper fitment and long-term service on the listed Jaguar front hub applications.
