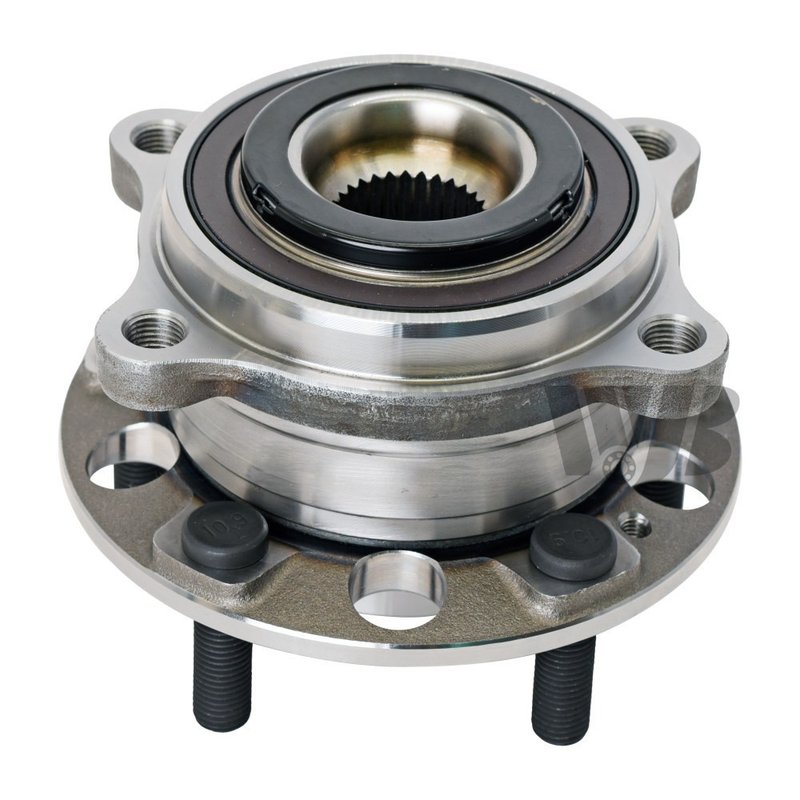

InMotion WA513446 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | InMotion WA513446 |
|---|---|
| Position | Rear and Front |
| Spline Quantity | 30 |
| Hub Pilot Diameter | 2.71 |
| Hub Pilot Diameter | 68.95 |
| Anti Lock Brake Sensor Included | No |
| Bearing Type | Ball |
| Flange Offset | 2.11 |
| Flange Offset | 53.5 |
| Flange Diameter | 139 |
| Flange Diameter | 5.47 |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | 0.47 |
| Flange Bolt Size (mm) | 12 |
| Flange Bolt Thread Size | M12-1.5 |
| Hub Centerbore Diameter (in) | 4.5 |
| Hub Centerbore Diameter (mm) | 114.3 |
| Lug Bolt Thread Size | M12-1.25 |
| New Or Remanufactured | New |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 5 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Total Hub Diameter (in) | 5.47 |
| Total Hub Diameter (mm) | 139 |
| Total Hub Height (in) | 4.1500000000000004 |
| Total Hub Height (mm) | 105.5 |
| Wiring Harness Included | No |
| Fits | Hyundai and Kia · 17 vehicles |
Direct replacement. Engineered from OE data for fit, performance, and longevity.
Ball bearing design. Precision-built hub assembly for smooth, dependable operation.
New assembly. Manufactured with strict quality control for consistent results.
Cross-references MOOG Hub Assemblies 513446, Timken HA590906 and 51750S1000 for the same application. See all 3.
Wheel Bearing Hub Assembly for Hyundai and Kia
InMotion WA513446 is a new wheel bearing and hub assembly built for driven rear and front applications on select Hyundai and Kia models. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and strict quality control for consistent performance and long service life.
Key Features
- New wheel bearing and hub assembly for driven applications
- Ball bearing design
- 30-spline hub configuration
- 5-bolt flange with M12-1.5 thread size
- Hub pilot diameter: 68.95 mm (2.71 in)
- Hub centerbore diameter: 114.3 mm (4.5 in)
- Flange diameter: 139 mm (5.47 in)
- Flange offset: 53.5 mm (2.11 in)
- No ABS sensor included
- No wiring harness included
Detailed Description
InMotion WA513446 is designed as a direct replacement wheel hub assembly for select Hyundai Palisade, Santa Cruz, Santa Fe, and Kia Carnival, Sorento, and Telluride applications. This hub assembly uses OE-based dimensions and application-specific engineering to support proper fitment, bearing operation, and durability in standard-grade vehicles. It cross-references Timken HA590906 and MOOG 513446 for the same application.
Fits 2022-2023 Hyundai Palisade, rear; 2020 Hyundai Palisade, rear; 2022-2023 Hyundai Santa Cruz, rear; 2022-2023 Hyundai Santa Fe, rear; 2021 Hyundai Palisade, front; 2019-2021 Hyundai Santa Fe, front; 2022 Kia Carnival, front; 2021-2022 Kia Sorento, rear; 2022 Kia Telluride, rear; 2020 Kia Telluride, rear; 2021 Kia Telluride, front.
Common Repair Uses
- Replacing a worn or noisy wheel bearing hub assembly
- Restoring smooth wheel rotation and stable hub support
- Addressing hub play or looseness at the wheel end
- Repairing driveline-related hub wear on driven axle positions
- Replacing a damaged hub assembly during suspension or brake service
Installation Notes and Tips
Verify the vehicle position, spline count, flange dimensions, and lug thread size before installation. This assembly does not include an ABS sensor or wiring harness, so reuse or service those components separately if required by the vehicle. Confirm the mounting pattern and OE reference numbers against the original part before final installation on Hyundai Palisade, Santa Fe, Santa Cruz, and Kia Telluride or Sorento applications.
Quality Assurance
InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is built from OE data and measurements to support correct fitment and dependable service as a direct replacement part.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Hyundai | Palisade | AWD | Rear | Standard Grade |
| 2023 | Hyundai | Santa Cruz | AWD | Rear | Standard Grade |
| 2023 | Hyundai | Santa Fe | AWD | Rear | Standard Grade |
| 2022 | Hyundai | Palisade | AWD | Rear | Standard Grade |
| 2022 | Hyundai | Santa Cruz | AWD | Rear | Standard Grade |
| 2022 | Hyundai | Santa Fe | AWD | Rear | Standard Grade |
| 2022 | Kia | Carnival | — | Front | Standard Grade |
| 2022 | Kia | Sorento | AWD | Rear | Standard Grade |
| 2022 | Kia | Telluride | AWD | Rear | Standard Grade |
| 2021 | Hyundai | Palisade | AWD | Front | Standard Grade |
| 2021 | Hyundai | Santa Fe | AWD | Front | Standard Grade |
| 2021 | Kia | Sorento | AWD | Rear | Standard Grade |
| 2021 | Kia | Telluride | AWD | Front | Standard Grade |
| 2020 | Hyundai | Palisade | AWD | Rear | Standard Grade |
| 2020 | Hyundai | Santa Fe | AWD | Front | Standard Grade |
| 2020 | Kia | Telluride | AWD | Rear | Standard Grade |
| 2019 | Hyundai | Santa Fe | AWD | Front | Standard Grade |
