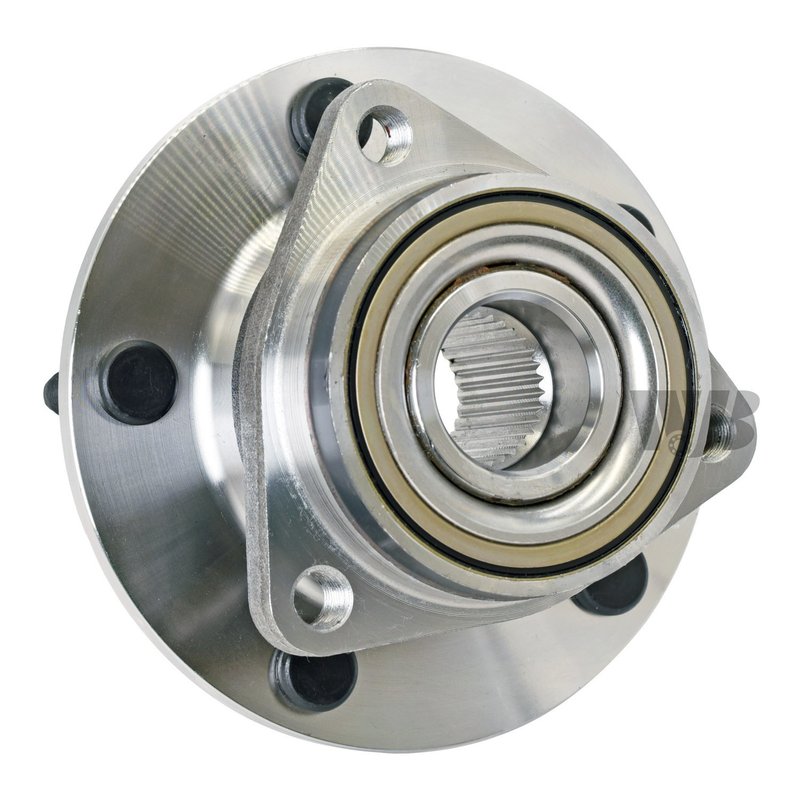

InMotion WA515006HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ram 1500

The InMotion WA515006HD wheel bearing and hub assembly is a direct replacement for the front hub on select 1994-1999 Dodge Ram 1500 models. Built from OE data and measurements, it is engineered for precise fitment, stable wheel support, and long service life.

For buyers searching for a front wheel bearing hub assembly for 1994-1999 Dodge Ram 1500 applications, WA515006HD provides the correct driven hub configuration with the dimensions and mounting points needed for a proper OE-style replacement.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Fits 1994-1999 Dodge Ram 1500, front
• Driven hub design with 33 splines
• Roller bearing construction for smooth wheel rotation
• OE-based engineering for fitment, performance, and durability
• Hub pilot diameter: 78.3 mm (3.08 in)
• Flange diameter: 172 mm (6.77 in)
• Flange offset: 51 mm (2.01 in)
• 5-bolt flange with 1/2"-20 thread size
• 3-bolt knuckle mounting pattern
• Lug bolt thread size: M14-1.5
• ABS sensor not included
• Wiring harness not included

Detailed Description

InMotion WA515006HD is a new front wheel bearing and hub assembly designed for 1994-1999 Dodge Ram 1500 trucks. It uses OE data and dimensional measurements to match the original hub geometry, including the 33-spline driven configuration, 140 mm hub centerbore, and 5-bolt flange layout. The roller bearing design supports consistent wheel movement, while the precision-machined hub helps maintain proper alignment at the wheel end.

This part cross-references MOOG Hub Assemblies 515006 and SKF BR930256 for the same application. If you are replacing a worn front hub on a Dodge Ram 1500, WA515006HD is a direct-fit option for the specified years and front position.

What It Helps Fix

• Wheel play or looseness at the front hub
• Grinding, humming, or rumbling from a worn bearing
• Uneven wheel support caused by hub wear
• Incorrect fitment from a damaged or mismatched replacement hub
• Front-end vibration related to hub and bearing wear

Installation Notes and Tips

Confirm the vehicle is a 1994-1999 Dodge Ram 1500, front application before installation. Verify spline count, flange bolt pattern, hub pilot diameter, and lug thread size against the original part. Because the ABS sensor and wiring harness are not included, reuse or transfer only the components required by the vehicle configuration. Clean the mounting surface and inspect related suspension and brake components during service.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is built to match the designated application using OE-based specifications for fit, performance, and longevity.
