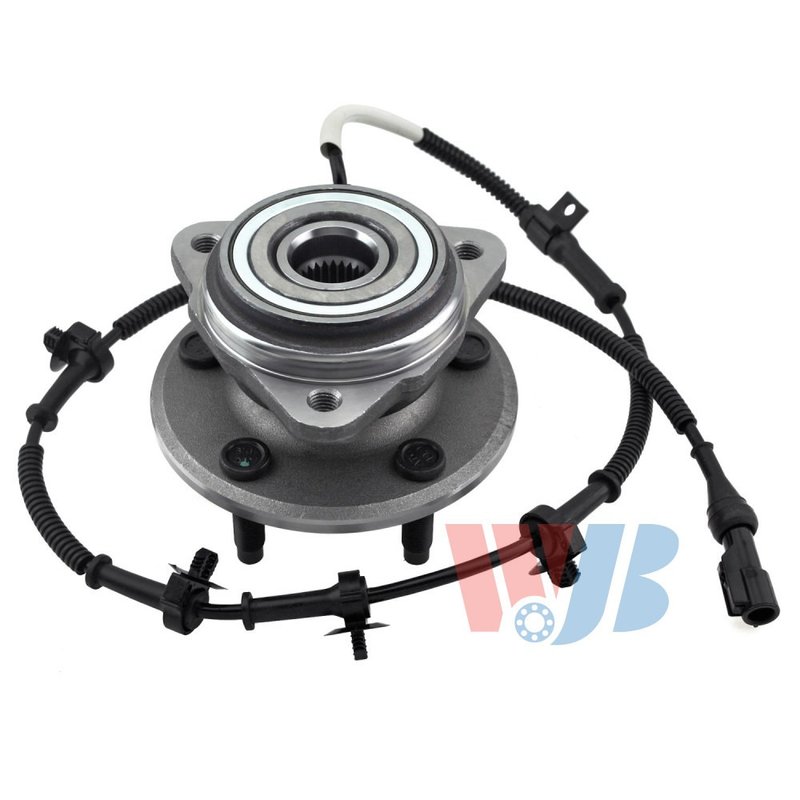

InMotion WA515013 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Ranger and B-Series

InMotion WA515013 is a front wheel bearing and hub assembly built for direct replacement on select Ford Ranger and Mazda B-Series trucks. It is engineered from OE data and measurements to match the original fit, mounting points, and operating dimensions for the listed applications.

Fits 2000-2002 Ford Ranger, front; fits 2001-2002 Mazda B3000, front; fits 2000-2002 Mazda B4000, front.

Key Features

• Direct replacement wheel bearing and hub assembly for the front axle
• 27-spline hub design
• 5 wheel studs with a 4.5 in. bolt circle diameter (114.3 mm)
• 3 flange bolt holes with a triangular flange shape
• ABS sensor included
• Wheel pilot diameter: 2.78 in.
• Brake pilot diameter: 2.78 in.
• Hub pilot diameter: 3.94 in.
• Flange offset: 2.23 in.
• Flange diameter: 5.89 in.

Detailed Description

WA515013 is manufactured with strict quality-control criteria and high-precision processes to deliver consistent fitment on the specified Ford Ranger and Mazda B3000/B4000 front applications. The assembly is built to OE dimensions so it aligns with the original hub, bearing, and sensor interface requirements, helping maintain proper wheel mounting and ABS system function where equipped. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

For shoppers searching for a front wheel bearing hub assembly for 2000-2002 Ford Ranger or a front hub assembly for 2001-2002 Mazda B3000 and 2000-2002 Mazda B4000, WA515013 provides the specified bolt pattern, stud count, and pilot dimensions needed for the listed vehicles.

What It Is Used For

• Replacing a worn or noisy front wheel hub assembly
• Restoring proper wheel mounting on the front axle
• Addressing ABS-related hub sensor issues on equipped vehicles
• Correcting looseness, vibration, or rough bearing operation at the wheel end
• Servicing a damaged hub on Ford Ranger and Mazda B-Series front applications

Installation Notes and Tips

Confirm the vehicle year, make, model, and front position before ordering. Verify the 27-spline configuration, 5-stud pattern, and 114.3 mm bolt circle against the original part. Inspect the mating surfaces, axle interface, and ABS connector condition during installation, and torque all fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE data and dimensional measurements to support accurate fitment, performance, and service life on the listed applications. The part is produced under strict quality-control criteria for direct replacement use.
