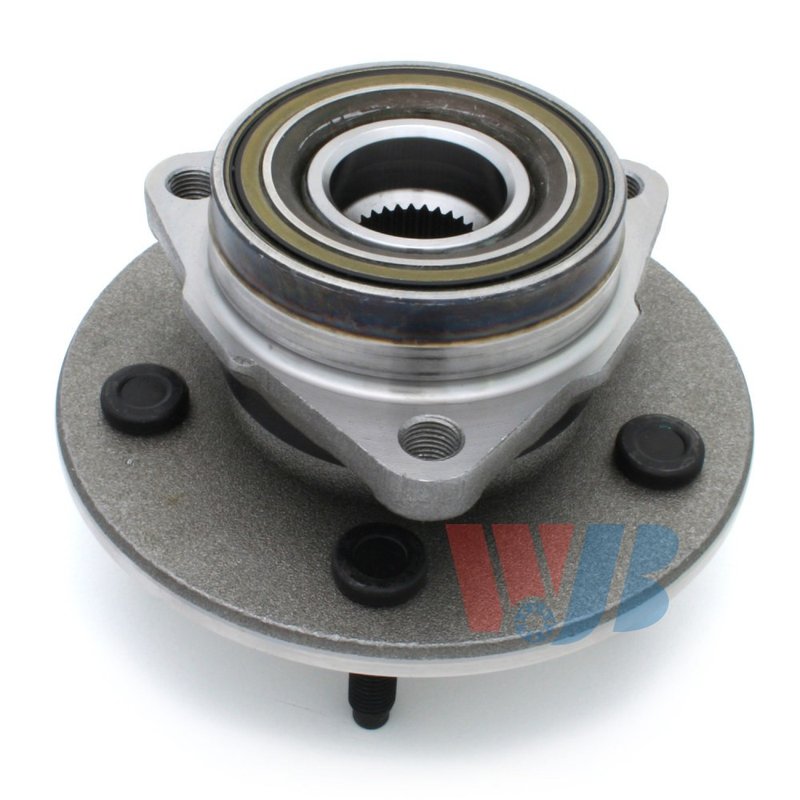

InMotion WA515017 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Ford F-150

InMotion WA515017 is a front wheel bearing and hub assembly built for 1997-2000 Ford F-150 Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and controlled quality checks to support proper alignment, smooth rotation, and long service life.

• Fits 1997-2000 Ford F-150, front
• Part number: WA515017
• 33-spline hub design
• 5 wheel studs and 3 flange bolt holes
• Triangular flange shape with 7.226 flange diameter
• Wheel pilot diameter: 3.415
• Brake pilot diameter: 3.542
• Hub pilot diameter: 3.91
• Flange offset: 1.94
• Bolt circle diameter: 135.0 / 5.316
• ABS sensor not included

OE-Style Fitment and Construction

This InMotion wheel bearing and hub assembly is made for front-end service on the Ford F-150 and follows original equipment dimensions for the designated application. The hub assembly uses a 33-spline configuration, five wheel studs, and a triangular flange layout to match the specified mounting pattern. WA515017 is a direct replacement option for restoring hub function on 1997-2000 Ford F-150 trucks, and the part number WA515017 should be verified against the vehicle’s existing hub before installation.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• Uneven wheel mounting caused by worn hub components
• Vibration or instability from a damaged front hub assembly
• Service replacement for a worn Ford F-150 front hub

Installation Notes

Confirm spline count, bolt circle diameter, flange dimensions, and wheel pilot measurements before installation. Because the ABS sensor is not included, reuse or replace the vehicle’s sensor as needed based on the original setup. For best results, inspect related front-end components, clean the mounting surface, and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and strict quality-control criteria to support correct fitment and dependable performance in the specified Ford F-150 applications.
