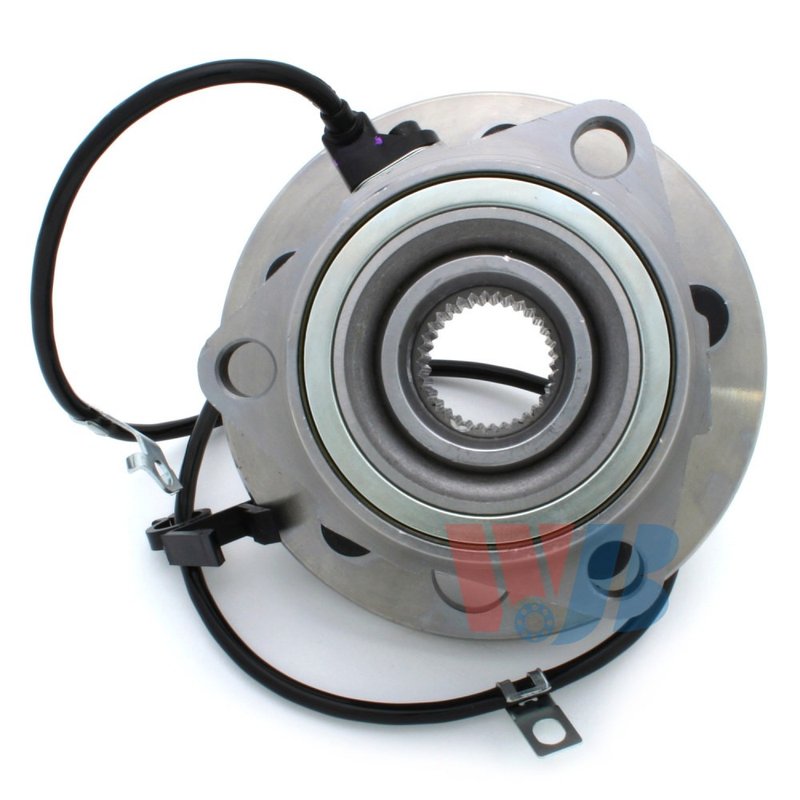

InMotion WA515019 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Astro and Safari

Restore front-end wheel support with this InMotion wheel bearing and hub assembly, part number WA515019. Built for 1995-2002 Chevrolet Astro and 1995-2002 GMC Safari front applications, it is engineered as a direct replacement using OE data and measurements for proper fit, performance, and service life.

• Fits 1995-2002 Chevrolet Astro, front
• Fits 1995-2002 GMC Safari, front
• 33-spline hub design
• 5 wheel studs with a 5.0 in. bolt circle diameter
• 3 flange bolt holes and triangular flange shape
• ABS sensor included
• Hub pilot diameter: 3.91 in.
• Wheel pilot diameter: 3.06 in.
• Brake pilot diameter: 3.08 in.
• Flange diameter: 6.625 in. with 2.94 in. offset

OE-Style Fitment and Construction

InMotion WA515019 is manufactured with high-precision processes and strict quality-control standards to match the original hub assembly dimensions. This front wheel bearing and hub assembly is built for Chevrolet Astro and GMC Safari models from 1995 through 2002, making it a direct replacement choice for front wheel service where correct hub geometry, stud pattern, and ABS sensor integration matter. The triangular flange, 33-spline configuration, and OE-based measurements help maintain proper wheel mounting and bearing alignment.

Common Issues This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light caused by a failed hub sensor assembly
• Wheel mounting issues related to worn studs or hub surfaces
• Vibration or uneven front-end feel linked to hub wear

Installation Notes and Tips

Confirm front position and verify all hub dimensions, bolt circle, and ABS sensor connection before installation. Clean the mounting surface thoroughly and inspect related components such as the axle, knuckle, and brake hardware for wear. For 1995-2002 Chevrolet Astro and 1995-2002 GMC Safari front service, follow factory torque specifications and use proper bearing/hub installation procedures to avoid premature wear.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements, with strict quality-control criteria applied during production. Part number WA515019 is built as a direct replacement for the designated applications and is intended to deliver consistent fitment and dependable operation.
