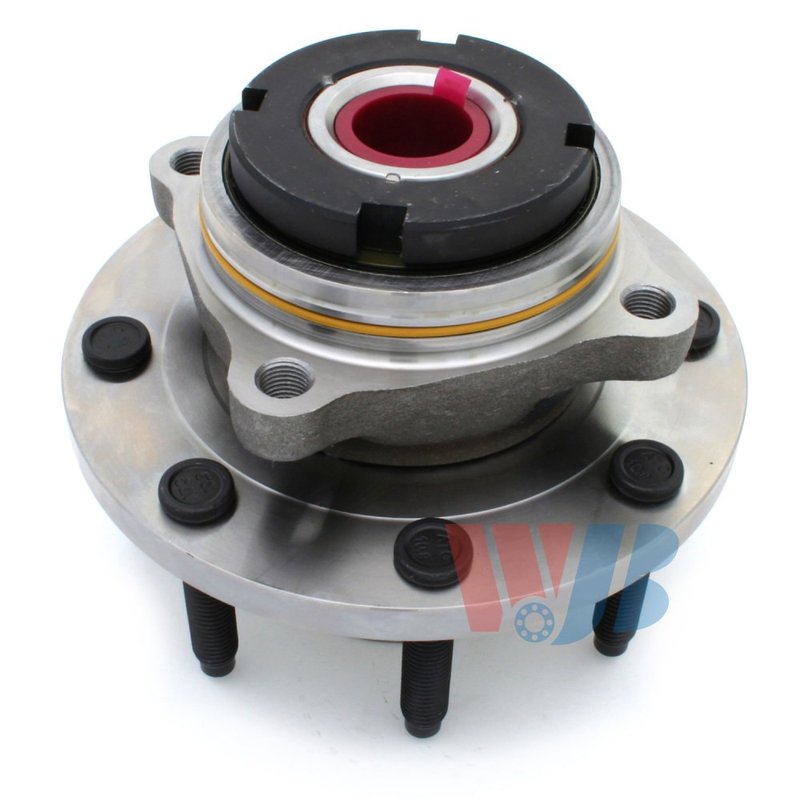

InMotion WA515021 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

InMotion WA515021 is a front wheel bearing and hub assembly built for 1999-2001 Ford F-250 Super Duty and 1999-2001 Ford F-350 Super Duty applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and controlled quality standards for consistent wheel-end performance.

Key Features

• Direct replacement front hub assembly for Ford Super Duty trucks
• 55-spline design with 8 wheel studs
• 4 flange bolt holes and modified circle flange shape
• Wheel pilot diameter: 4.92
• Brake pilot diameter: 4.92
• Hub pilot diameter: 3.33
• Flange diameter: 7.99 with 2.16 flange offset
• Anti-lock brake sensor not included
• Part number WA515021 for easy identification

Detailed Description

This InMotion wheel bearing and hub assembly is built for front-end service on the Ford F-250 Super Duty and Ford F-350 Super Duty. The design follows OE measurements to support proper fitment, wheel mounting, and hub alignment, making WA515021 a practical replacement when servicing the front wheel end on 1999-2001 Ford F-250 Super Duty and 1999-2001 Ford F-350 Super Duty trucks. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the hub
• Uneven wheel-end rotation caused by bearing wear
• Front hub replacement needs on Ford Super Duty trucks
• Fitment issues when replacing an OE-style hub assembly

Installation Notes

Verify front axle and hub specifications before installation, including spline count, bolt circle diameter, flange dimensions, and stud count. Confirm that the vehicle uses the listed front application for 1999-2001 Ford F-250 Super Duty or 1999-2001 Ford F-350 Super Duty. The anti-lock brake sensor is not included, so reuse or source the correct sensor arrangement as required by the vehicle.

Quality Assurance

InMotion manufactures these hub assemblies with high-precision processes and strict quality-control criteria. WA515021 is engineered for designated applications using OE data and measurements to support fitment, performance, and service life.
