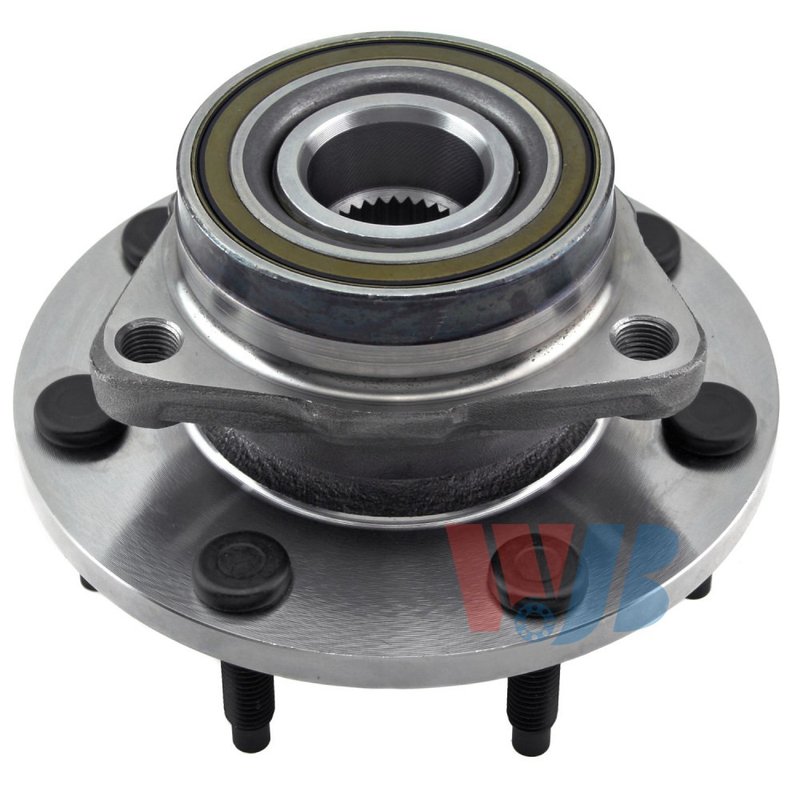

InMotion WA515022 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Ford Trucks

InMotion WA515022 is a front wheel bearing and hub assembly built for direct replacement on select Ford F-150 and Ford F-250 applications. It is engineered from OE data and measurements to match the original fit, performance, and service life expectations for the designated vehicles.

With a 33-spline design, 7 wheel studs, and a triangular flange layout, this hub assembly is built to match the original mounting and wheel interface requirements. It is a practical choice for a Ford F-150 front hub assembly or a Ford F-250 front wheel bearing and hub replacement when restoring proper wheel support and rotation.

Key Features

• Part number: WA515022
• Front wheel bearing and hub assembly
• 33 spline quantity
• 7 wheel studs
• 3 flange bolt holes
• Triangular flange shape
• Bolt circle diameter: 150.0 mm / 5.91 in
• Flange diameter: 181.0 mm
• Flange offset: 49.2 mm
• Wheel pilot diameter: 86.8 mm
• Brake pilot diameter: 92.3 mm
• Hub pilot diameter: 99.3 mm
• Anti-lock brake sensor not included

Detailed Description

InMotion WA515022 is manufactured with high-precision processes and strict quality-control standards to deliver a direct-fit replacement for the original front hub assembly. The design follows OE data and measurements, helping ensure correct alignment at the wheel mounting surface, brake interface, and hub pilot dimensions. For drivers servicing a 2000 Ford F-150 front hub or a 1997-1999 Ford F-250 front wheel bearing assembly, this part provides the dimensional accuracy needed for proper installation and operation.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2000 Ford F-150, front
• Fits 1997-1999 Ford F-250, front
• Fits 1997 Ford F-250 HD, front

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• Excessive wheel play or looseness at the hub
• Uneven wheel support caused by hub wear
• Improper wheel mounting fit at the front axle
• Restoration of correct front-end hub function on Ford trucks

Installation Notes and Tips

Confirm the vehicle year, model, and front position before ordering. Verify spline count, bolt circle diameter, flange dimensions, and pilot diameters against the original part to ensure correct match-up. Because the anti-lock brake sensor is not included, reuse or source the sensor separately if your application requires one.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fitment and durability on the specified Ford applications. Part number WA515022 is built as a direct replacement for the original front hub assembly on listed vehicles.
