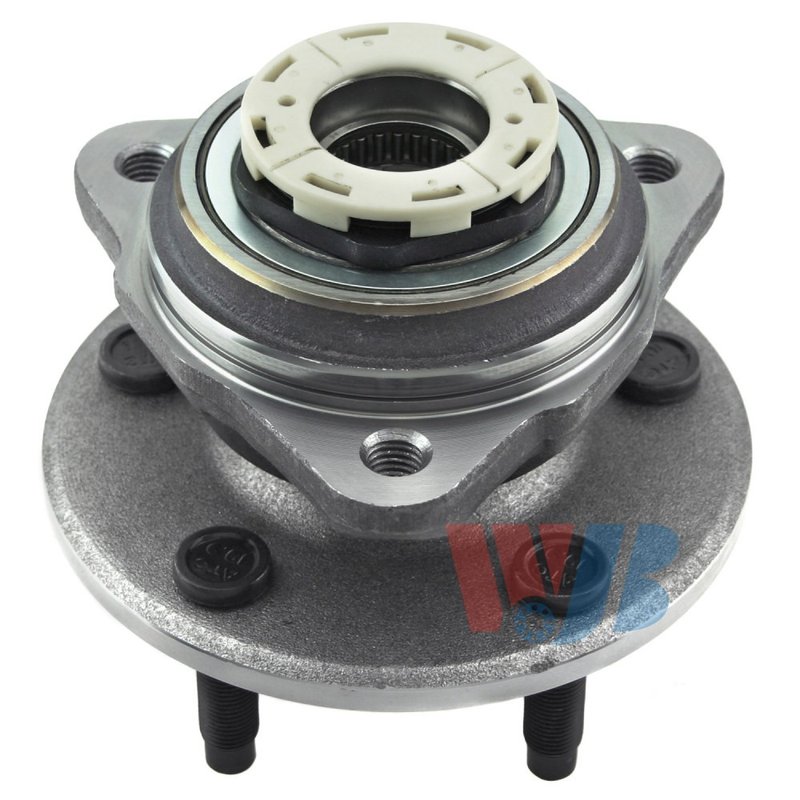

InMotion WA515026 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ranger and B-Series

InMotion WA515026 is a front wheel bearing and hub assembly built for precise OE-style fitment on select Ford Ranger and Mazda B-Series trucks. It is engineered from OE data and measurements to support correct alignment, smooth wheel rotation, and dependable service life.

Fits 1998-2000 Ford Ranger, front. Fits 1998-2000 Mazda B3000, front. Fits 1998-2000 Mazda B4000, front.

Key Features

• Direct replacement wheel bearing and hub assembly for the front axle
• 42-spline design with a 5-stud wheel mounting pattern
• Triangular flange shape with 3 flange bolt holes
• Wheel pilot diameter: 70.4 mm
• Brake pilot diameter: 71.9 mm
• Hub pilot diameter: 100.1 mm
• Bolt circle diameter: 114.3 mm (4.5 in.)
• Flange offset: 56.2 mm
• ABS sensor not included

Detailed Description

InMotion WA515026 is manufactured with high-precision processes and strict quality-control standards to match the original hub assembly dimensions for the listed applications. This front wheel bearing and hub assembly is designed for 1998-2000 Ford Ranger, 1998-2000 Mazda B3000, and 1998-2000 Mazda B4000 models, making it a direct-fit replacement for service work on the front suspension and wheel-end assembly. The part number WA515026 is built around OE measurements to help maintain proper wheel mounting, bearing support, and hub location. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Replacement for a worn or noisy front wheel bearing and hub assembly
• Correction for wheel-end looseness or play at the front hub
• Service part for damaged wheel studs or hub mounting surfaces
• Repair for vibration or rough rotation caused by hub wear
• Direct replacement when servicing the front hub on Ranger and Mazda B-Series trucks

Installation Notes and Tips

Confirm the vehicle year, make, model, and front position before installation. Verify spline count, bolt circle diameter, flange bolt hole quantity, and pilot diameters against the original part to ensure proper fitment. Because the ABS sensor is not included, reuse or transfer the existing sensor only if the vehicle configuration requires one and the original component is serviceable. Always inspect related steering and suspension components during hub replacement.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support consistent fit and performance on the listed Ford Ranger and Mazda B-Series applications.
