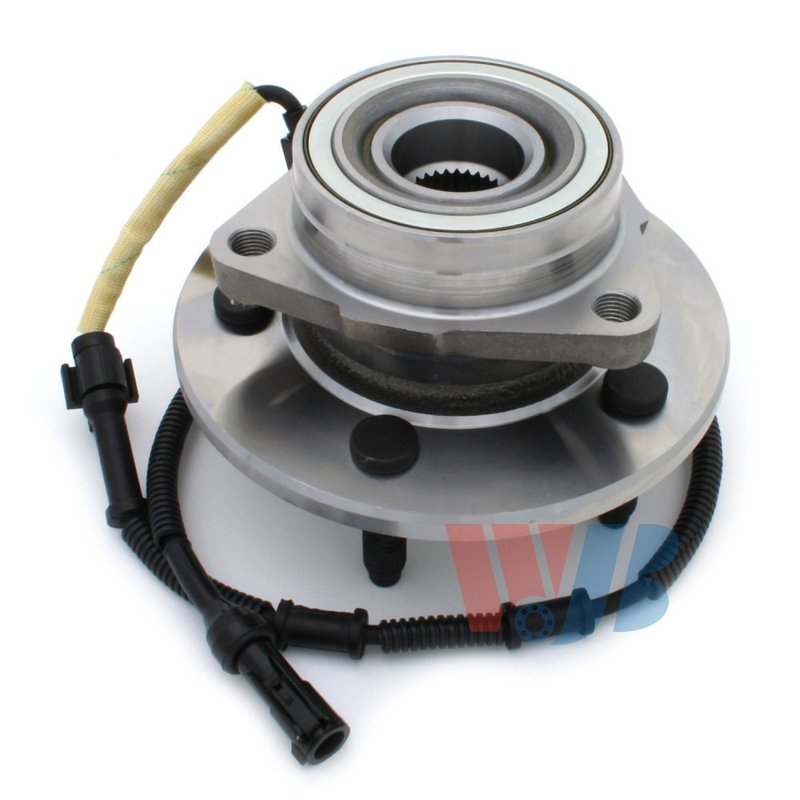

InMotion WA515029 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Ford F-150

InMotion WA515029 is a front wheel bearing and hub assembly built for 2000-2004 Ford F-150 and 2004 Ford F-150 Heritage applications. It is engineered from OE data and measurements for direct replacement fitment, with the precision needed for dependable wheel support and ABS function.

This hub assembly includes a 33-spline design, 5 wheel studs, a triangular flange shape, and an integrated anti-lock brake sensor. It also features a 3-bolt flange, 181.0 flange diameter, 49.2 flange offset, 134.9 bolt circle diameter, 99.3 hub pilot diameter, 89.9 brake pilot diameter, and 86.7 wheel pilot diameter. Part number WA515029 is also cross-referenced to NHUB-20 for the same application.

Key Features

• Direct replacement wheel bearing and hub assembly for the front position
• Fits 2000-2004 Ford F-150, front
• Fits 2004 Ford F-150 Heritage, front
• 33 spline count with 5 wheel studs
• Integrated anti-lock brake sensor included
• Triangular flange design with 3 flange bolt holes
• OE-based dimensions for accurate hub and wheel interface

Detailed Description

InMotion WA515029 is designed for Ford F-150 front hub service where correct bearing support, wheel mounting geometry, and ABS sensor integration matter. Manufactured with strict quality-control criteria and built using state-of-the-art production methods, this wheel bearing and hub assembly is intended as a direct replacement for the original front hub on the listed trucks. The OE-based measurements help maintain proper fitment at the wheel pilot, brake pilot, hub pilot, and bolt circle locations, supporting consistent installation on 2000-2004 Ford F-150 and 2004 Ford F-150 Heritage models. If you are replacing a worn front hub on a Ford F-150, WA515029 provides the specified dimensions and sensor configuration for the application.

What It Helps Address

• Front wheel bearing noise or rough rotation
• Excessive wheel play from a worn hub assembly
• ABS warning light concerns related to the front hub sensor
• Improper wheel mounting caused by damaged hub interfaces
• Fitment issues when replacing the original front hub on a Ford F-150

Installation Notes and Tips

Confirm the vehicle is a 2000-2004 Ford F-150 or 2004 Ford F-150 Heritage with front hub service before ordering. Verify spline count, bolt circle, flange offset, and sensor configuration against the original part before installation. Clean the mounting surfaces thoroughly and inspect related components such as the axle, knuckle, and brake hardware for wear that could affect hub performance. For best results, follow factory service procedures and torque specifications during installation.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements and applies strict quality-control criteria to support accurate fitment, performance, and service life. WA515029 is built as an OE-style replacement for the listed Ford truck applications.
