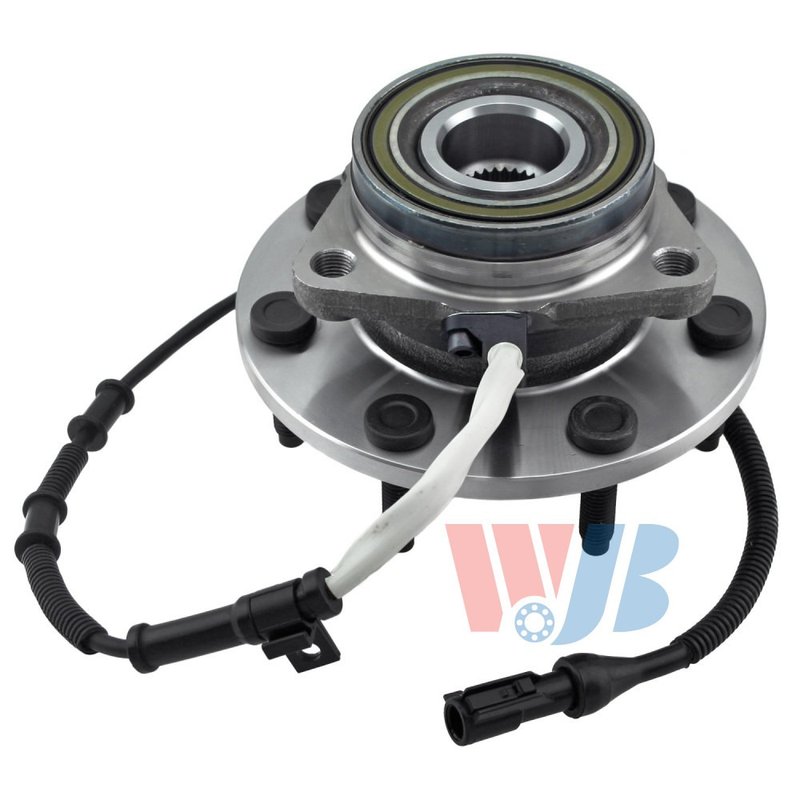

InMotion WA515030 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Ford Trucks

InMotion WA515030 is a front wheel bearing and hub assembly built for direct replacement service on select Ford trucks. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life.

• Front wheel bearing and hub assembly
• 33-spline design
• 7 wheel studs
• 3 flange bolt holes
• Triangular flange shape
• Anti-lock brake sensor included
• Bolt circle diameter: 150.0 mm / 5.91 in
• Hub pilot diameter: 3.91 in
• Wheel pilot diameter: 3.42 in
• Brake pilot diameter: 3.64 in
• Flange diameter: 7.15 in
• Flange offset: 1.93 in

This InMotion wheel bearing and hub assembly is manufactured with strict quality-control criteria and high-precision production methods. It is built for the front position on 1997-1999 Ford F-250, 2000-2003 Ford F-150, and 2004 Ford F-150 Heritage Standard Grade applications. Part number WA515030 is a direct replacement option for service work where OE-style dimensions and sensor integration matter.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Replacing a worn or noisy front hub assembly
• Restoring proper wheel support and rotation
• Addressing ABS warning concerns related to the hub sensor
• Correcting looseness, vibration, or bearing play at the front wheel
• Servicing a damaged hub on Ford F-150, Ford F-150 Heritage, or Ford F-250 front applications

Installation Notes

Verify spline count, bolt circle diameter, flange dimensions, and sensor configuration before installation. Confirm front-position fitment for your specific Ford F-150, Ford F-150 Heritage, or Ford F-250 application, and compare the original hub to part number WA515030 before assembly. Proper torque procedures and clean mounting surfaces are important for accurate installation.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support fit accuracy and dependable performance. The design is application-specific for the listed Ford truck fitments and includes the anti-lock brake sensor configuration shown in the product data.
