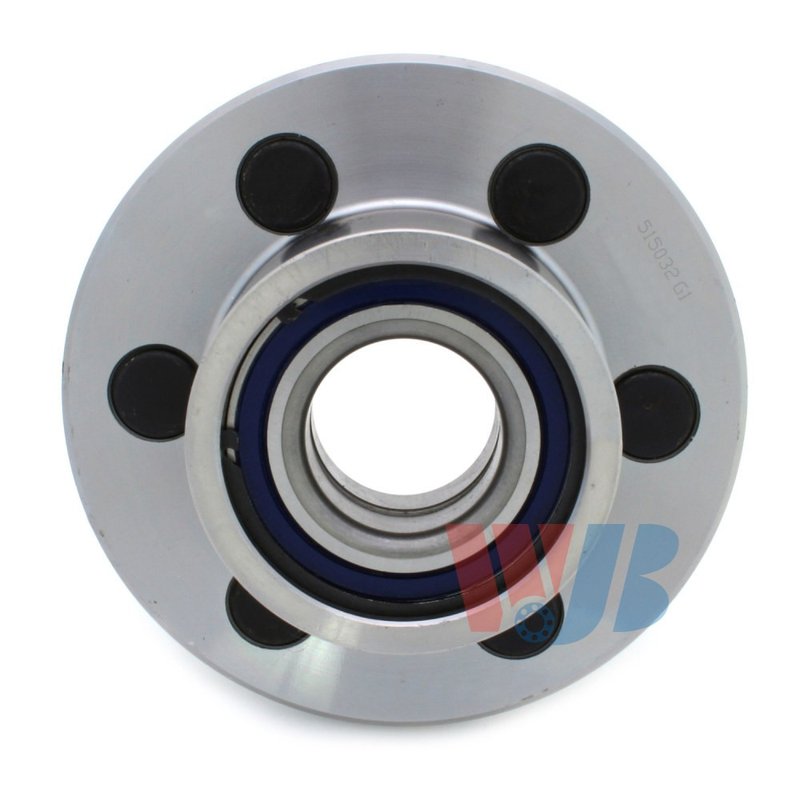

InMotion WA515032 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Dakota and Durango

The InMotion WA515032 wheel bearing and hub assembly is a direct replacement for select front applications on the Dodge Dakota and Dodge Durango. Built from OE data and measurements, it is engineered for proper fitment, stable wheel support, and long service life.

• Direct replacement wheel bearing and hub assembly for the front position
• Precision-manufactured using OE data and dimensional measurements
• 6 wheel studs with a 4.5 in. bolt circle diameter (114.3 mm)
• Wheel pilot diameter: 2.81 in.
• Brake pilot diameter: 2.885 in.
• Flange diameter: 6.31 in. with 2.271 in. flange offset
• ABS sensor not included
• Part number: WA515032

Fitment Details

Compatible With:

• Fits 1997-2004 Dodge Dakota, front, Standard Grade
• Fits 1999-2003 Dodge Durango, front, Standard Grade

This front wheel hub assembly for Dodge Dakota and Dodge Durango applications is built for vehicles that require a 6-stud hub with a 114.3 mm bolt circle. The WA515032 is engineered as an OE-style replacement to match the original mounting dimensions and support consistent wheel and brake interface. If you are replacing a worn front hub on a 1997-2004 Dodge Dakota or a 1999-2003 Dodge Durango, WA515032 provides the specified hub geometry for the listed applications.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• Uneven wheel mounting caused by worn hub components
• Brake rotor alignment issues related to hub wear
• Service replacement for a damaged front hub assembly

Installation Notes

Verify the vehicle’s year, model, and front application before installation. Confirm the 6-stud pattern, 4.5 in. bolt circle diameter, and pilot dimensions match the original part. Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle requires one. Always inspect related components such as the axle nut, brake rotor, and mounting surfaces during service.

Quality Assurance

InMotion manufactures these hub assemblies with strict quality-control criteria and state-of-the-art production methods. Each WA515032 is built to the specified application using OE data and measurements to support fitment, performance, and durability.
