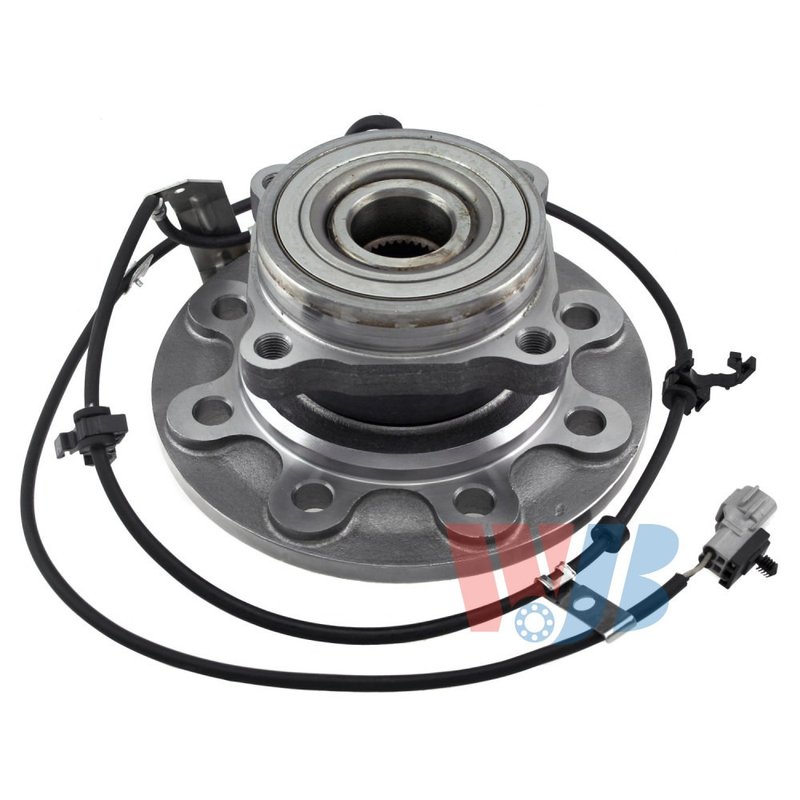

InMotion WA515035 Wheel Bearing and Hub Assembly - Front Right

Front Right Wheel Hub Assembly for Ram 2500

InMotion WA515035 is a front right wheel bearing and hub assembly built for 1998-1999 Dodge Ram 2500 applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration needed for the specified vehicle position.

• Fits 1998-1999 Dodge Ram 2500, front right
• Part number: WA515035
• 33-spline hub design
• 8 wheel studs with 15.3 stud size
• 4-bolt flange pattern with modified circle flange shape
• 165.1 mm / 6.5 in bolt circle diameter
• ABS sensor included
• Hub pilot diameter: 4.484
• Wheel pilot diameter and brake pilot diameter: 4.77
• Flange diameter: 8.42 with 2.965 flange offset

OE-Style Fitment and Construction

This wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards to match the original part’s fit and function. For Dodge Ram 2500 front right service, WA515035 is built around the listed OE dimensions so the hub seats correctly, the wheel mounts properly, and the ABS sensor interface is accounted for during replacement. The part number WA515035 is a direct-reference choice for 1998-1999 Dodge Ram 2500 front right hub service.

Common Problems This Part Can Address

• Wheel bearing noise from the front right hub area
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failed hub-mounted sensor assembly
• Uneven wheel mounting caused by worn hub pilot surfaces
• Vibration or rough rotation from a deteriorated bearing assembly

Installation Notes and Tips

Confirm the vehicle is a 1998-1999 Dodge Ram 2500 with front right application before ordering. Verify spline count, bolt circle diameter, stud quantity, and ABS sensor configuration against the removed part before installation. Clean the mounting surface, inspect the axle and knuckle interface for wear, and torque fasteners to the vehicle manufacturer’s specifications during reassembly.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support proper fitment and service life. WA515035 is built as a direct replacement for the original front right hub assembly on the listed Dodge Ram 2500 applications.
