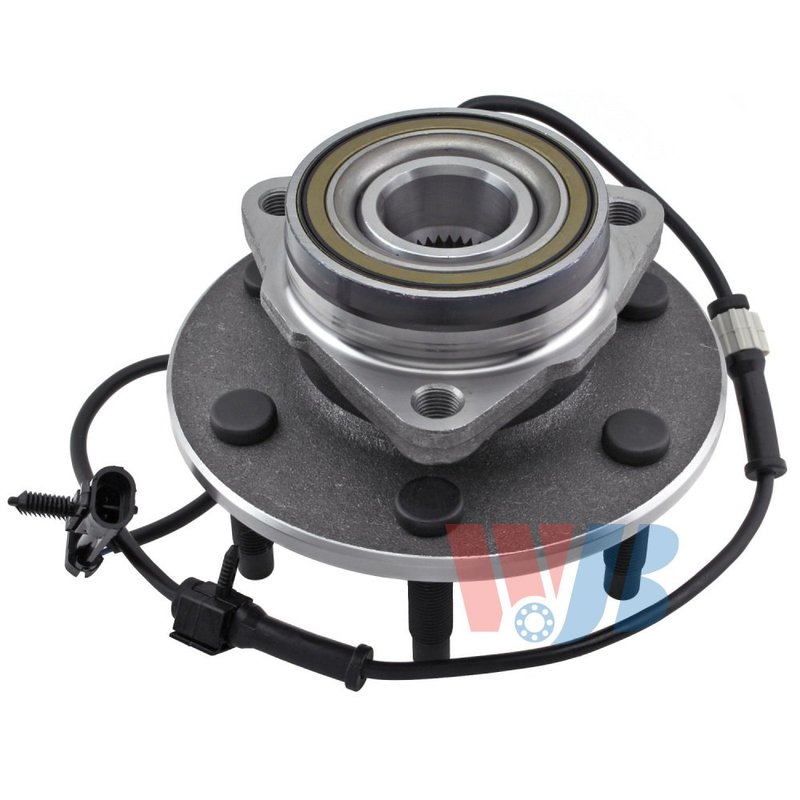

InMotion WA515036 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly

InMotion WA515036 is a front wheel bearing and hub assembly built for direct replacement on a wide range of GM trucks and SUVs. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and consistent service life on applications such as Chevrolet Silverado 1500, Tahoe, and GMC Sierra 1500.

This assembly is manufactured with precision processes and strict quality-control standards. It includes the ABS sensor and is built around the OE-style hub dimensions needed for proper wheel, brake, and axle interface.

Key Features

• Front wheel bearing and hub assembly for driveline and axle service
• Direct replacement design based on OE data and measurements
• ABS sensor included
• 33 spline quantity
• 6 wheel studs with 3 flange bolt holes
• Bolt circle diameter: 126.0 mm / 4.961 in
• Hub pilot diameter: 3.91 in
• Wheel pilot diameter: 3.064 in
• Brake pilot diameter: 3.085 in
• Flange diameter: 7.087 in
• Flange offset: 1.961 in

Detailed Description

InMotion WA515036 is designed for front-end service on GM full-size trucks and SUVs that require a hub assembly with integrated ABS sensing. The OE-based dimensions help maintain correct wheel mounting, brake alignment, and hub location for vehicles including Chevrolet Express 1500, Chevrolet Silverado 1500, Chevrolet Tahoe, GMC Savana 1500, and GMC Sierra 1500. The part number WA515036 is a practical OE-style replacement for technicians and owners servicing worn or noisy front hubs.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2003-2014 Chevrolet Express 1500, front, Standard Grade
• Fits 2003-2014 GMC Savana 1500, front, Standard Grade
• Fits 2007 Chevrolet Silverado 1500 Classic, front, Standard Grade
• Fits 2007 GMC Sierra 1500 Classic, front, Standard Grade
• Fits 2002-2006 Cadillac Escalade, front, Standard Grade
• Fits 2003-2006 Cadillac Escalade ESV, front, Standard Grade
• Fits 2002-2006 Cadillac Escalade EXT, front, Standard Grade
• Fits 2002-2006 Chevrolet Avalanche 1500, front, Standard Grade
• Fits 1999-2006 Chevrolet Silverado 1500, front, Standard Grade
• Fits 2000-2006 Chevrolet Suburban 1500, front, Standard Grade
• Fits 2000-2006 Chevrolet Tahoe, front, Standard Grade
• Fits 1999-2006 GMC Sierra 1500, front, Standard Grade
• Fits 2000-2006 GMC Yukon, front, Standard Grade
• Fits 2000-2006 GMC Yukon XL 1500, front, Standard Grade
• Fits 2003-2005 Chevrolet Express 2500, front, Standard Grade
• Fits 2003-2005 GMC Savana 2500, front, Standard Grade

Installation Notes and Tips

Confirm the vehicle’s front hub specifications before installation, including spline count, bolt circle diameter, and pilot diameters. Inspect the mating surfaces, axle interface, and brake components for wear or damage before installing the new hub assembly. Proper torque procedures should be followed during wheel and hub installation to help maintain bearing performance and ABS function.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA515036 unit is engineered for the listed applications using OE data to support fitment, performance, and longevity.
