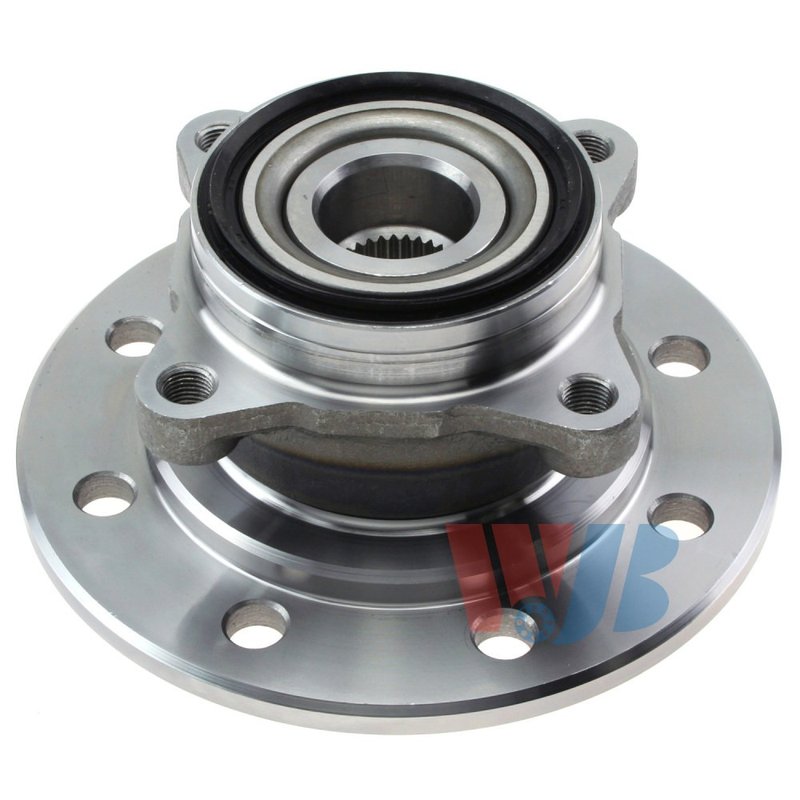

InMotion WA515037 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Chevrolet and GMC K3500

The InMotion WA515037 wheel bearing and hub assembly is a direct replacement for front applications on 1988-1994 Chevrolet K3500 and GMC K3500 trucks. Built from OE data and measurements, it is engineered for correct fitment, stable wheel support, and long service life.

Key Features

• Front wheel bearing and hub assembly for 1988-1994 Chevrolet K3500 and GMC K3500
• Part number WA515037 for easy identification and ordering
• 33-spline hub design
• 8 wheel studs with 15.3 wheel stud size
• 4 flange bolt holes, 165.1 bolt circle diameter, and 208.0 flange diameter
• Hub pilot diameter: 103.8; wheel pilot diameter: 116.55
• Flange offset: 68.34
• ABS sensor not included

Detailed Description

InMotion WA515037 is manufactured with precision processes and strict quality-control standards to match the original front hub assembly dimensions for Chevrolet K3500 and GMC K3500 trucks. The assembly is designed as a direct replacement for the OE part, using application-specific measurements to support proper wheel mounting, bearing function, and consistent driveline performance. If you need a front wheel bearing and hub assembly for a 1988-1994 Chevrolet K3500 or 1988-1994 GMC K3500, this part number WA515037 provides the key OE-style dimensions required for correct installation and fit.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Front wheel play or looseness caused by a worn hub assembly
• Noise from a failing wheel bearing and hub unit
• Uneven wheel mounting from damaged stud or flange surfaces
• Vibration or instability related to hub wear
• Fitment issues when replacing the original front hub on Chevrolet K3500 or GMC K3500 trucks

Installation Notes and Tips

Verify the front application, spline count, bolt circle diameter, flange dimensions, and stud configuration before installation. This assembly does not include an ABS sensor. Confirm the vehicle’s original hub specifications against WA515037 before final assembly, especially on 1988-1994 Chevrolet K3500 and GMC K3500 front axle applications.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support accurate fitment and dependable performance. The part is built as a direct replacement for the original front wheel bearing and hub assembly on the listed Chevrolet and GMC K3500 applications.
