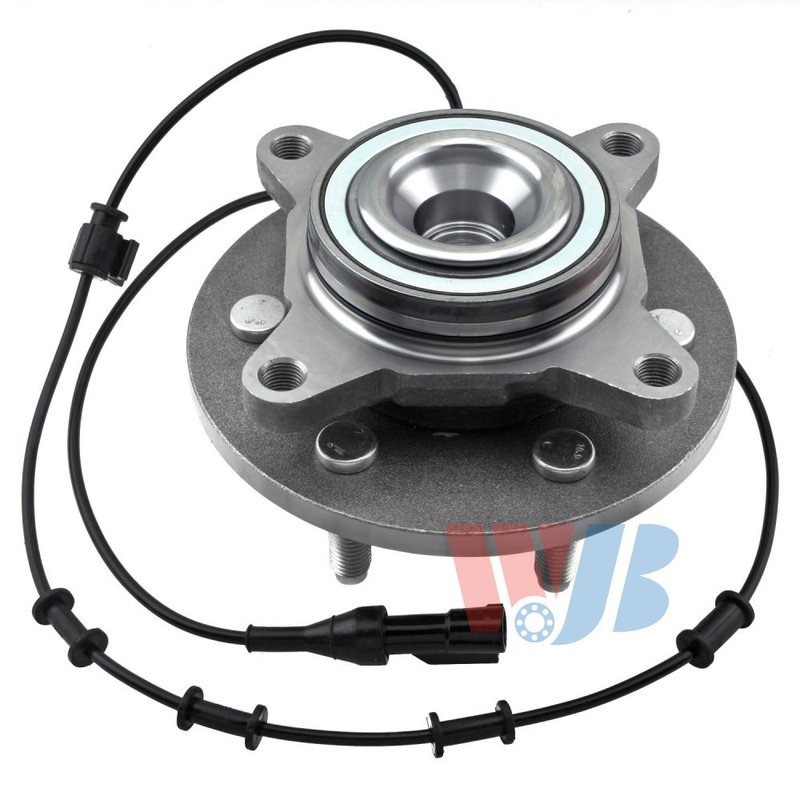

InMotion WA515042 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Expedition and Navigator

The InMotion WA515042 wheel bearing and hub assembly is built for front-end service on select Ford Expedition and Lincoln Navigator models. It is engineered from OE data for direct replacement fitment, with the hub, bearing, and ABS sensor integrated into one assembly for a cleaner repair.

Fits 2002-2006 Ford Expedition, front. Fits 2002-2006 Lincoln Navigator, front.

Key Features

• Direct replacement wheel bearing and hub assembly for the front axle
• OE-based dimensions for fitment, performance, and service life
• Integrated anti-lock brake sensor included
• 6 wheel studs with 4 flange bolt holes
• Hub pilot diameter: 99.3 mm
• Wheel pilot diameter: 86.8 mm
• Brake pilot diameter: 90.0 mm
• Bolt circle diameter: 135.0 mm
• Flange diameter: 183.0 mm
• Flange offset: 45.6 mm

Detailed Description

InMotion WA515042 is a front wheel bearing and hub assembly designed for 2002-2006 Ford Expedition and 2002-2006 Lincoln Navigator applications. Built with precision manufacturing and strict quality-control standards, this assembly follows OE measurements to match the original hub location, wheel mounting geometry, and ABS sensor integration. This part cross-references HUB274 for the same application.

For buyers searching for a 2002-2006 Ford Expedition front wheel hub assembly or a 2002-2006 Lincoln Navigator front hub and bearing replacement, WA515042 provides the core dimensions needed for proper installation and wheel alignment at the hub interface. The 6-stud pattern and 135.0 mm bolt circle support the original wheel mounting setup.

What It Helps Fix

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel end
• ABS warning light concerns related to the hub sensor
• Uneven wheel mounting caused by worn hub components
• Vibration or instability traced to a failing front hub assembly

Installation Notes and Tips

Confirm front-axle application before ordering and verify the hub dimensions against the original part. Inspect the mating surfaces, axle hardware, and brake components during replacement, and clear any ABS fault codes after installation if required by the vehicle.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measured specifications to support correct fitment on the listed Expedition and Navigator applications. The part is produced under strict quality-control criteria for consistent replacement performance.
